Honda CB 1000 Hornet

From a press release issued by Honda:

Powered by the 17YM CBR1000RR Fireblade’s formidable engine – with 111.6kW power and 104Nm torque – and built as a potent cocktail of strong four-cylinder performance and ultra-sharp handling, the CB1000 Hornet delivers maximum riding fun from city block to snaking back road.

Throttle By Wire (TBW) delivers 3 default riding modes with preset combinations of Power, Engine Brake, Wheelie Control and HSTC settings, plus 2 USER options allowing the rider to choose their own preferred settings. The optically bonded five-inch TFT screen offers intuitive usability, clarity even in bright light and easy Honda RoadSync smartphone connectivity through the simple switchgear on the left handlebar.

Stripped back style drips with pure aggression, led by the concentrated stare of twin LED headlights. The new twin-spar frame is also used as a design feature, and the subtly blacked out 41mm Showa SFF-BP USD front forks and Showa rear shock deliver adjustable, high-quality suspension control. Four-piston radial-mount front brake calipers work 310mm floating discs while CBR1000RR-R-inspired cast aluminium wheels mount 120/70-ZR17 and 180/55-ZR17 front and rear tyres.

The CB1000 Hornet’s huge performance potential, high-quality specification, compact dimensions and refreshing new style make it a hard bike to ignore, especially for those riders with a mid-capacity naked bike looking for their next step up the ladder.

The 25YM CB1000 Hornet will be available in the following colour options:
- Grand Prix Red
- Mat Iridium Gray Metallic
- Pearl Glare White

Key Features
Engine
- CBR1000RR-derived four-cylinder engine with Throttle By Wire
- Smooth mid-range delivery and hard-hitting top-end power
- Revised gear ratios for acceleration, assist/slipper clutch control

At its core, this is a Fireblade powerplant. Drawn from the 17YM CBR1000RR, the 1000cc, DOHC four-cylinder engine provides an exhilarating dose of power and torque, with maximum figures of 111.6kW @ 11,000rpm and 104Nm @ 9,000rpm.

This engine is tuned to deliver torque with a heavyweight punch in the low to mid-range, with performance and throttle response that works smoothly around town. And, out on the open road, the top-end is thrilling, with an exhilarating rush of power delivery at higher rpm - all the way to the redline.
A variety of detail work has gone on in the engine to create the change in character and delivery. Inlet and exhaust valve lift and timing have been developed alongside the camshafts to ‘pump’ more efficiently across the rev-range. The inlet valve material is steel, and the lightweight die cast piston shape has been optimised for strength and durability. The engine covers shrink-wrap the muscular powerplant; the ACG cover is aluminium as is the oil pan.

The transmission has also been matched to the Fireblade heart. Gears two through five have been optimised for acceleration to match the engine’s all-round drive while sixth offers relaxed highway cruising. An assist/slipper clutch helps manage rear wheel hop under hard, rapid downshifts and braking.

Bore and stroke are set at 76mm x 55.1 mm with compression ratio of 11.7:1. A 44mm diameter throttle body feeds air/fuel mixture into large diameter inlet ports and carefully shaped combustion chambers. The exhaust adds to the CB1000 Hornet’s mid-range muscle and light weight. It’s a 4-2-1 design, which features OBD2 sensors and a 7.1L muffler volume.

The engine returns fuel efficiency of 16.9km/L and the fuel tank holds 17 L.

Engine Electronics
- Three default rider modes plus two USER custom options
- Three levels of Power and Engine Brake
- Four levels of Honda Selectable Torque Control and Wheelie Control

Throttle By Wire (TBW) allows the rider maximum control over the CB1000 Hornet’s powerful engine via 3 default riding modes with preset combinations of Power, Engine Brake and HSTC (with integrated Wheelie Control) settings, plus two user defined options that allow the rider to choose their own preferred mix of settings. Selection is managed via the left handlebar and TFT screen.

There are three levels of Engine Power (P) and Engine Brake (EB), and 4 levels of Honda Selectable Torque Control (HSTC) available; HSTC can also be switched off.

RAIN mode employs the lowest Power setting for the least aggressive power delivery, medium amount of EB and high HSTC. The lower levels of power and torque delivery are focused on the first 3 gears.
STANDARD mode uses the middle setting for Power, HSTC and EB. It softens the power delivery a little out of first and second gear and uses a power delivery just below that of SPORT mode, with reduced torque at partial throttle openings.

SPORT uses the highest Power delivery and lowest levels of EB and HSTC to deliver 100% performance through all six gears, maximum torque and power at all throttle positions and minor intervention from HSTC.

USER modes 1 and 2 allow the rider to choose between the settings for each parameter and save the setting for future use.

Chassis
- New steel twin-spar frame holds the weight forward, with high torsional rigidity to improve handling agility
- Fully adjustable 41mm Showa SFF-BP USD forks, Showa Pro-Link rear shock
- Four-piston, radial-mount front brake calipers and floating discs
- 120/70-ZR17 and 180/55-ZR17 front and rear tyres

The frame is a new, one-piece steel twin-spar unit that has been designed to complement the engine and – through narrow pivot point width – deliver the classic slim-waisted Hornet feel as well as a 70% increase in torsional rigidity compared to the 24YM CB1000R, for sharper turn in and side-to-side handling agility. Rear rubber engine mounting matched to carefully shaped front mounting plates minimise vibration and increase feel.

Rake and trail are set at 25° and 98mm, with wheelbase of 1,455mm. For reduced yaw inertia and therefore agile and light handling, the centre of gravity is set forward toward the front wheel. A new design, the engine is forward set. The rear shock and battery are located ‘forward’ to further aid agility, with the airbox sat above the cylinder head rather than behind it. Weight distribution is a forward-focussed 51.2%/48.8%. Kerb weight is set at 211kg.

The riding position is pure streetfighter. Seat height is 809mm, and the handlebar position is set up and back, paired to a sporty footpeg position and a rider triangle with relatively upright upper body position.
Showa 41mm Separate Function Fork Big Piston (SFF-BP) USD forks are adjustable for spring preload and rebound/compression damping. The single tube separate-pressurisation Showa rear shock operates through Pro-Link and adjusts for preload via cam; rebound damping is adjustable. A cast aluminium swingarm – 619.1mm long – provides tuned rigidity balance for optimum grip and feel.

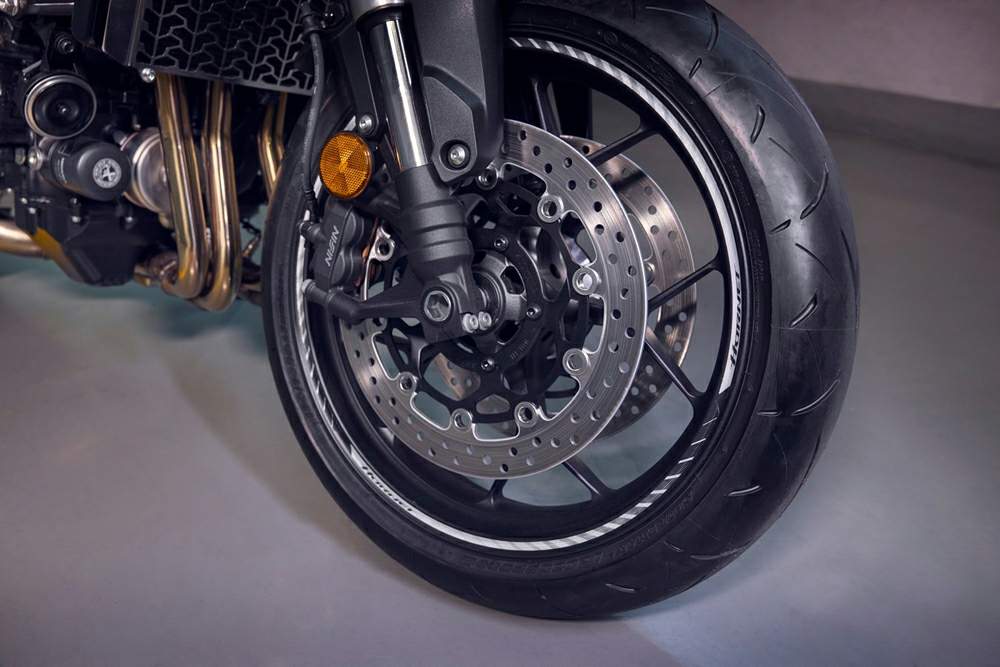

A radial master cylinder operates the dual, radial-mount Nissin four-piston calipers which grip 310mm floating discs. The rear 240mm disc employs a Nissin single-piston caliper.

5Y-spoke design wheels are drawn from the concept of the CBR1000RR-R Fireblade and are cast in lightweight aluminium. Tyres are sized 120/70-ZR17 front and 180/55-ZR17 rear.

Styling & Equipment
- Twin LED projectors lead stripped-back style and Hornet signature fuel tank
- Five-inch TFT screen with full Honda RoadSync smartphone connectivity
- Honda’s Emergency Stop Signal (ESS) integrated

Designed in Japan, the CB1000 Hornet’s transformative looks are driven by two words: AGGRESSIVE and PURE. Blending a sensual dynamism with balance of mass, for the design team behind it the big Hornet’s stripped back style is very much an ‘expression of non-decorative aggression’.

Led by the piercing gaze of super-compact dual LED projector headlights (all lighting is LED) the Hornet-signature fuel tank – giving the impression of wings folded forward – is broad shouldered up front but tapers radically to the rear, mirrored by the minimal seat unit that underlines the traditional narrow-waisted Hornet look. The subtly blacked out frame is also used as a design feature, underpinning the lines – as does the trellis-style rear subframe. The engine, wheels and swingarm are also finished in black. Handlebars are a new tapered steel design.

Premium technology, in the form of a five-inch full colour TFT screen, uses optical bonding to improve visibility in bright sunlight. By sealing the gap between the cover glass and TFT screen with resin, glare is reduced, and backlight transmittance improved. It’s customisable between Bar, Circle and Simple display patterns and offers the IOS/Android smartphone connectivity of Honda RoadSync.

This feature – alongside a simple, easy-to-use, backlit four-way toggle-switch on the left handlebar – allows straightforward, on-screen turn-by-turn navigation as well as the option (via a Bluetooth helmet headset) for the rider to make calls or listen to music. All an owner has to do is download the Honda RoadSync app from either the Play Store or the App Store, connect to the CB1000 Hornet, and go.
The indicators also incorporate an Emergency Stop Signal (ESS) function: Under hard braking, the hazard lights flash to warn other road users a hard stop is in process.

Accessories
A range of Genuine Honda Accessories are available for the CB1000 Hornet. These are available in combinable packs or individually:

Style Pack
Designed to add even more style to the Hornet package. The Alcantara Rider’s Seat adds premium feel alongside an Oil Filler Cap, Handlebar Holder, Radiator Grill and Rider Footpegs. Wheel Stripes are the finishing touch.

Sport Pack
Pumps up dynamism with Quickshifter, instrument Flyscreen, Under Cowl and Seat Cowl. A Tank Pad adds practical protection.

Comfort Pack
Increased cold weather rideability from Heated Grips plus the flexible, easy to attach carrying capacity of a Tank Bag and Rear Seat Bag.
