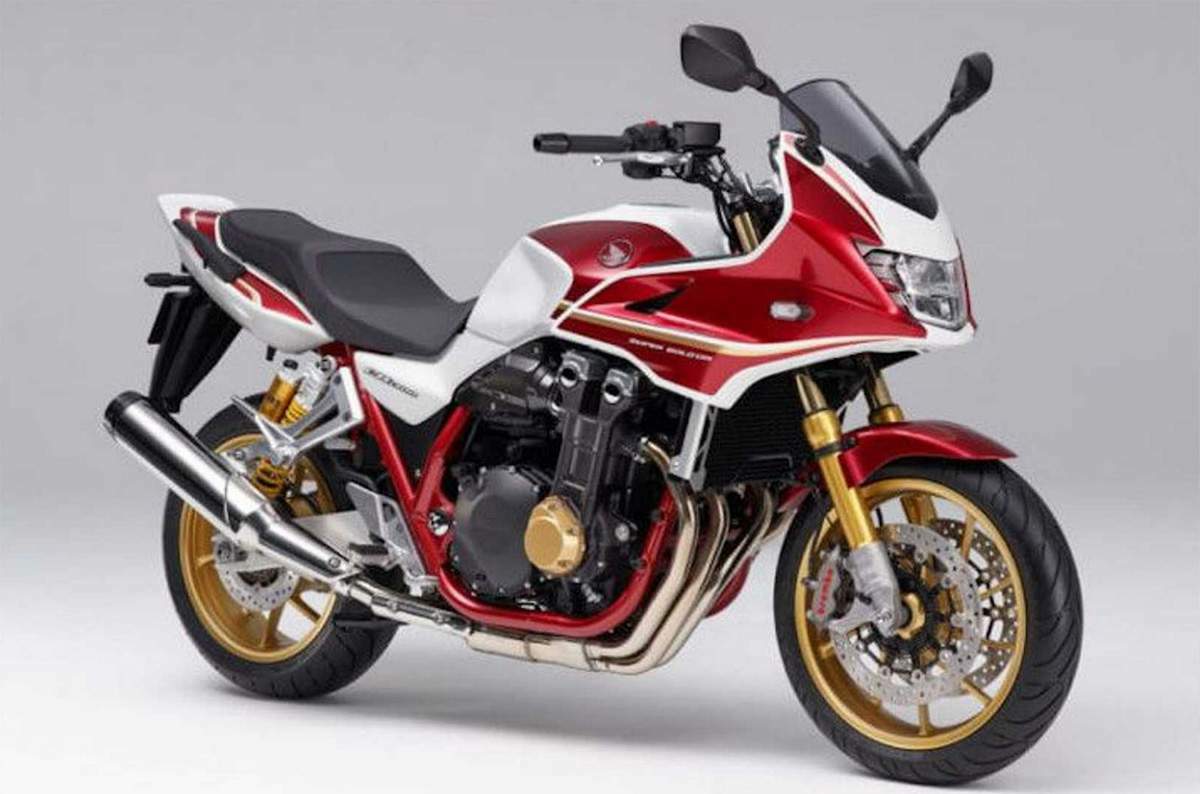

Honda CB 1300S Super Bol D'or 30th Anniversary Edition

.

Make Model

Honda CB1300S Super Bol D'or 30th Anniversary Edition

Year

2023

Engine

Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

1284 cc / 78.3 cu-in
Bore x Stroke 78 x 67.2 mm
Cooling Sysstem Liquid cooled
Compression Ratio 9.6:1

Induction

PGM-FI fuel injection with 4 x 36mm throttle bodies

Ignition

Analogue CDI (Capacitive Discharge Ign.)
Starting Electric

Max Power

114 hp / 83.2 kW @ 7500 rpm

Max Torque

117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm
Clutch Wet multi-plate coil spring

Transmission

6 Speed
Final Drive Chain

Front Suspension

43mm cartridge style forks

Rear Suspension

Twin shocks with adjustable spring preload

Front Brakes

2x 310mm discs 4 piston calipers, ABS

Rear Brakes

Single 256mm  disc 1 piston caliper, ABS

Front Tyre

130/70 ZR17

Rear Tyre

190/60 ZR17
Rake 25.0°
Trail 99 mm / 3.9 in
Dimensions Length 2220 mm / 87 in
Width     790 mm / 31 in
Height 1120 mm / 44 in
Wheelbase 1510 mm / 59.4 in
Seat Height 790 mm / 31.1 in  adjustable, lowest setting.
Ground Clearance 125 mm / 4.9 in

Wet Weight

261.0 kg / 575.4 lbs

Fuel Capacity

21 Litres / 5.5 US gal

.

Honda Japan released a limited edition of only 720 units of the CB1300 Super Bol d’or SP and CB1300 Super Four machines exclusive to the Japanese Market.

In celebration of the CB1300’s 30th anniversary, these models are offered in special trim to commemorate the original Project Big-1 which was released in 1992.

Both models will be available in the same Pearl Hawks Eye Blue colourway, and come with a sleek, blacked-out crankcase, with special gold accent on the bodywork, a 30th Anniversary insignia on the top of the the fuel tank and additionally the bikes get gold-painted wheels.

The CB1300 is powered by a fuel-injected 1,284cc inline-four engine producing 114 horsepower.  Other fancy features include Öhlins suspension components on both the front and rear of the bike, as well as dual Brembo radially mounted, four-piston calipers on the front wheel.

Other features include full LED lights, heated grips, and Type-C USB charger which all come as standard.
