Honda CBR 1000RR-SP Fireblade

.

Make Model

Honda CBR 1000RR-SP Fireblade

Year

2019

Engine

Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

999 cc / 60.9 in cc / 60.9 cu-in
Bore x Stroke 76 x 55.1 mm
Compression Ratio 13.0:1
Cooling System Liquid cooling
Lubrication Wet sump
Engine Oil Synthetic, 10W/40

Induction

Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors

Ignition

Computer-controlled digital transistorized with 3-D mapping
Starting Electric

Max Power

141 kW / 189 hp @ 13000rpm

Max Torque

116 Nm / 85.5  lb-ft @ 11000 rpm
Clutch Wet, multiplate with diaphragm spring

Transmission

6 Speed
Final Drive #530 O-ring - sealed chain
Frame Diamond; aluminium composite twin spar

Front Suspension

Telescopic inverted fork with an inner tube diameter of 43mm, and a NIX30 Smart-EC Öhlins Front Fork with preload, compression and rebound adjustments

Front Wheel Travel 120 mm  / 4.7 in

Rear Suspension

Unit Pro-Link with gas-charged TTX36 Smart-EC Öhlins damper featuring preload and compression and rebound damping adjustment

Rear Wheel Travel 132 mm / 5.2 in

Front Brakes

2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.

Rear Brakes

Single 220mm disc, Combined ABS and sintered metal pads
ABS Electronically controlled ABS

Front Tyre

120/70ZR17 58W

Rear Tyre

190/50ZR17 73W
Rim Size Front 17 x MT3.50
Rim Size Rear 17 x MT6.00
Rake (Caster Angle) 23°2
Trail  96.2 mm /  3.8 in
Dimensions Length 2005 mm / 81.7 in
Width  720 mm / 32.3 in
Height 1125 mm / 44.7 in
Wheelbase 1405 mm / 55.3 in
Seat Height 820 mm / 32.3 in
Ground Clearance 129mm / 5.1 in

Wet Weight

195 kg / 430 lbs

Fuel Capacity

16 Litres / 4.2 US gal
.

Great riders are always pushing their limits. And great superbikes should do the same. That means your bike has to offer more than just a big engine—it also has to have great handling and superior power management. That’s exactly what our 2019 CBR1000RR and CBR1000RR SP deliver. New this year: an even more advanced Honda Selectable Torque Control (HSTC) complete with our new, multi-level selectable wheelie control. Now discerning riders can connect with their bike and the track like never before.

The CBR1000RR is light, powerful and undeniably fast, making it a beast on the street and in the canyons. If the track is more your specialty, then you’ll want the CBR1000RR SP. World championships have been won on bikes that the SP would leave in its dust.

All 2019 CBR1000RR models feature the same highly developed engine, chassis, and aerodynamic bodywork.

CBR1000RR SP

Designed for the demanding trackday rider, the SP model adds Öhlins Smart electronic control suspension, a lightweight lithium-ion battery, titanium muffler and more.

Performance

Honda Selectable Torque Control

With Honda Selectable Torque Control (HSTC), we’ve got your back, but you’re in control. Here’s how it works: The system automatically adjusts engine power and grip to optimize torque at the rear wheel, reducing rear-wheel slip. You get your choice of five power curves, ten torque-control levels, three engine-braking levels, and now three selectable levels of wheelie control so it’s easier than ever to dial your bike in at the track.

Throttle by Wire

The CBR1000RR’s throttle-by-wire system works in concert with our Honda Selectable Torque Control. With the two, you get your choice of three engine power-delivery modes, plus two which you can custom program yourself.

Hi-Performance Four-Cylinder Engine

Featuring high-compression 13:1 pistons, the CBR1000RR revs like only a flat-plane inline-four can. It also makes ten horsepower more than our previous generation of CBR10000RR.

Brembo Monobloc Front Calipers

The CBR1000RR SP’s race-proven, radial-mount Brembo monobloc calipers are light, but they provide exceptional stiffness and excellent braking performance.

Honda Electronic Steering Damper (HESD)

Most steering dampers only sense handlebar-deflection speed. The Honda Electronic Steering Damper (HESD) is way more sophisticated. It also detects vehicle speed, and adjusts damping proportionally. That helps maintain low-speed maneuverability while providing excellent, predictable high-speed handling.

Dual-Stage Fuel Injection

The CBR1000RRs feature two sets of injectors per cylinder for both low- and high-rpm performance, instantaneous high-rpm response and great low-rpm metering and clean running. Refined EFI settings make the engine even more manageable, with smoother throttle response specifically at smaller throttle openings.

Handling

Öhlins Smart EC Suspension

The CBR1000RR SP features an Öhlins Smart electronic control suspension system. It comes with three pre-set suspension modes, plus two “blank” user-programmable modes. It’s fully adjustable, semi-active, truly premium and track-ready — a huge upgrade from what you’d normally find on a streetbike.

Gyro-Assisted ABS

The CBR1000RR SP comes with anti-lock brakes, and they’re available on the standard CBR1000RR as an option. But these brakes go one better, including rear-wheel lift analysis (think hard stopping here), along with a program that takes lean angle into account.

Slimmer Ergonomics

These CBR1000RRs are much slimmer than previous models in the tank/seat junction area, and also in the upper cowl (more than 24mm trimmer). This improves aerodynamics, and the narrow tank makes it easier to tuck in.

Titanium Fuel Tank

The CBR1000RR SP features a radical, thin-wall titanium fuel tank. Filled to capacity, the tank is almost four and a half pounds lighter than our prior SPs, but still offers plenty of operational range.

Lightweight Sub-Frame

Almost a full pound lighter than our previous generation, the CBR1000RR sub-frame further refines our mass centralization efforts. Light is always right, and these models are the lightest CBR1000RRs we’ve ever produced.

Engineering

Assisted Slipper Clutch

Superbikes can deliver a great deal of back-torque through the driveline, upsetting handling—not the CBR1000RR models. Its Honda-designed assisted slipper clutch is the same type used on our MotoGP bikes. The design does away with the need for heavy clutch springs, ensuring full power transmission with smooth shifting and a light clutch pull at the lever.

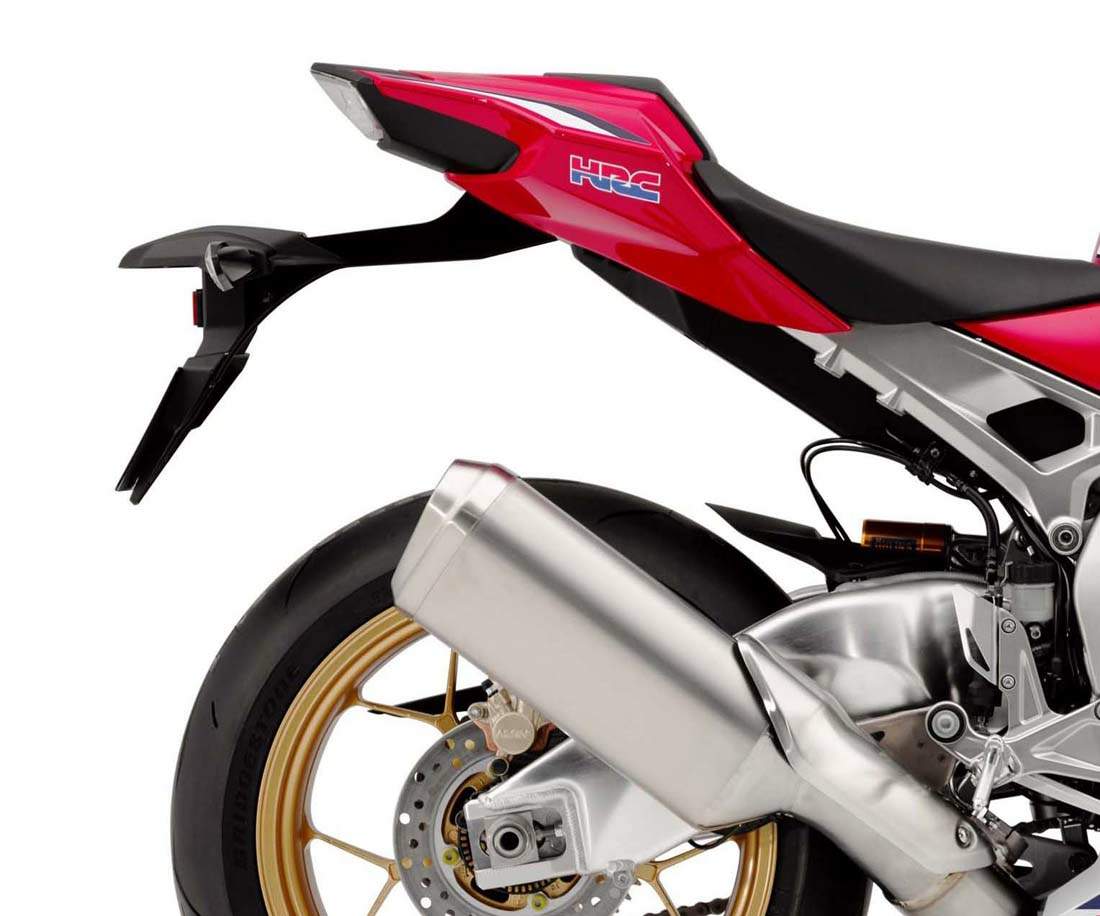

Titanium Muffler

MotoGP bikes use titanium for their mufflers, and so does the CBR1000RR SP. It’s a significant weight savings.

Premium Wheels

You’ll notice that the CBR1000RR SP features five-spoke wheels. They’re light and strong—more than a pound lighter than the previous six-spoke wheels.

Efficient Radiator Design

Almost an inch narrower than on our previous-generation CBR1000RR, and featuring a high-density core. Plus the radiator tucks in tighter and cools just as efficiently.

Full LED Lighting Package

Headlights, tail lights, turn signals—with the CBR1000RRs it’s all done with lightweight, efficient, cool LEDs.

Thin Film Transfer Display

TFT means an instrument display that’s lighter and easier to read than previous LCD designs. It’s a first for Honda, and it’s made its premiere on the CBR1000RRs.

Lithium Ion Battery

The CBR1000RR SP comes standard with a high-tech lithium-ion battery that is just half the weight of the previous lead-acid battery—a huge savings!

First introduced overseas in 1992 (and in the U.S. shortly thereafter), Honda’s largest CBR has continuously reset expectations of what an open-class sport bike should be, with a holistic “Total Control” design approach that focuses on cornering, acceleration and braking, with wheelie control added for 2019. That practice is taken to the next level with the new-generation CBR1000RR SP, which has a high-performance power-to-weight ratio. Fully loaded with a cutting-edge electronics package, the CBR1000RR SP is underpinned by the “Next Stage Total Control” concept, with nimble handling and amazing acceleration.

Engine/Drivetrain

  • Valve lift and timing are optimized for high engine speeds, with a peak of 13,000 rpm.
  • Thickness of different areas of pistons are optimized for minimum weight, and compression ratio is 13.0:1.
  • Piston rings have Diamond Like Carbon (DLC) coating for a superb sealing property.
  • Air-intake duct and air box design minimizes air resistance. High fuel-discharge pressure promotes fuel atomization and maximizes combustion efficiency, while throttle response is maximized by intake funnels with a slash-cut design.
  • Magnesium construction of the oil pan and ignition cover contribute to a low engine weight.
  • Slipper clutch has a low clutch-spring load. Die-cast aluminum assist cams (transmitting & receiving) contribute to a low weight, while optimized clearance between the cams make for a good clutch-lever feel.
  • On CB1000RR SP, lightweight titanium muffler helps concentrate mass. Its double pipe structure enables effective utilization of the expansion chamber, while the variable exhaust valve achieves a throaty sound and good power delivery across the rpm range.
  • Derived from the RC213V-S, the Honda Selectable Torque Control (HSTC) measures front and rear wheel speeds and body roll angle, and also uses attitude-detection technology developed for ASIMO.
  • Wheelie control is added for 2019, bringing an additional level of control and an additional option on the meter.
  • The slip rate of the rear wheel is restrained during cornering and acceleration; torque is controlled based on vehicle roll angle, such as when turning, contributing to a sense of security during the riding experience.
  • The rider can choose how strongly the engine brake is applied when the throttle is closed during deceleration; three levels of adjustability are available, depending on rider preference.
  • A quick shifter allows shifting up or down without use of the throttle or clutch; the driving load on gears is reduced during shifting, simplifying the rider’s shifting process on the track, on winding roads or in traffic. For both upshifting and downshifting, feel can be adjusted between three levels.
  • Adapted from the RC213V-S, the throttle-by-wire system (a first on a straight-four Honda) features a built-in Accelerator Position Sensor and improves response and rideability.
  • Full-color thin-film-transistor liquid crystal meter features Street, Circuit, and Mechanic displays and is designed to not be intrusive for the rider.
  • A five-level Power Selector enables on-the-fly adjustment of riding modes, HSTC and suspension electronics, adapting the machine to changing conditions.
  • Lightweight lithium-ion battery helps centralize mass.

SUSPENSION

  • Optimized frame-wall and swingarm-section thicknesses for light weight and appropriate flex characteristics.
  • Lightweight die-cast aluminum subframe.
  • Wheels have five Y-spokes for aerodynamic stability, while thickness is minimized for low weight.
  • Radiator has a high-density core that achieves high heat dissipation while allowing a narrow width and low weight.
  • Minimalist, aggressive, aerodynamic design achieves narrow widths at front of fairings.
  • World’s first titanium fuel tank for a mass-production road bike is manufactured using ultra-deep drawing process, achieving low weight and high mass centralization.
  • The CBR1000RR SP has semi-active Öhlins Electronic Control (EC) suspension, with 43mm NIX 30 EC fork and a TTX 36 EC shock. Settings are optimized electronically to suit the conditions.
  • Standard version has Showa 43mm large-volume BPF inverted fork and Balance Free Rear Cushion (BFRC) shock.
  • Available anti-lock braking system (ABS) features rear-lift control (RLC), for smooth, effective braking on corner entry; braking force is controlled according to lean angle, and hard trail braking is allowed.
  • On standard version, highly rigid Tokico four-piston opposed radial-mounted front-brake calipers with high-friction brake pads provide strong stopping power. SP version has Brembo brakes.
  • Meets current CARB and EPA standards.
  • Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
