Honda CB1100F Bol D'or

.

Make Model

Honda CB 1100F Bol D'or

Year

1983

Engine

Four stroke, transverse four cylinders, DOHC, 4 valve per cylinder.

Capacity

1062 cc / 64.8 cu-in
Bore x Stroke 70 x 69 mm
Cooling System Air cooled
Compression Ratio 9.7:1

Induction

4x 33mm Keihin carburetors

Ignition

Electronic

Starting

Electric

Max Power

110 hp / 81 kW @ 8500 rpm

Max Torque

98 Nm / 72.2 lb-ft @ 7500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Adjustable telescopic hydraulic fork.

Rear Suspension

Swinging arm fork with adjustable Telehydraulic shocks absorbers.

Front Brakes

2x 296mm discs 2 piston calipers

Rear Brakes

Single 296mm disc  2 piston caliper

Front Tyre

100/90 V18

Rear Tyre

130/90 V17
  Length 2260 mm / 89.0 in
Width 805 mm / 31.6 in
Height 1125 mm / 44.2 in
Wheelbase 1520 mm / 59.8 in
Seat Height 795 mm / 31.2 in

Dry Weight

243 kg / 533 lbs
  266.0 kg / 586.4 lbs

Fuel Capacity

20 Litres / 5.2 US gal

Consumption Average

40.4 mp/g

Standing ¼ Mile

11.1 sec  /  122.4 mp/h

Top Speed

223 km/h / 138.5 mph

Road Test

Cycle World 1983

Cycle 1983

.

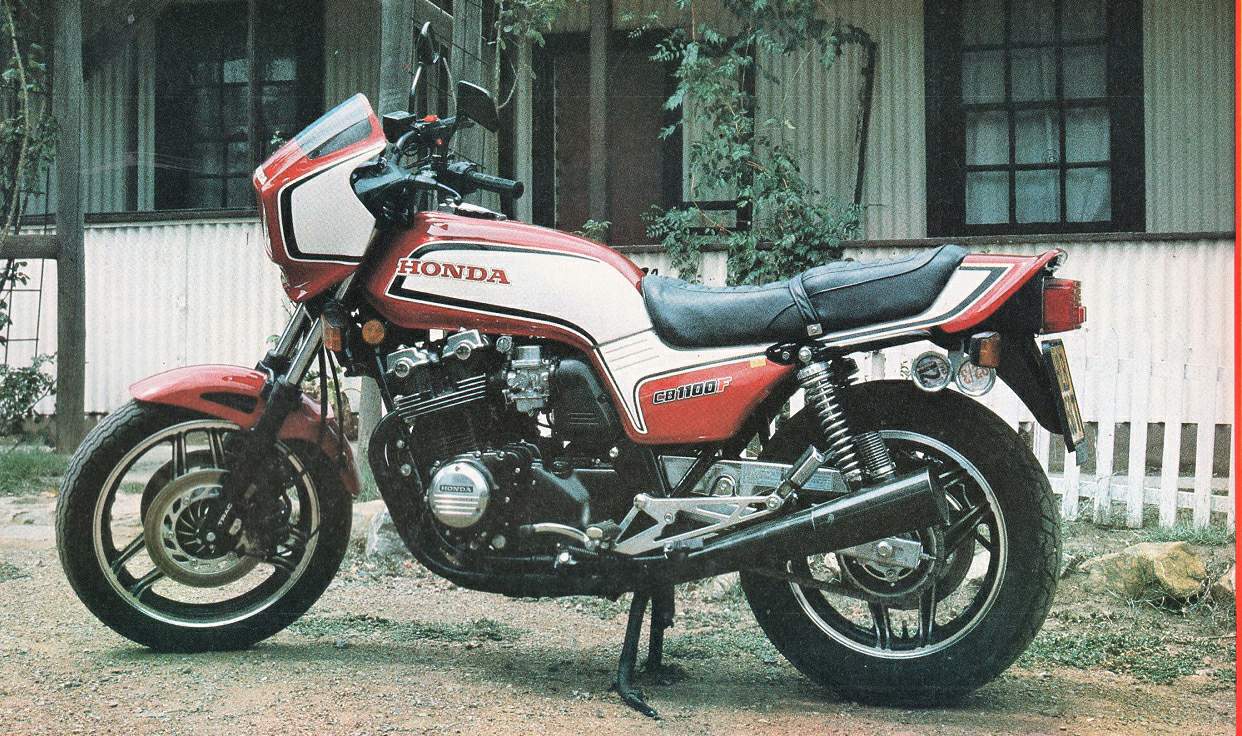

In 1983 Honda released the CB1100F, based on the CB900F and the CB1100R. Besides a distinctive-to-the-1100f paint scheme, it used hotter cams, larger pistons, better carburetion in the form of four Keihin 34 mm CV, and a redesigned combustion chamber. The CB1100F produced 108 bhp @ 8500 rpm. It also had increased rake and the dash featured a 150 mph or 240 km/h speedometer and adjustable two-piece handlebars. The tubeless-tire wheels were new also, 18-inch x 2.50-inch front and 17-inch x 3-inch rear.[2] Performance was pace setting. Cycle World tests at 11.13 seconds/120.48 mph quarter mile and 141 mph half mile earned it the designation of "fastest stock bike ever tested"

The CB1100F was available in different markets, such as USA, Canada, Europe, and Australia from 1982 through 1984. In the USA, a quarter-fairing for wind deflection (and looks), and cast single piece wheels were offered. The other markets had not the fairing, and the wheels were gold "boomerang" Comstars, similar to the ones on the Honda CB1100R, and the control cables were routed above, rather than below, the handlebars. The riding position was more sporty than the US model, with rearset footpegs and controls as well as lower two-piece clip-on handlebars. These different parts were originally offered through US dealers as a complete sport, or "continental" kit, and now command a price premium in the US as owners seek to upgrade their machines.
