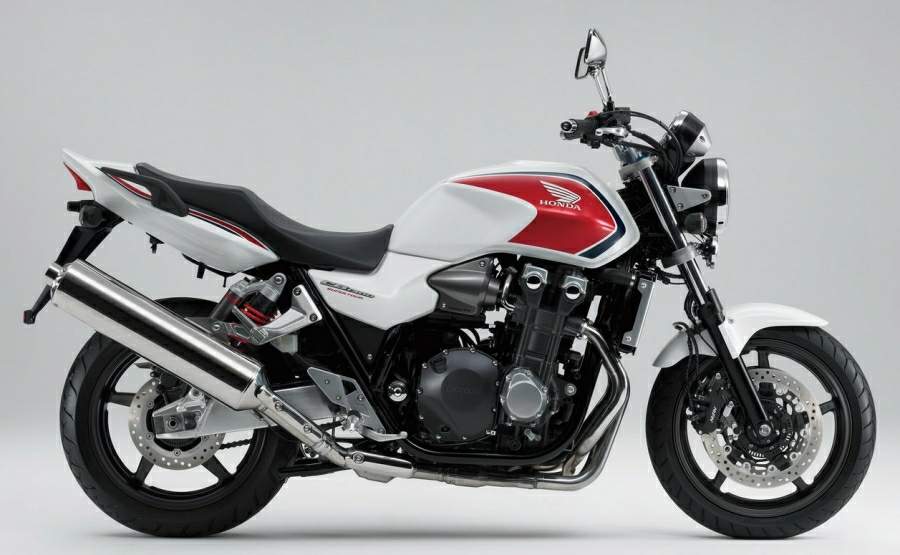

Honda CB 1300 Super Four

.

Make Model

Honda CB 1300 Super Four

Year

1998 - 99

Engine

Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

1284 cc / 78.3 cu-in
Bore x Stroke 78 x 67.2 mm
Cooling Sysstem Liquid cooled
Compression Ratio 9.6:1

Induction

PGM-FI fuel injection with 4 x 36mm throttle bodies

Ignition

Digital
Starting Electric

Max Power

114 hp / 83.2 kW @ 7500 rpm

Max Torque

117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm
Clutch Wet multi-plate coil spring

Transmission

5 Speed
Final Drive Chain

Front Suspension

43mm cartridge style forks

Rear Suspension

Dual shocks with adjustable spring preload

Front Brakes

2x 310mm discs 4 piston calipers, ABS

Rear Brakes

Single 256mm  disc 1 piston caliper, ABS

Front Tyre

130/70 ZR17

Rear Tyre

190/60 ZR17
Rake 25.0°
Trail 99 mm / 3.9 in
Wheelbase 1510 mm / 59.4 in
Seat Height 790 mm / 31.1 in  adjustable, lowest setting.
Ground clearance 130 mm / 5.1 in

Dry Weight

224 kg / 494 lbs

Wet-Weight

246 kg / 542 lbs

Fuel Capacity

21 Litres / 5.5 US gal

Consumption Average

16.1 km/lit

Standing ¼ Mile

11.1 sec

Top Speed

231.8 km/h
.

The Honda CB1300 Super Four is a CB series 1,284 cc (78.4 cu in) standard Honda motorcycle released in 1998 as a successor to the CB1000 Super Four. Its engine, with minor modifications, came from the X4, released in the previous year. In 2003, the CB1300 received a slightly different engine which lacked cooling fins.

Beginning in 2005, Honda offered two versions of the CB1300: the standard, unfaired model, and the Super Bol D'Or (in Europe the CB1300S), with half fairing.
