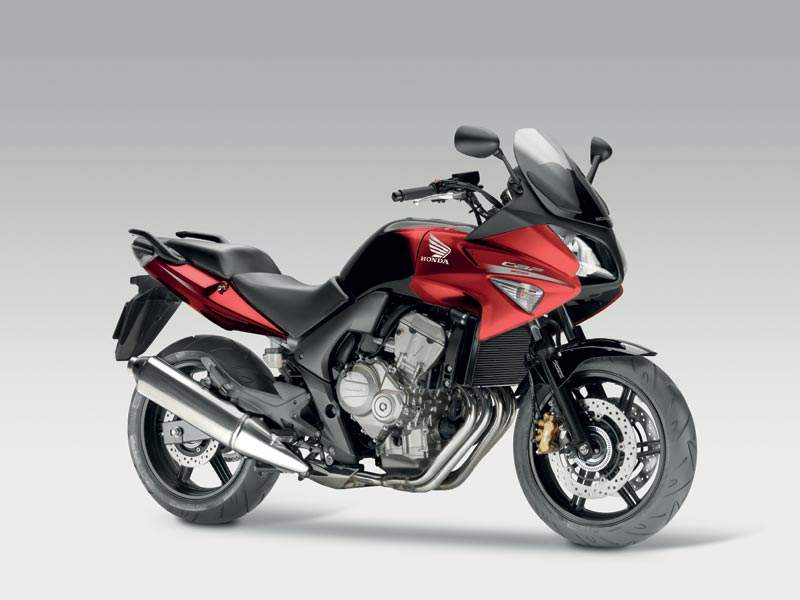

2010 Honda CBF 600S

Make Model	Honda CBF 600S
Year	2010 - 11
Engine	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity	599 cc / 36.5 cu-in
Cooling System	Liquid cooled
Bore x Stroke	65 x 45.2 mm
Compression Ratio	11.6:1
Induction	Electronic fuel injection 32mm throttle body
Ignition	Computer-controlled digital transistorized
Starting	Electric
Max Power	76.4 hp / 57 kW @ 10500 rpm
Max Torque	58 Nm / 42.7 lb-ft @ 8000 rpm
Transmission	6 Speed
Final Drive	Chain
Front Suspension	41mm telescopic fork
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Monoshock damper with 7-step adjustable preload
Rear Wheel Travel	125 mm / 4.9 in
Front Brakes	2x 296mm discs 2 piston calipers (ABS)
Rear Brakes	Single 240mm disc 1 piston caliper (ABS)
Wheels	U-section twin 6-spoke cast aluminium
Front Tyre	120/70 ZR17
Rear Tyre	160/60 ZR17
Dimensions	Height 1240 mm / 48.8 in Length 2160 mm / 85.0 in Width 765 mm / 30.1 in
Wheelbase	1490 mm / 58.7 in
Ground Clearance	130 mm /5.1 in
Seat Height	785 mm / 30.9 in
Dry Weight	218 kg / 480 lbs
Fuel Capacity	20 Liters / 5.2 US gal
Consumption Average	20.0 km/lit
Standing ¼ Mile	12.8 sec
Top Speed	202.4 km/h / 125.8 mph

The semi-Naked CBF600S is renowned for its ability to deliver comfort, performance and ease of handling in all kinds of situations. Crowned by a beautifully integrated, frame-mounted cowl that offers wind protection at higher speeds, it has its own distinctive and aerodynamic elegance.
With a compact fuel-injected engine based on the one powering the race-winning CBR600RR, it is capable of powerful acceleration. Its powerband is wide and easily accessible, offering a smooth ride with plenty of thrills when required.
The engine is housed in a lightweight, rigid die-cast aluminium frame that contributes to sharp and responsive handling. The seat is adjustable with a smooth, narrow shape that provides superior comfort and an easy reach to the ground for any rider. The suspension systems are also adjustable offering a comfortably tailored all-round riding package. Braking is smooth and powerful, and the Combined ABS offers the extra reassurance of Honda’s Combined Antilock Braking System.
The 20L fuel tank provides touring range and the motorcycle’s strong seat rail accommodates the easy mounting of optional luggage. Its practical instrument panel features HISS and FI indicators, a fuel gauge and an ABS indicator.

Fun to ride, eager to tackle any task and offering a comfortable ride, the CBF600S is a reliable partner on any road, in any weather.

Colours
- Pearl Cool White/ Black
- Pearl Siena Red/ Black
- Dragon Green Metallic/ Black
- Pearl Nightstar Black

Main features

- Lightweight and compact fuel-injected 599cc DOHC inline-four engine is tuned for the most comfortable balance of performance and acceleration.
- Sleek, half-faired design features air-directing ports that deflect air around the rider for better comfort while also enabling lighter, easier handling.
- Three-position height-adjustable seat offers more comfort for riders of different sizes.
- Advanced die-cast aluminium frame keeps weight to a minimum while maintaining optimal rigidity for confident and sporty handling.
- Compliant 41mm telescopic front fork and Monoshock rear damper deliver smooth, confident handling.
- Dual-piston caliper dual front disc brakes with 296mm floating rotors and a single-piston caliper rear disc brake provide strong, responsive stopping power.
- Combined-ABS version provides both the smooth operating ease of Combined brakes and the control of an advanced Antilock Brake System.

HECS3 oxygen-sensing catalytic converter system minimises harmful exhaust emissions, ensuring full EURO-3 compliance.
