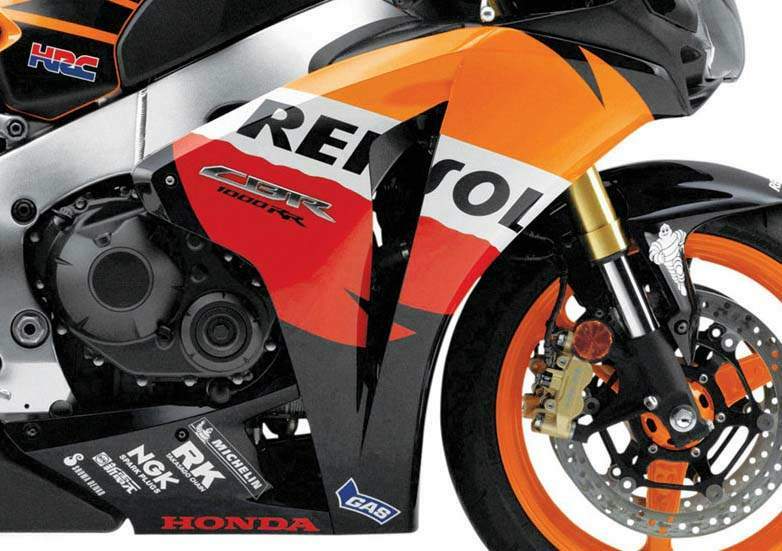

Honda CBR 1000RR Fireblade Repsol Replia

.

Make Model

Honda CBR 1000RR Fireblade Repsol Replica ABS

Year

2009

Engine

Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

998 cc / 60.9 cu-in
Bore x Stroke 76 x 55.1 mm
Compression Ratio 12.3:1
Cooling System Liquid cooling
Lubrication Wet sump
Engine Oil Synthetic, 10W/40

Induction

PGM-DSFI electronic fuel injection 46mm Throttle Bore

Ignition

Computer-controlled digital transistorised with electronic advance
Spark Plug NGK, IMR9C-9HES
Starting Electric

Max Power

175.6 hp / 131.0 kW @ 12000 rpm

Max Torque

115 Nm / 11.73 kg-m @ 8500 rpm
Clutch Wet, multiplate with diaphragm spring

Transmission

6 Speed
Final Drive #530 O-ring - sealed chain
Gear Ratio 1st 2.286 (32/14)  /  2nd 1.778 (32/18)  /  3rd 1.500 (33/22)  /  4th 1.333 (32/24)  /  5th 1.214 (34/28)  /  6th1.138 (33/29)
Frame Diamond; aluminium composite twin-spar

Front Suspension

43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment,
Front Wheel Travel 120 mm  / 4.3 in

Rear Suspension

Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment,
Rear Wheel Travel 135 mm / 5.4 in

Front Brakes

2x 320mm discs 4 piston calipers

Rear Brakes

Single 220mm disc

Front Tyre

120/70ZR-17

Rear Tyre

190/50ZR-17
Rim Size Front 17 x MT3.50
Rim Size Rear 17 x MT6.00
Rake (Caster Angle) 23.3°
Trail  96.2 mm /  3.8 in
Dimensions

Length 2080 mm / 81.5 in

Width  720 mm  / 26.9 in

Height 1118 mm / 46.5 in

Wheelbase 1407 mm / 55.4 in
Seat Height 820 mm / 32.3 in
Ground Clearance 130 mm / 5.1 in
Dry Weight 179 kg / 394.6 lbs

Wet Weight

205 kg / 450 lbs

Fuel Capacity

17.7 Liters / 4.7 US gal
Reserve 4 Litres

Standing ¼ Mile

10.3 sec

Top Speed

286.3 km/h / 177.8 mph
.

The 2009 Honda CBR 1000RR ABS, an extension of the Fireblade, becomes an even greater and safer performer on the track thanks to the Combined ABS system that is also found on the 2009 Honda CBR 600RR ABS. Being electronically controlled, the ABS system manages to distribute the braking power in the most efficient way without locking the wheels.

Honda claims that the anti-lock braking system, which was especially created for being best valued on the racing track, significantly improves lap times compared to the ABS-free model. This is the result of tests that have undergone with professional riders on racing circuits. Apparently, the racing riders needed more than a few laps on the simple version in order to match the performance of the ABS-equipped model around the corners. So it is expected to see a notable difference when getting a feel of the new model.

But you haven’t heard the best of it yet. The C-ABS system doesn’t remove the braking task from the rider’s shoulders as it allows the brakes to be powerfully applied before intervening and making that small, but crucial difference. And when it does that, the bike’s stability isn’t affected so no worries about keeping a strong hand on that clutch lever.

While the engine and chassis remain unchanged for 2009, the fairing was slightly modified on the ABS model in order to mask the indeed small and compact system. An extension of the fairing covers the source of power situated next to the engine while a black cap underneath the seat covers the electronic unit.
