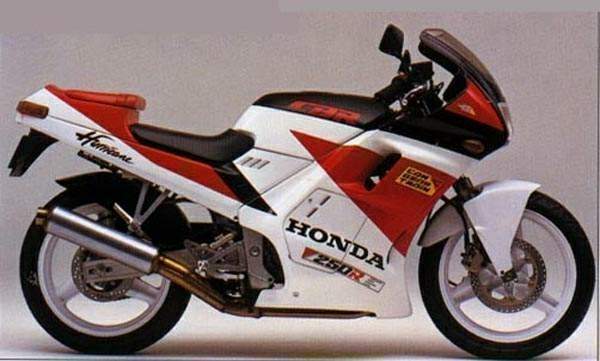

Honda CBR 250R

.

Make Model

Honda CBR 250R

Year

1988 - 89

Engine

Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

249 cc / 15.2 cu-in
Bore x Stroke 48.5 x 33.8 mm
Cooling System Liquid cooled
Compression Ratio 11.5:1

Induction

Carburetor

Ignition

CDI
Starting Electric

Max Power

40 hp / 29.2 kW @ 14500 rpm

Max Torque

40 hp / 29.2 kW @ 14500 rpm
Clutch Wet multi-plate coil spring

Transmission

6 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Pro-link. swing arm

Front Brakes

2x Hydraulic discs

Rear Brakes

Single hydraulic disc

Front Tyre

100/70 -17

Rear Tyre

130/70-17
Wheelbase  1380 mm / 54.3 in
Seat Height 750 mm / 29.5 in

Dry Weight

153 kg / 337 lbs

Fuel Capacity

14 Litres / 3.6 US gal

Road Test

Motosprint
