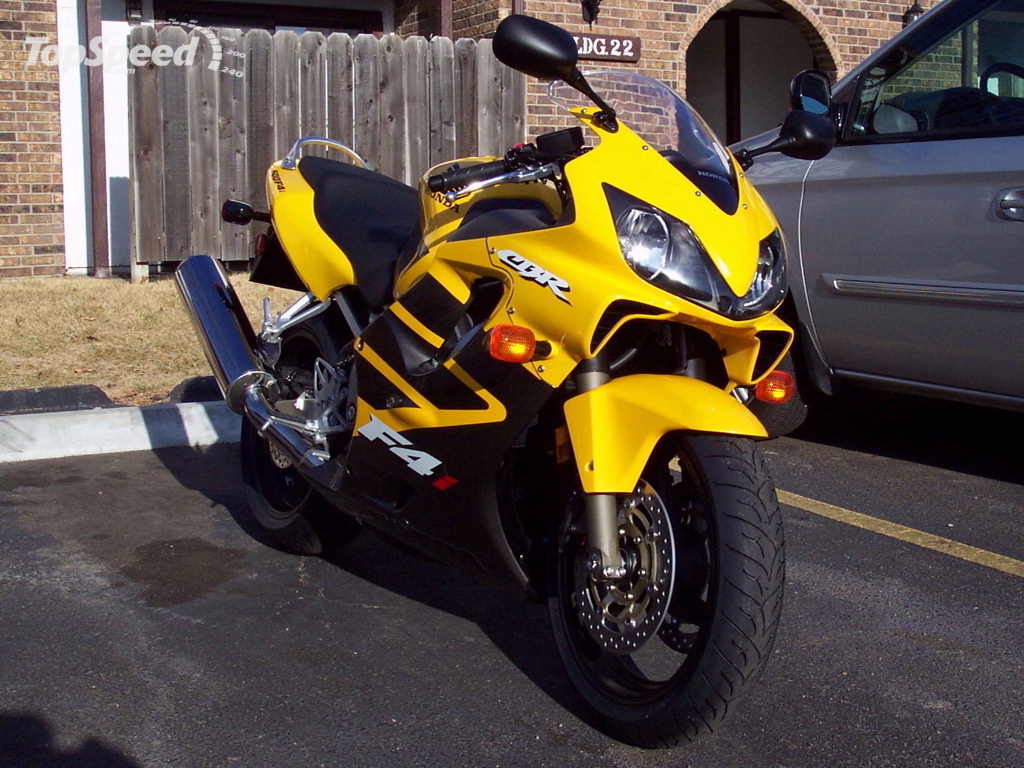

Honda CBR 600F4i

.

Make Model

Honda CBR 600F4i

Year

2006

Engine

Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.

Capacity

599 cc / 36.5 cu-in

Bore x Stroke 67 x 42.5 mm
Coolling System Liquid cooled
Compression Ratio 12.0:1
Lubrication system Wet sump
Motor Oil Semi-Synthetic, 10W/40

Induction

Electronic fuel injection

Ignition

Digital transistorized 3 dimensional mapping computer-controlled.

Spark Plug NGK, IMR9A-9H
Battery YTX9-BS
Starting Electric

Max Power

110.2 hp / 81 kW @ 12500 rpm

Max Torque

6.6 kgf-m / 65 Nm @ 10500 rpm

Clutch Wet, multiple discs, cable operated

Transmission

6 Speed

Final Drive #525 O-ring-sealed chain
Gear Ratio  6th 26/ 23 (1.130:1) 5th 25/ 20 (1.250:1) 4th 27/ 19 (1.421:1) 3rd 28/ 17 (1.647:1) 2nd 33/ 16 (2.062:1) 1st 34/ 12 (2.833:1)
Frame Aluminium, twin spar

Front Suspension

43mm fully adjustable cartridge-type fork

Front Wheel Travel 120 mm / 4.7 in
Rear Suspension Pro-Link featuring fully adjustable gas-charged remote reservoir damper
Rear Wheel Travel 120 mm / 4.7 in
Front Brakes 2x 296mm discs 4 piston calipers
Rear Brakes Single 220mm disc 1 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17

Rake 24°
Trail 96.5 mm / 3.8 in
Dimensions Length 2060 mm / 81.1 in
Width 685 mm / 26.9 in
Height 1135 mm / 44.6 in
Wheelbase 1386 mm / 54.9 in
Ground Clearance 135 mm / 5.3 in
Seat Height 805 mm / 31.9 in
Dry Weight 170 kg / 370 lbs

Wet Weight

193 kg / 425.5 lbs

Fuel Capacity

18 Liters / 4.2 gal

Consumption Average

 19 km/lit

Braking 60 - 0 / 100 - 0

 13.6 m / 39 m

Standing ¼ Mile

 11.7 sec / 199 km/h

Top Speed

 256.3 km/h

Features & Benefits

New for 2006

- Available in Pearl Yellow/Metallic Titanium and Candy Blue/Black.

Engine/Drivetrain

- High-output liquid-cooled DOHC 16-valve four-stroke engine features oversquare bore and stroke of 67mm x 42.5mm with a straight intake tract contributing to superb power throughout the rpm range.

- High-pressure programmed fuel injection (PGM-FI) delivers fuel to four injectors, each mounted in a 38mm throttle body, at 50 psi. Fuel is delivered through four nozzle tips in each injector, producing a highly combustible air/fuel charge for maximum combustion efficiency and power.

- A precise throttle sensor and sophisticated fuel injection mapping combine to produce smooth and linear throttle response, responding easily to fine throttle adjustments.

- Auto-enriching system is integrated into PGM-FI module, eliminating the need for a manual choke.

- Cylinder head features two springs per intake valve and hardened intake valve seats for even better high-rpm valve operation and durability.

- Inclined cylinder-head cover mating surface permits higher placement of the intake camshaft for a straight intake tract providing excellent engine efficiency and power.

- RC45-inspired aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The lightweight composite sleeves provide better wear resistance and superior heat dissipation than conventional sleeves.

- Aluminum alloy pistons feature LUB-Coat solid lubricant to minimize friction between the piston and cylinder wall.

- Ram-air provides a high volume of cool air to the airbox, utilizing a two-stage system that precisely balances air pressure within the carburetor float and vacuum chambers with the air flowing through their bores, providing sharp throttle response, linear power delivery and incredible performance at all speeds.

- Four transistorized direct-ignition coils integrate spark plug cap and high-tension lead to produce a high-voltage, long-duration spark, providing maximum performance at high engine output levels.

- Electronic ignition CPU provides digital 3-D mapping for individual cylinders, creating ideal spark advance settings for all riding conditions.

- Four-into-two-into-one exhaust system feeds single high-output polished stainless steel muffler for maximum power and efficiency.

- Direct shim-under-bucket valve actuation ensures high-rpm performance and durability and offers 16,000-mile maintenance intervals.

- Mechanical automatic cam-chain tensioner.

- Engine cooling system features a series-flow pattern that reduces piston crown and spark plug seat temperatures, resulting in increased power.

- Bearingless water pump is lightweight and features high-efficiency design.

- High-capacity liquid-cooled oil cooler contributes to lightweight engine design.

- Clutch cover integrates pulser cover and is lighter than traditional designs.

- Smooth-shifting close-ratio six-speed transmission features ratios carefully matched to engine's powerband.

 SUSPENSION

- Pro Frame® design consists of an aluminum twin-spar frame and extruded aluminum swingarm. The Pro Frame design locates the lightweight extruded aluminum box-section swingarm via a combined pivot in both the frame and the rear of the engine, producing superb handling and stability with excellent control.

- Lightweight aluminum, detachable rear subframe section.

.

- Rigid, 43mm HMAS front fork offers rebound, compression damping and spring preload adjustability.

- 40mm HMAS rear shock assembly utilizes Pro-Link® design with external reservoir for plush feel and excellent, well-controlled damping for all types of riding.

- Twin front calipers feature four pistons each; pistons have a molybdenum/anodic-oxide coating and Teflon-coated rollback seals to enhance braking feel under repeated hard use.

- Hydraulic rear disc brake features single-piston caliper and 220mm disc.

- Durable, lightweight #525 O-ring-sealed drive chain.

Additional Features

- Instrument display features analog tachometer with white numerals and needle indicator on a black face design; LCD digital displays for speedometer, odometer, A/B tripmeter, fuel reserve, clock, and coolant temperature; warning lights for coolant temperature, oil temperature, fuel injection, and over-rev; indicator lights for low/high beam, turn indicator and neutral.

- Aluminum-alloy hollow-spoke wheels feature race-spec 3.5 x 17-inch front and 5.5 x 17-inch rear dimensions.

- Industry-leading ergonomics for minimum fatigue in all riding conditions.

- One-piece seat design for optimum rider and passenger comfort.

- Lightweight aluminum upper cowl stay also serves as mounting bracket for mirrors and instrument housing.

- Asymmetrical dual headlight design features computer designed multi-reflectors. Left-side low beam is complimented by both lights in high beam making for superb lighting in nighttime riding conditions.

- Folding aerodynamic mirrors.

- Front fairing and rear seat cowl utilize few parts for simple servicing.

- Rear cowl storage box for U-type and cable locking devices (lock not included) under the passenger seat.

- Integrated ignition switch/fork lock for added security.

- Convenient push-to-cancel turn-signal switch.

- Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

- Ownership includes one-year complimentary membership for an individual in the Honda Rider's Club of America™ (HRCA®). Benefits include: discounts, travel benefits, roadside assistance, one year of Honda Red Rider™ magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com) and access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA. For dealers only, please call (310) 783-3958.

Available accessories

- Tank Pad.

- Magnetic Tank Bag (Black).

- Cycle Cover.
