Honda CR 500R

.

Make Model

Honda CR 500R

Year

1985

Engine

Two stroke, single cylinder, membrane & power valve

Capacity

491.4 cc / 29.9 cu-in

Bore x Stroke

89.0 x 79.0 mm

Compression Ratio

6.8:1

Cooling System

Liquid cooled

Exhaust

Expansion chamber

Lubrication

Pre-mix

Induction

Single 38mm Keihin flat-slide carburettor

Ignition

CDI

Starting

Kick

Max Power

64.6 hp / 47.5 kW @ 6000 rpm

Max Torque

72.2 Nm / 53.3 lb-ft @ 6000 rpm

Clutch

Wet plate

Transmission

5 Speed

Final Drive

Chain
Primary Reduction 2.520
Final Reduction 3.500
Gear Ratio 1st 1.750  /  2nd 1.388  /  3rd 1.150  /  4th 1.000  /  5th 0.870

Frame

Welded steel tubing

Front Suspension

46mm Showa telescopic fork
Front Wheel Travel 305 mm / 12.0 in

Rear Suspension

Showa Prolink with adjustable compression/rebound dampening
Rear Wheel Travel 315 mm / 12.4 in

Front Brakes

Single disc hydraulic 2 piston caliper

Rear Brakes

Drum

Front Tyre

3.00-21

Rear Tyre

5.10-18
Rake 27°
Trail 109.2 mm / 4.3 in

Wheelbase

1508.7 mm / 59.4 in

Seat Height

937 mm / 36.8 in

Ground Clearance

320 mm / 12.6 in

Dry Weight

102.1 kg / 225.0 lbs

Wet Weight

108.0 Kg  / 238.1 lbs

Fuel Capacity

9 Litres / 2.38 US gal

.

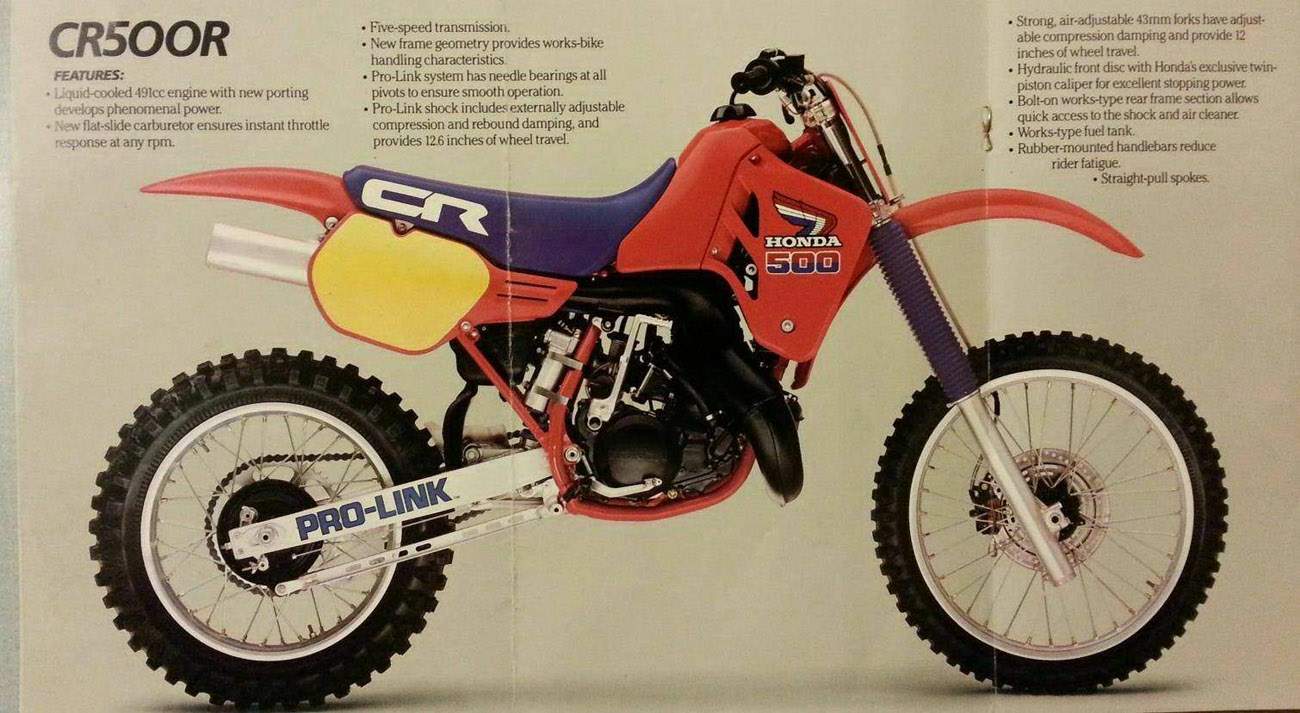

The 1985 CR500R came in Flash Red. The "500" decal was red and blue. The seat, fork boots, and shock springs were blue. The number plate panels were yellow. The wheel rims were silver. The carburetor used a flat slide. The rear brake was a drum, a disc was not there until 1987.



The engine was a 491cc 2-stroke liquid cooled reed valve single cylinder linked to a 5- speed transmission. The serial number began JH2PE020*FC400001

CR 500R Overview

The Honda CR500R, a two stroke, single cylinder, dirt bike series was produced by Honda between 1984 and 2001.

The 1984 model was the only year to be air cooled and was nick named the "ping king", with a claimed 59 hp

In 1985, Honda made the first water cooled CR500R.

The 1984-1986 models had a rear drum brake and front disc brakes, and from 1987 and up Honda fitted a disc brake at the rear.

The bottom end power is specially notorious for the years 1985 to 1991 with a claimed 64.6 hp.

For the years 1989 onwards, Honda smoothed out the power band by redesigning the head. This also helped with kick starting since there was less compression to push down. Also the bike received some big exhaust changes that resembles modern two stroke exhaust designs.  The front suspension was upgrades to Showa up-side-down forks.

The bike stayed basically the same throughout the years, but in 1993 to 2001 the hp was mellowed out to approximately 56 hp.

In 1993 the AMA 500 motocross races were stopped and there was no longer a designated motocross race for the bike to be in, so Honda stopped developing the CR500R.

2001 was the last year of production of the CR500R.

Dave Thorpe, three-time World 500cc MX champion said:

“The CR500 has a reputation as being an animal, but when you are thinking straight and everything is together, it’s a lovely machine. But as soon as your mind wanders you tire and become a passenger, that’s when a 500cc two-stroke becomes a beast that will bite you…

What amazed me the most was just how tractable it was, which people often forget. I used to race with a four-speed gearbox and start the race in third! It would just plough away from the trap like a tractor, digging a trench behind it due to its torque. It was awesome and I often used to only shift once in a lap, the rest of the time I just left it in third.

The time I used to notice just how fearsome the CR could be, was during pre-season testing. When you hadn’t ridden it for a while it really felt wild. Dad used to describe watching me as like seeing some washing hanging off the back of the bike. I wish some of the modern top-level riders could try one for size, I’m sure they would still be amazingly competitive as the CR500 was so far ahead of its time.”
