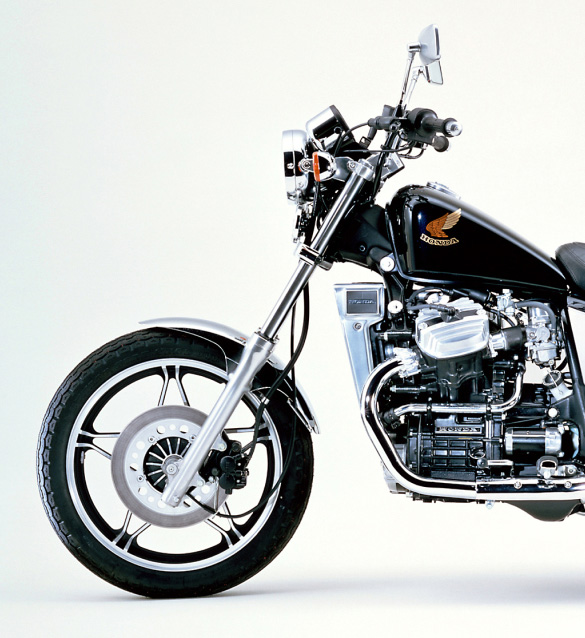

Honda CX 400 Custom

.

Make Model

Honda CX 400 Custom

Year

1983 -

Engine

Four stroke, longitudinal 800 V-twin cylinder, camshaft nestles at the base of the V between the cylinders. ,OHV, 4 valves per cylinder operated by pushrods

Capacity

396 cc / 24.1 cu-in
Bore x Stroke
Cooling System Liquid cooled

Induction

2x 34mm Keihin carburetors

Ignition

CDI
Starting Electric

Max Power

40 hp / 29.8 kW @ 9500 rpm

Max Torque

32Nm / 23.6 lb-ft @ 7500 rpm

Transmission

5 Speed
Final Drive Shaft

Front Suspension

39mm Showa telehydraulic fork

Rear Suspension

Dual chocks

Front Brakes

Single 275 mm discs 2 piston caliper

Rear Brakes

160mm Drum

Front Tyre

3.25-19

Rear Tyre

3.75-16

Wet Weight

 200 kg / 441 lbs

Fuel Capacity

11 Litres / 2.9 US gal
