Honda MR 250 Elsinore

Make Model	Honda MR 250 Elsinore
Year	1976
Engine	Two stroke, piston port, single cylinder
Capacity	248 cc / 15.1 cu-in
Bore x Stroke	70 x 64.4 mm
Cooling System	Air cooled
Compression Ratio	6.9:1
Induction	Single 34mm Keihin carburetor
Ignition	External flywheel magneto & coil
Starting	Kick
Max Power	21.8 hp @ 7000 rpm
Max Torque	17 lb-ft @ 6500 rpm
Clutch	Wet, multi-plate
Transmission	5 Speed
Final Drive	Chain

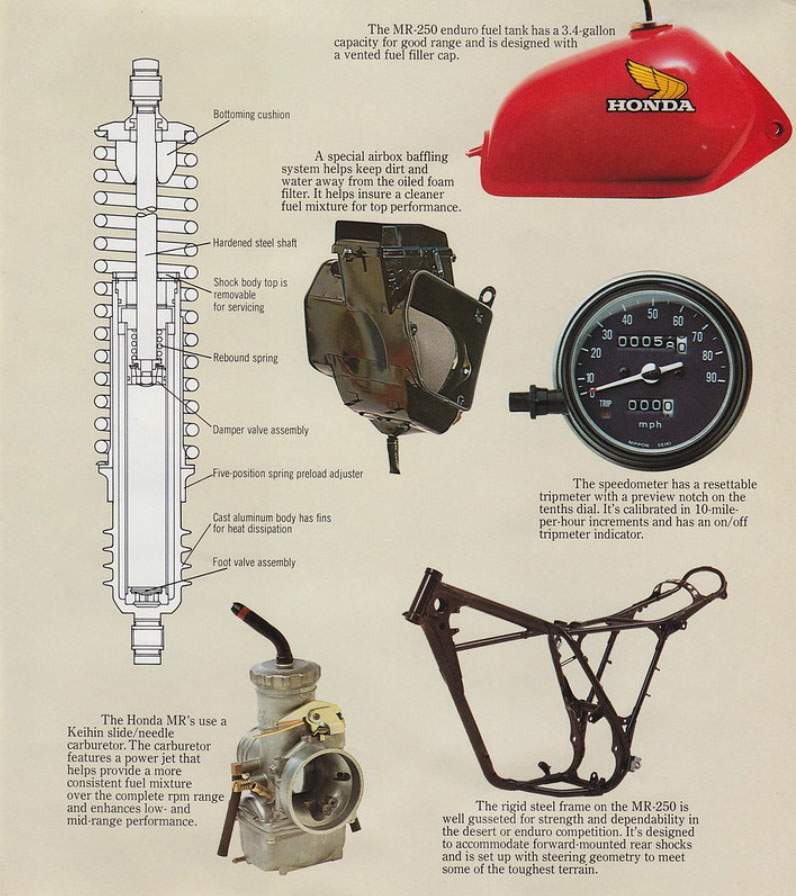

Front Suspension	Telescopic forks
Rear Suspension	Dual shocks, five way adjustable
Front Brakes	Drum
Rear Brakes	Drum
Front Tyre	3.00-21
Rear Tyre	4.00-18
Rake	32°
Trail	147 mm
Wheelbase	1435 mm / 58.5 in
Seat Height	880 mm / 34.6 in
Ground Clearance	240 mm / 9.4 in
Dry Weight	112 kg / 248 lbs
Wet Weight	122 kg / 269 lbs
Fuel Capacity	12.9 Litres / 3.4 US gal

Launched in 1976, the MR250 Elsinore was based closely on the previous years CR250 of the same name. The Enduro, at that time a road legal Moto-Cross bike was popular, especially with the number board still on the side, giving the machine competition credentials! Whilst the ‘Street Scrambler’ was more for show than go, and the Trail Bike was for more gentle back-lane riding, the Enduro was for serious off-road charging!

The MR250 Elsinore was sold in 1976 in Light Ruby Red with White. The gas tank and side covers were red. The tank contained 3.4 US gallons (12.9 litres). The fenders were white, color-impregnated plastic. The headlight had a silver shell and a chrome rock guard. The engine was a 248cc 2-stroke piston port single cylinder linked to a 5-speed. The serial number began MR250-1000001.
