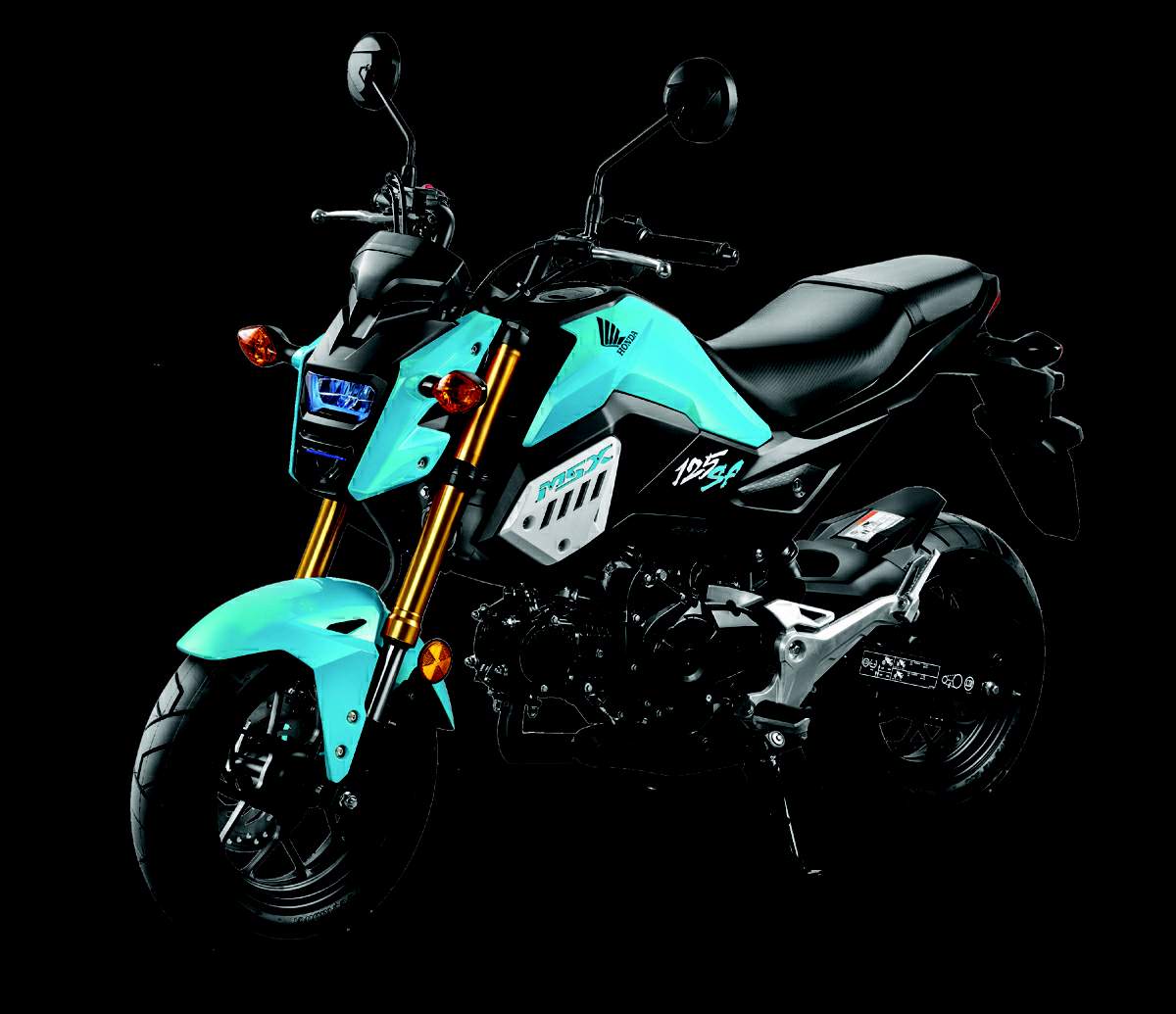

Honda MSX 125 Grom

Honda MSX 125 Grom

Make Model

Honda MSX 125 Grom

Year

2017 - 18

Engine

Four stroke, single cylinder, SOHC, 2 valve

Capacity

124.9 cc / 7.62 cu-in

Bore x Stroke

52.4 x 57.9 mm

Compression Ratio

9.3:1

Cooling System

Air cooled

Oil Capacity

1.1 litres

Induction

Injection PGM-FI

Ignition

Electronic CDI

Starting

Electric

Battery

12V 3.5AH

Max Power

9.6 hp / 7.1 kW @ 7000 rpm

Max Torque

10.9 Nm / 8.0 ft.lbs @ 5500 rpm

Clutch

Wet multiplate

Transmission

4 Speed

Final Drive

Chain

Frame

Steel mono-backbone frame

Front Suspension

31mm inverted fork

Front Wheel Travel

100 mm / 3.9 in

Rear Suspension

Mono shock with steel box-section swingarm

Rear Wheel Travel

104 mm / 4.1 in

Front Brakes

Single 220mm disc with hydraulic dual-piston brake caliper

Rear Brakes

Single 190mm disc with hydraulic single-piston brake caliper

Front Wheel

Y-Spoke Aluminium Cast

Rear Wheel

Y-Spoke Aluminium Cast

Front Tyre

120/70-12

Rear Tyre

130/70-12

Rake

25.0°

Trail

81 mm / 3.2 in

Wheelbase

1200 mm / 47.2 in

Seat Height

765 mm / 30.1 in

Ground Clearance

160 mm / 6.3 in

Wet Weight

103.8 kg / 229 lbs

Fuel Capacity

5.5 Litres / 1.45 US gal

If you—and about three-quarters of the planet—thought the Honda Grom was cool before, check out the new 2017 version! The first thing you’ll notice is the new, aggressive bodywork and rad new colors. Then pay some attention to the new headlight—its LED design not only looks fresh, but it works great too. There’s a new two-tier seat, a more defined tail section, and a new low-mount muffler design.

“We’re excited to refresh the Grom with an assertive new look for 2017,” said Lee Edmunds, Manager of Motorcycle Marketing Communications at American Honda. “Since its 2014 introduction, this fun-loving motorcycle has been a big hit in a little package, singlehandedly establishing a thriving market for small-wheeled, small-displacement, big-personality road bikes that lend themselves to personalization. Now, the Grom’s styling is even more exciting without losing any of the original’s fun appeal.”

Grom
Part minibike, all motorcycle, the Grom has been a resounding success from the start, with a package that’s manageable yet comfortable for full-sized adults. Though its wheels are only 12 inches, the bike has full-size features like a sturdy steel frame, a 31mm inverted fork, mono-shock rear suspension, hydraulic disc brakes and a 125cc single-cylinder four-stroke engine. Now the Grom gets an edgier look, thanks to an integrated fuel tank and side panels, along with a modern, stacked LED headlight layout. Add a new flip-key, sportier handlebar, under-slung exhaust, upswept tail unit and a higher passenger seat, and you’ve got a Grom that’s as fun as ever but with a daring new look. What makes the Grom so much fun? It all starts with a great motor. The Grom’s single-cylinder design is light, narrow, and revs fast. Fuel injection helps performance, electric starting makes it a snap to get going, and plenty of maintenance-reducing features mean more time to ride.
