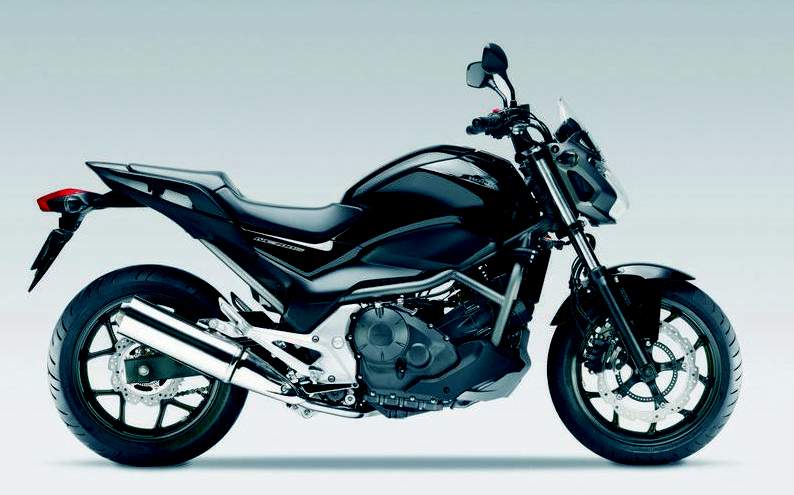

2012 Honda NC 700S / DCT

Make Model	Honda NC 700S / DCT
Year	2012 - 13
Engine	Four stroke , Parallel twin, SOHC, 4 valves per cylinder
Capacity	670 cc / 40.8 cu-in
Bore x Stroke	73 × 80 mm
Cooling System	Liquid-cooled
Compression Ratio	10.7:1
Induction	PGM-FI electronic fuel injection
Ignition	Computer-controlled digital transistorised with electronic advance
Starting	Electric
Max Power	38.1 kW 51.1 hp @ 6250 rpm
Max Torque	62 Nm / 46 lb-ft @ 4750 rpm
Clutch	Wet Multiplate
Clutch DCT	Wet multiplate hydraulic 2-clutch
Transmission	6 Speed Manual
Transmission DCT	6-Speed Dual Clutch Transmission
Final Drive	Chain
Frame	Diamond; steel pipe
Front Suspension	41 mm telescopic forks
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Single monoshock damper
Rear Wheel Travel	120 mm / 4.7 in
Front Brakes	Single 320 mm hydraulic disc 3 piston calipers and sintered metal pads
Rear Brakes	Single 240 mm hydraulic disc 1 piston caliper and sintered metal pads
Wheels	Cast aluminium 17M/C x MT4.5
Front Tyre	120/70-ZR17
Rear Tyre	160/60-ZR17
Rake	27˚
Trail	110 mm / 4.3 in
Dimensions	Length 2195 mm / 86.4 in Width 790 mm / 31.1 in Height 1440 mm / 56.6 in
Wheelbase	1525 mm / 60.0 in
Seat Height	790 mm / 31.1 in (Europe) - 775 mm / 30.5 in (Japan)
Ground Clearance	140 mm / 5.5 in
Wet Weight	211 kg / 465.2 lbs
Fuel Capacity	14.1 Litres / 3.7 US gal

The NC700S is the product of a simple requirement: to deliver a motorcycle that is fun to ride and user-friendly at a reasonable price. The NC700S offers the practicality of a commuter together with the thrilling handling and distinctive style of a naked.

The development theme for the NC700S was ‘New Concept Fun Naked’. Right from the beginning the NC700S had to be fun to ride. Handling is key to this, and the NC700S offers a direct, intuitive, confidence-inspiring ride for all levels of experience. The low seat position adds to the accessibility of the machine, and the engine appeals to all kinds of rider, with its smooth, responsive power and a strong feeling of low-rpm torque. The result is a machine that takes no time at all to get used to with a direct and uncomplicated responses bringing joy to anyone who rides it.

As well as fun, the machine had to be easy to use and versatile. The riding position gives a high degree of control and freedom; there is also a secure internal storage space large enough to accommodate a full-face helmet, an unusually practical feature on a naked motorcycle.

The motorcycle is available with both Honda’s antilock Combined Braking System (C-ABS) and the option of the second generation of Honda’s Dual Clutch Transmission, which offers fingertip manual operation or the ease of completely automatic functionality.

At the heart of the machine is an all-new purpose-built engine. The liquid-cooled, in-line 2-cylinder 670 cm3 engine is a lightweight and compact unit with a low centre of gravity. It offers a very usable power delivery with excellent torque at low to medium engine rpm, combined with low exhaust gas emissions and a truly outstanding level of fuel efficiency.

The NC700S fuses striking, futuristic design with a joyous and reasonable-cost riding experience, complemented by the versatility and ease of use that matter when a vehicle is to be used daily. It is a machine for getting back to the fundamentals of motorcycling: fun and mobility.

Key features :

Innovative two-cylinder engine
Developed to provide responsive power and strong torque in a compact package, the new 670cm3 inline two-cylinder engine also meets the demands of today’s environmental concerns by being highly fuel-efficient (27km/litre) for a tank range of nearly 400km.
Versatility and practicality
With its internal storage compartment, protective fairing and windscreen and commanding riding position, the NC700S is ready for anything, whether city or long distance riding.
Fun and intuitive handling
Light in weight, pure and swift in its handling responses, the NC700S is fun and easy to handle thanks to the combination of the steel diamond frame, cast aluminium 17” wheels and accomplished chassis geometry.
Naked bike styling
In keeping with a true naked look, the NC700S has minimal styling to emphasise its urban usability.
Secure C-ABS braking
A Combined Antilock Braking System (C-ABS) is featured on the NC700S.
Optional Dual Clutch Transmission
The NC700S is available with either a conventional manual 6-speed transmission or the second generation of Honda’s Dual Clutch Transmission. The system uses two hydraulic controlled clutches to deliver swift and very smooth gear changes in a choice of three modes. Manual (MT) allows the rider to shift gears using buttons, while automatic mode (AT) offers two settings: S for sporty riding and D for everyday use.
