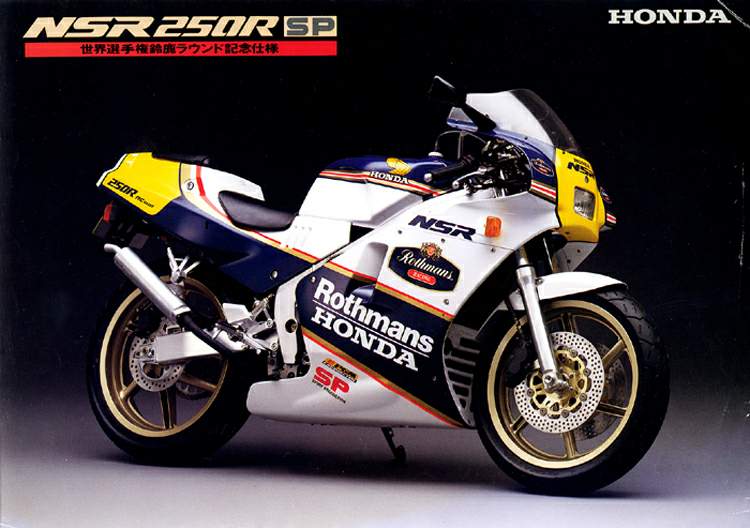

1992 Honda NSR 250SP Rothmans ReplicaMC21

Make Model	Honda NSR 250SP Rothmans ReplicaMC21
Year	1992
Engine	Two stroke, 90°V-twin cylinder, reed valve/exhaust valve
Capacity	249 c / 15.2 cu-in
Bore x Stroke	54 x 54.5 mm
Cooling System	Liquid cooled
Compression Ratio	7.3 : 1
Induction	TA20 Carburetor Type
Lubrication	Seperate Pump (engine) splash type (transmission)
Ignition	PGM-CDI
Starting	Kick
Max Power	45 hp / 32.8 kW @ 9500 rpm
Max Torque	35 Nm / 25.8 ft-lb @ 8500 rpm
Clutch	Multi-plate, coil spring
Transmission	Constant Mesh 6-speed
Final Drive	Chain
Gear Ratio	1st: 2.642 / 2nd: 1.800 / 3rd: 1.380 / 4th: 1.125 / 5th: 1.000 / 6th: 0.916
Frame	Aluminum tube type frame
Front Suspension	41mm Telescopic air valve semi-adjustable
Rear Suspension	Rear: Pro-Link Single shock swingarm non-adjustable
Front Brakes	2x discs 2 piston calipers
Rear Brakes	Single disc 1 piston caliper
Front Tyre	110/70-17 53 H
Rear Tyre	150/60-R18 67 H
Rake	23°15’
Trail	87 mm / 3.4 in
Dimensions	Length 1975 mm / 77.7 in Width 655 mm / 25.7 in Height 1060 mm / 41.7 in
Wheelbase	1345 mm / 52.9 in
Seat Height	770 mm / 30.3 in
Ground Clearance	135 mm / 5.3 in
Dry Weight	132 kg / 291.8 lbs
Wet Weight	151 kg / 337 lbs
Fuel Capacity	16 Litres / 4.2 US gal
Related Links	Type I / Type II / Technical / nsr250.net
Road Test	Motosprint 1991

The 1992 NSR there were no major changes but there were all new colors. The standard R type was still priced at 620,000 Yen and the new colors were Ross white and real blue with orange accents and the green markings on the seat cowl that was becoming famous with NSR's. The SE was still part of the 1992 lineup and this time two different colors were available in fighting red and Ross white with blue accents and the green marked seat cowl. The other colors for the SE were in black and fighting red with silver accents and of course the green marked seat cowl. SE NSR's were marked differently than standard NSR's and were unchanged in price from the previous year SE models of 660,000 Yen. Honda brought back the Rothmans colored NSR SP models for 1992 with all the extras as the previous year SP. These second generation Rothmans colored NSR's were limited to a production run of 1,500 units and were priced at 770,000 Yen. These SP bikes hold there value very well due to the limited number
