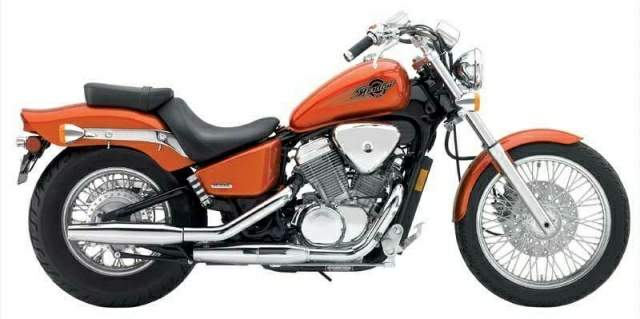

Honda VT 600C Shadow VLX

Make Model	Honda VT 600C Shadow VLX
Year	2005 - 08
Engine	Four stroke, 52°V-twin, OHC, 3 valves per cylinder
Capacity	583 cc / 35.5 cu-in
Bore x Stroke	75 x 66 mm
Cooling System	Liquid cooled
Compression Ratio	9.2;1
Induction	2 x Constant Vacuum
Ignition	CD with electronic advance, two spark plugs per cylinder
Starting	Electric
Max Power	41 hp / 30.6 kW @ 6500 rpm
Max Torque	51 Nm / 37.6 ft. lb @ 3500 rpm
Transmission	4 Speed, Wide-ratio
Final Drive	O-ring-sealed chain
Front Suspension	39mmTelescopic fork
Front Wheel Travel	145 mm / 5.7 in
Rear Suspension	Swing Arm
Rear Wheel Travel	90 mm / 3.5 in
Front Brakes	Single 296mm disc 2 piston caliper
Rear Brakes	160mm drum
Front Tyre	100/90-19
Rear Tyre	170/80-15
Wheelbase	1600 mm / 63 in
Dimensions	Length 2355 mm / 92.7 in Width 840 mm / 33.1 in Height 1120 mm / 44.1 in
Seat Height	690 mm / 27.2 in
Dry Weight	207 kg / 456.4 lbs
Fuel Capacity	11 Litres / 2.9 US gal

A hardtail-style rear suspension. One of the lowest seat heights in our entire cruiser lineup. A powerful 583cc V-twin. The Shadow VLX is the definition of cool.

Features & Benefits

New for 2005

• New Pearl White, Candy Orange and Pearl Blue colors adorn the Shadow VLX Deluxe model.
Unique Shadow VLX Deluxe feature
• Brilliant chrome finish on cylinder head covers, right and left engine-covers, and left-rear engine cover.

Engine/Drivetrain

• 583cc liquid-cooled V-twin engine produces impressive power over a broad rpm range.
• Three-valve cylinder head design utilizes two spark plugs per cylinder for excellent combustion efficiency and high power output.
• Coolant-heated carburetor is tuned for excellent power and rideability.
• Finned cylinders enhance appearance.
• Aluminum radiator maintains consistent engine temperature for optimum performance and long engine life.
• Wide-ratio four-speed transmission.
• Dual exhaust system offers a rumbling sound and custom appearance.
• Reliable electric starting system.
• CD ignition with electronic advance offers dependability and is maintenance-free.
• Maintenance-free automatic cam-chain tensioners.

SUSPENSION

• Double-cradle steel frame allows a long wheelbase, and a low seat height of just 25.6 inches.
• 39mm front fork offers a compliant, controlled ride.
• Specially designed swingarm gives the bike a custom, hardtail look.
• Rear shock has seven-position spring preload adjustability.
• Single-disc front brake with twin-piston caliper and a drum rear brake.
• Chrome-plated rims and spokes.
• Massive, 170/80-15 rear tire offers excellent grip and provides a low, custom look.
• Durable O-ring-sealed drive chain.
• Chrome handlebar and forward-mounted footpegs are rubber-mounted for reduced vibration and offer a comfortable riding position.

Additional Features

• Custom-style seat is wide and low in the rear and narrow in the front, with dense foam to provide a comfortable, 25.6-inch seat height.
• Chrome-plated halogen headlight.
• Simple, easy-to-read instrumentation.
• Helmet lock and tool kit.
• Soft, comfortable handgrips.
• Solid aluminum footpegs with wide rubber trim bands project a custom-made look.
• Standard fork lock.
• 12-volt maintenance-free battery.
• Transferable one-year, unlimited-mileage warranty; extended coverage available with a Honda Protection Plan.
• Ownership includes one-year complimentary membership in the Honda Rider's Club of America(tm) (HRCA(r)). Benefits include: discounts, travel benefits, roadside assistance, one year complimentary subscription to Honda Red Rider(tm) magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com), access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA.

Available accessories

• Touring accessories: Cruiser Shield, Magnetic Tank Bag (Black).
• Chrome accessories: Oil Filler Cap, Backrest Emblem, Sidecovers, Front Fender, Footpegs, Backrest Trim, Radiator Guard, Lever Set, Backrest with Pad, Gold Backrest Emblem, Air Cleaner Cover Emblem, Rear Carrier Rack (round tube), Rear Carrier Rack (square tube).
• Additional accessories: Cycle Cover.
