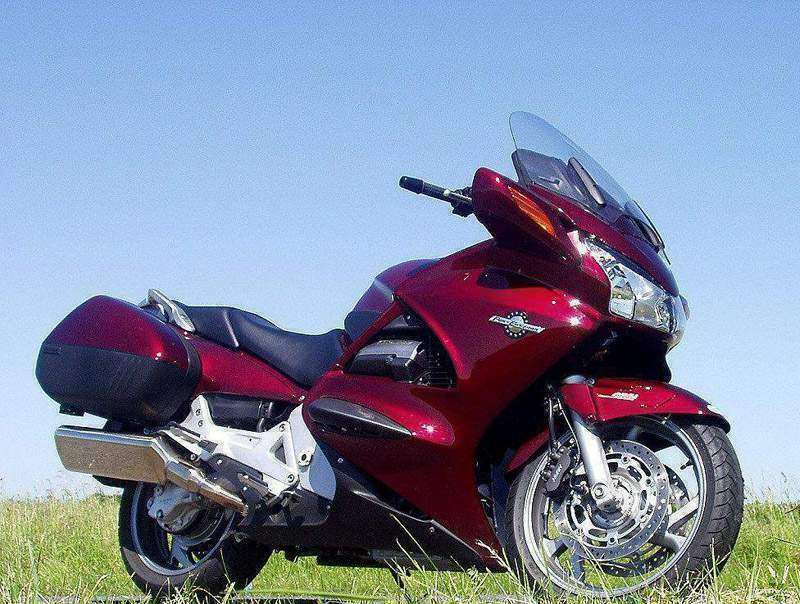

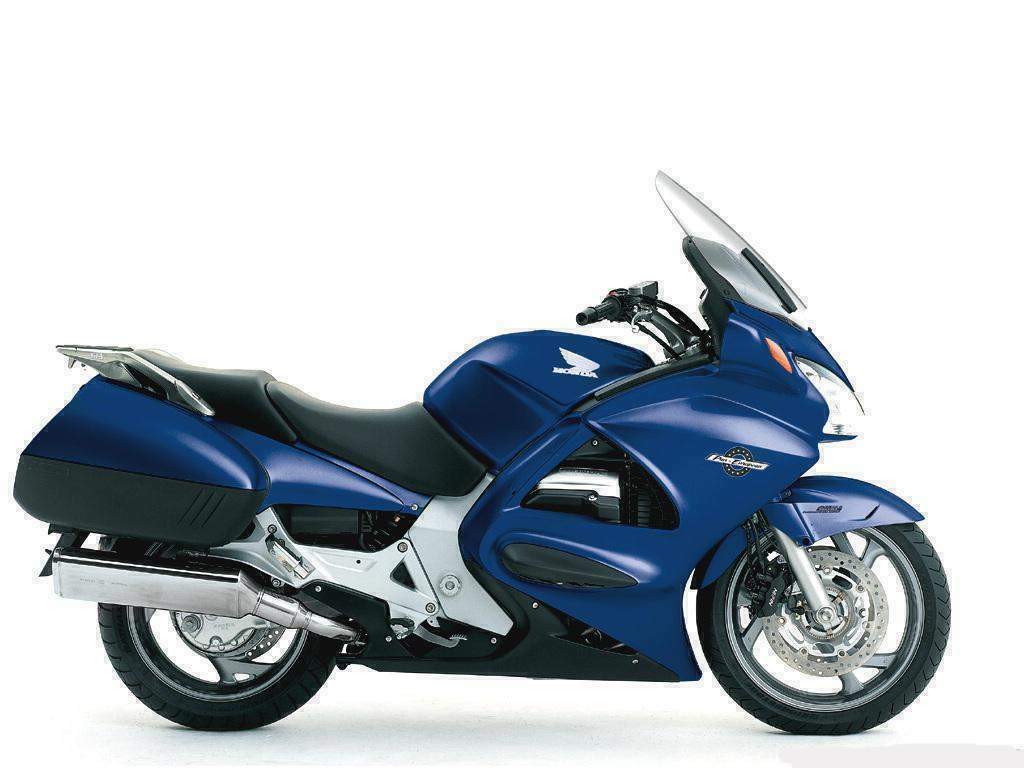

Honda ST 1300 Pan European

Make Model	Honda ST 1300 Pan European
Year	2004
Engine	Four stroke, longitudinally 90°V-four cylinder, DOHC, 4 valve per cylinder
Capacity	1261 cc / 76.9 cu-in
Bore x Stroke	78 x 66 mm
Compression Ratio	10.8:1
Cooling System	Liquid cooled
Lubrication	Wet sump
Engine Oil	Semi-Synthetic,10W/40
Induction	PGM-FI electronic fuel injection, 36 mm throttle bodies
Ignition	Computer-controlled digital transistorized
Spark Plug	NGK, CR7EH-9
Starting	Electric
Max Power	118 hp / 87 kW @ 8000 rpm
Max Torque	117 Nm / 11.93 kg-m @ 6500 rpm
Clutch	Wet, multiple discs, cable operated
Transmission	5 Speed
Final Drive	Shaft
Frame	Aluminum-alloy triple-box-section pressure cast dual-spar with cast aluminum-alloy swingarm
Front Suspension	45mm air-assist telescopic fork
Front Wheel Travel	117 mm / 4.3 in
Rear Suspension	Single-side conventional damper with adjustable preload and rebound damping
Rear Wheel Travel	133 mm / 4.8 in
Front Brakes	2x 310 mm discs 3 piston calipers
Rear Brakes	Single 316 mm disc 3 piston caliper (ABS option available)
Front Tyre	120/70 ZR18
Rear Tyre	170/60 ZR17
Rake	26°
Trail	98 mm / 3.9 in
Dimensions	Length 2282 mm / 89.8 in Width 935 mm / 36.8 in - including panniers Height 1332 mm / 52.4 in
Wheelbase	1491 mm / 58.7 in
Seat Height	790 mm / 31.1 in
Dry Weight	286 kg / 631 lbs - ABS 289 kg / 637 lbs
Wet Weight	331 kg / 730 lbs
Fuel Capacity	29 Liters / 7.7 US gal
Consumption Average	19.8 km/lit / 46.7 mp/g
Standing ¼ Mile	11.6 sec
Top Speed	225 km/h / 139.8 mph

BS feature combines with LBS for a wide range of braking and steering control. ABS features an electric-motor-driven modulator that gives quick, precise braking pressure adjustments and smooth ABS operation. The system incorporates an integrated ECU controller, self-diagnostics with an interactive ECU test function, and automatic protection against system failure.

- Linked Braking System(r) (LBS(r)) uses a second master cylinder and a proportional control valve (PCV) to couple the three-piston calipers of the dual-disc front and single-disc rear brakes for even better braking feel, while providing the peace of mind of an LBS system. Using the front brake lever activates the outer two pistons of the front calipers and the two outer pistons of the rear caliper. Rear pedal engagement activates the center piston of the rear brake caliper and the center pistons of the front calipers, and a delay valve slows initial front brake response to minimize front-end dive.

- A motor-driven adjustable windscreen offers 7.4 inches and 13 degrees of adjustability for greater wind protection and touring comfort. A thumb-operated pushbutton on the left handlebar operates the windscreen motor. An additional 2.3 inches of manual adjustment is possible by repositioning the windshield on the mounting brackets.

- New special patrol speedometer is graduated in 2 mph increments above 10 mph.

- Adjustable 3-position dual-density solo seat.

- Handlebars raised 20mm and width increased 13.5mm for rider comfort.

- Specialized brackets for lights, sirens, antenna mount and radio/electronic equipment.

- Rear component cover for electronics weather protection.

- Left and right lower engine-guards have built-in brackets for mounting accessories.

- Right-handlebar-mounted multi-function switch controls.

- Two additional control switches are mounted on left side of fairing.

- 8mm side fairing air deflector set.

Engine/Drivetrain

- Compact, powerful 1261cc DOHC 90¡ V-4 produces 125bhp at 8000 rpm and 85 lb./ft. of torque at 6000 rpm. Longitudinal engine mounting eliminates an inefficient 90-degree turn in the power flow for improved drivetrain efficiency.

- The ST1300's low overall center of gravity contributes to improved low-speed handling. The 360 degree crank contributes to a very broad powerband. Two engine counterbalancers virtually eliminate primary and secondary vibration. Both gear-driven counterbalancer shafts are installed in the lower crankcase, to the left side of the crankshaft. The first shaft is driven directly by the crankshaft at a 2:1 ratio. The second shaft is positioned below the first and is driven in the opposite direction by the first balancer shaft's drive gear. The combination of these two balancers assures a supremely comfortable ride.

- Aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The composite sleeves provide better wear resistance and superior heat dissipation compared to conventional sleeves.

- Large, 31mm intake valves and 27mm exhaust valves feed a combustion chamber with a 10.8:1 compression ratio.

- Direct shim-under-bucket valve actuation system ensures high-rpm durability and allows 16,000-mile valve maintenance intervals.

- Four 36mm throttle bodies.

- High-pressure PGM-FI delivers fuel at 50 psi into each injector.

- Fuel is delivered through eight holes in each injector, producing a very fine spray and a highly combustible air/fuel charge for maximum combustion efficiency and power.

- PGM-FI combines a sophisticated throttle sensor, advanced 3-D digital fuel injection and ignition mapping and precisely metered fuel delivery to produce smooth and linear throttle response.

- ECU-controlled closed-loop emission control system utilizes two oxygen sensors to constantly deliver a precise air/fuel mixture, while two exhaust catalyzers further reduce emissions of carbon monoxide, hydrocarbons and oxides of nitrogen.

- Auto-enriching system is integrated into PGM-FI module, optimizing the air/fuel mixture on cold starts and eliminating the need for a manual choke.

- Four-into-two stainless steel exhaust system features a pair of attractive triangular-section, 5.4-liter mufflers with stainless steel heat shields.

- Dampers on the transmission mainshaft, clutch and drive shaft reduce noise, vibration and driveline lash.

- High-output, 660-watt air-cooled alternator is relocated between the cylinder banks, contributing to a shorter and more compact engine design.

- U-shape aluminum radiator has excellent cooling capacity, a ring-type fan draws air through the radiator at low speeds to ensure stable operating temperatures for consistent performance and long engine life.

- Sturdy eight-plate hydraulic clutch.

- Cassette-type five-speed transmission features gear ratios that allow for quick acceleration and excellent roll-on performance.

- Quiet and reliable shaft-drive system is virtually maintenance-free.

SUSPENSION

- Rigid aluminum upper triple-clamp and a 45mm Honda Multi-Action System(tm) (HMAS(tm)) cartridge front fork provide excellent suspension control in a wide range of riding conditions.

- The rear suspension incorporates a single shock, which mounts directly on the swingarm. The shock offers 1.2 inches of spring preload adjustability.

- Large 310mm stainless steel floating front brake discs and 316mm rear disc for ultimate stopping power.

- Wheels are three-spoke U-section cast aluminum. 5.0-inch-wide rear wheel sports a large, low-profile 170/60ZR-17 radial tire. The 3.5-inch-wide front wheel carries a 120/70ZR-18 radial tire.

Additional Features

- Full-coverage bodywork offers superb wind and weather protection, low noise and superior high-speed aerodynamics.

- Integrated lockable and detachable saddlebags hold 35 liters each. The saddlebags contain straps to limit bag opening to 90 degrees to better secure the contents. The straps are easily unbuckled when the bags are dismounted, permitting full access.

- Rugged, plastic-covered body-protector stays extend outward to protect the bodywork in case of a tip-over.

- Dual-section fuel tank places 5.5 gallons of fuel in the conventional tank location with an additional 2.2 gallons located in a sub-tank located low in the chassis. This results in an increase in fuel capacity and creates an even weight distribution for fuel.

- Electric fuel pump operates inside the sub-tank, providing consistent fuel pressure for the PGM-FI system.

- Headlight features dual lenses with twin-filament H4 low/high beam bulbs and multi-reflectors.

- A convenient push button located on the left side of the fairing electrically adjusts the headlight angle over a 2.5-degree range.

- A locking left-side fairing pocket offers the carrying capacity of an automobile console; a weather-resistant vinyl flap covers the right-side pocket.

- Breakaway rear view mirrors minimize damage in the event of a tip over.

- Convenient centerstand assist-lever folds neatly away when not in use.

- Integrated front and rear turn signals.

- Integrated ignition switch/fork lock. A single ignition key operates all locks.

- Non-transferable three-year, unlimited-mileage limited warranty.

Honda's ST 1100 Pan European was first launched in 1989, and continued largely unchanged until 2002, when this 126 lcc updated model was launched. The original Pan was a huge success in the heavy tourer market, its 1 100cc V-4 engine and accomplished chassis winning acclaim from riders worldwide. But by 2002, it was starting to look dated in comparison with competition from bikes like Yamaha's FJR1300 and BMW's Rl 150RT. So Honda embarked on a ground-up revamp of the Pan.

The new bike, dubbed the STX1300 Pan European, retains the same transverse V-4 layout of the older bike, but has an all-new chassis and engine. An aluminium frame saves weight and adds stiffness compared with the older steel frame, and the large-capacity engine is packed with modern technology to produce even more torque and power.

Ceramic coated aluminium bores cut weight and friction inside the engine, while lasting longer than the old steel liners. New lightweight pistons further reduce friction, and the old bike's camshaft belt drive is replaced by a smaller, maintenance-free chain. This new cam drive, together with a repositioned alternator, makes the engine shorter and more compact.

New dual balancer shafts cut vibration from the already smooth motor, while a PGM-F1 fuel-injection system replaces the ST1100 carbs.

A new lightweight aluminium swingarm further refines the rear monoshock suspension while the front end is fitted with stiff 45mm (1.8in) forks. Honda's Dual-CBS linked brake system is fitted to the new model, and optional anti-lock brakes are also available. Redesigned bodywork updates the Pan's looks while remaining true to the original bike's styling.

Honda offers a wide variety of optional accessories for the STX1300: owners can choose from a list that includes a large-capacity topbox, CD/radio sound system and heated grips.
