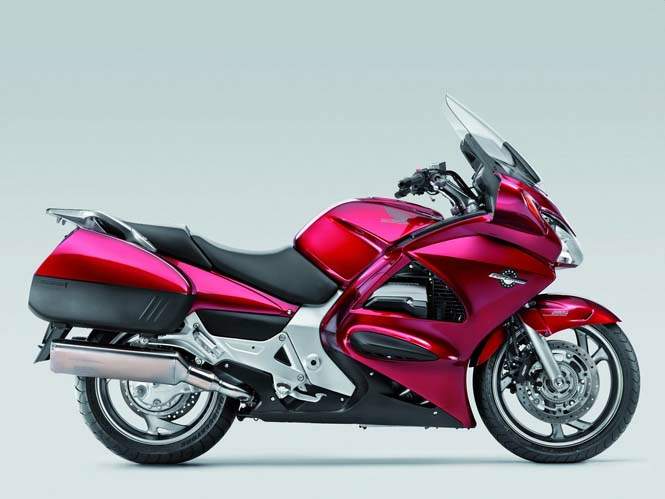

Honda ST 1300 Pan European

.

Make Model

Honda ST 1300 Pan European

Year

2008

Engine

Four stroke, longitudinally 90°V-four cylinder, DOHC, 4 valve per cylinder

Capacity

1261 cc / 76.9 cu-in

Bore x Stroke 78 x 66 mm
Compression Ratio 10.8:1
Cooling System Liquid cooled
Lubrication Wet sump
Engine Oil Semi-Synthetic,10W/40

Induction

PGM-FI electronic fuel injection, 36 mm throttle bodies

Ignition

Computer-controlled digital transistorized

Spark Plug NGK, CR7EH-9
Starting Electric

Max Power

118 hp / 87 kW @ 8000 rpm

Max Torque

117 Nm / 11.93 kg-m @ 6500 rpm

Clutch Wet, multiple discs, cable operated

Transmission

5 Speed

Final Drive Shaft
Frame Aluminum-alloy triple-box-section pressure cast dual-spar with cast aluminum-alloy swingarm
Front Suspension 45mm air-assist telescopic fork
Front Wheel Travel 117 mm / 4.3 in
Rear Suspension Single-side conventional damper with adjustable preload and rebound damping
Rear Wheel Travel 133 mm / 4.8 in

Front Brakes

2x 310 mm discs 3 piston calipers

Rear Brakes

Single 316 mm disc 3 piston caliper (ABS option available)

Front Tyre

120/70 ZR18

Rear Tyre

170/60 ZR17

Rake 26°
Trail 98 mm / 3.9 in
Dimensions Length 2282 mm / 89.8 in
Width     935 mm / 36.8 in - including panniers
Height  1332 mm / 52.4 in
Wheelbase 1491 mm / 58.7 in
Seat Height 790 mm  /  31.1 in

Dry Weight

 286 kg  /  631 lbs  -  ABS 289 kg / 637 lbs

Wet Weight 331 kg / 730 lbs

Fuel Capacity

 29 Liters / 7.7 US gal

Consumption Average

19.8 km/lit  /  46.7 mp/g

Standing ¼ Mile

11.6 sec

Top Speed

225 km/h / 139.8 mph
.

For those seeking long-distance comfort along with exemplary engine performance and superior handling, Honda presents the ST1300, a Sport Touring motorcycle which earns high marks from riders all around the globe.

The levels of performance encountered on the Honda ST1300, also known as the Pan European, move the touring experience to the highest point on any graphics while comfort and control where top priority when designing this touring machine.

Being one of the few works of art in the touring world, Honda’s famed ST1300 covers great distances while still providing the supreme combination of exhilarating performance, responsive behavior and limousine-worthy comfort.

Introducing stylish, aerodynamic bodywork elegantly integrating loads of carrying capacity while its unique three-step height-adjustable rider seat and push-button adjustable windscreen are present to make sure that any kind of rider can be accommodated in complete comfort and satisfaction given by the proper wind protection offered.

Completing the definition of sport touring, the ST1300 with its exceptional comfort features, carries its rider and passenger with their full load while still managing to provide rider confidence and positive feedback mile after mile.

As the miles gather up and confidence reaches great levels, the rider can use the high-powered fuel-injected V4 engine, advanced aluminum twin-spar frame, high-performance sports suspension and the linked braking system in order to really extract satisfaction and quickly pump adrenaline through his motorcyclist body.

The ST1300 is a true confidence provider and lets the true impression of an extremely capable touring bike, providing exceptional performance and sharp handling. The Pan European is all original, from its unique engine configuration to its strong chassis, bodywork and integrated panniers, everything on this bike is designed to function like a dream without the waking up part because reliability is one of its best qualities.

Honda made sure that their new creation would be a real torque producer while still revving like a sport bike by creating the 1261cc V4 and positioning it in line with the frame. The frame itself is and all-aluminum twin-spar construction while the all-aluminum swingarm completes the overall package and offers plush ride.

Comfort is obtained through the ideal seat and windscreen combination. With the push of a button, you can raise or lower the windshield and adjust the degree of tilt over 13 degrees. The comfy, supportive seat features three height settings as well as three fore-and-aft positions.

I really enjoyed the protection offered by the roomy cockpit given by the ST1300’s full-coverage which protected my body from the elements so once I got off the bike, I found myself looking forward for a next ride with this wonderful machine that actually made me feel like an executive and two wheels.

Overall, the package offered by Honda is absolutely outstanding. I have encountered a strongly developed motorcycle featuring impressive exterior design matched only by comfort, handling and performance.

I haven’t been riding like I did on the Honda for pretty a long time and I have to say that my excitement was completely justified and the reward measured more than I expected. The ideal touring machine and the definition of comfort have now a new name: Honda ST1300.

New for 2008

-Available in Candy Dark Red

Unique Features
-Powerful, liquid-cooled 1261cc longitudinally mounted V-4 engine delivers effortless acceleration and passing power.
-Programmed Fuel Injection (PGM-FI).
-Aluminum frame combines optimal rigidity and tuned flex to produce excellent handling, superb riding comfort and wonderful road feel.
-Linked Braking System (LBS).
-Touring features include full-coverage bodywork, three-way adjustable rider’s seat and two large 35-liter detachable saddlebags. Another feature includes a push button, motor-driven windscreen that adjusts to alter height and angle.

Engine/Drivetrain

-Compact, powerful 1261cc DOHC 90-degree V-4 engine with an oversquare bore and stroke of 78mm x 66mm and longitudinal engine-mounting improves power flow and drivetrain efficiency.
-The ST1300’s low center of gravity contributes to enhance low-speed handling. The 360-degree crank contributes to a very broad powerband. Two engine counterbalancers virtually eliminate primary and secondary vibration. Both gear-driven counterbalancer shafts are installed in the lower crankcase to the left side of the crankshaft. The first shaft is driven directly by the crankshaft at a 2:1 ratio. The second shaft is positioned below the first and is driven in the opposite direction by the first balancer shaft’s drive gear. The combination of these two balancers ensures a supremely comfortable ride for long-distance touring.
-Direct shim-under-bucket valve actuation system ensures high-rpm durability and allows 16,000-mile valve-maintenance intervals.
-Programmed Fuel Injection (PGM-FI).
-Electronic control unit (ECU) closed-loop emissions system utilizes two oxygen sensors to constantly deliver a precise air/fuel mixture, while two exhaust catalyzers further reduce emissions.
-Four-into-two stainless-steel exhaust system features a pair of attractive, triangular-section 5.4-liter mufflers with stainless-steel head shields. –High-output, air-cooled, 660-watt alternator is located between the cylinder banks, contributing to a shorter and more compact engine design.
-U-shaped aluminum radiator has excellent cooling efficiency, and a ring-type fan draws air through the radiator at low speeds to ensure stable operating temperatures for consistent performance and long engine life.
-Quiet and reliable shaft-drive system is virtually maintenance-free.

SUSPENSION

-Aluminum frame features a massive steering head casting and triple-box-section spars. The V-4 engine serves as a tuned, stressed frame member. The solid engine-mounting system utilizes specially designed hangers and carefully matched mounting bolts to provide both excellent road feel and minimal engine vibration.
-Lightweight, aluminum swingarm is carefully matched to the frame to provide an ideal balance of rigidity and tuned flex for optimal handling.
-Rigid, aluminum upper triple-clamps and a 45mm Honda Multi-Action System (HMAS) cartridge front fork provide excellent suspension control in a wide range of riding conditions.
-The rear suspension incorporates a single shock, which mounts directly on the swingarm. The shock offers 1.2 inches of spring preload adjustability.
-Linked Braking System (LBS).
-The ST1300’s 310mm stainless-steel, floating front-brake discs feature lightweight seven-spoke inner rotors, and a 316mm rear rotor saves another 10.5 ounces, further reducing unsprung weight.
-Silver wheels are three-spoke U-section cast-aluminum. The 5.0-inch-wide rear sports a large, low profile 170/60ZR-17 radial tire. The 3.5-inch-wide front wheel carries a 120/70ZR-18 radial tire.

Additional Features

-Three-position rider’s seat provides an adjustment range of 1.2 inches vertically and 1.0 inch horizontally. From the forward and lowest position, the seat can be moved up 0.6 inches and back approximately 0.5 inches to the middle position, and again by the same amount to the highest rear position.
-A motor-driven adjustable windscreen offers 7.4 inches and 13 degrees of adjustability for greater wind protection and touring comfort. A thumb-operated pushbutton on the left handlebar operates the windscreen motor. An additional 2.3 inches of manual adjustment is possible by repositioning the windscreen on the mounting brackets.
-Integrated lockable and detachable saddlebags hold 35 Litreseach (large enough for a full-face helmet). The saddlebags contain straps to limit bag opening to 90 degrees to better secure the contents. The straps are easily unbuckled when the bags are dismounted, permitting full access.
-Rugged, plastic-cover body-protector stays extend outward to protect the bodywork in case of a tip-over.
-Dual-section fuel tank carries 5.5 gallons of fuel in the conventional tank location with an additional 2.2 gallons located in a sub-tank located low in the chassis. This results in exceptional fuel capacity with a low center of gravity.
-Headlight features dual lenses with twin-filament H4 low/high beam bulbs and multireflectors.
-A convenient push button located on the left side of the fairing electrically adjusts the headlight height over a 2.5-degree range.
-Roomy cockpit and ergonomically designed dual-density seat offers true long-haul comfort.
-Attractive, lightweight two-piece aluminum handlebars.
-A locking left-side fairing pocket offers the carrying capacity of an automobile console; a weather-resistant vinyl lid covers the right-side pocket.
-Breakaway rear-view mirrors minimize damage in the event of a tip-over.
-Padded passenger grabrails.
-Convenient centerstand assist-lever folds neatly away when not in use.
-Integrated front and rear turn signals.
-Integrated ignition switch/fork lock. A single ignition key operates all locks.
-Transferable three-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
-Purchase of a new, previously unregistered Honda USA-certified unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider’s Club of America (HRCA).
Available Honda Genuine Accessories
-Touring Accessories: Removable Saddlebag Linear Set, Saddlebag Scuff-Pad Set, Knee-pad Set, Mirror Air-Deflector Set, Fairing Air-Deflector Set, and Tank Pad.
-Additional Accessories: 12-volt DC Accessory Socket, Heated Grips, Cycle Cover.
