Honda VF1000FS Bol D’or
|
. |
Make Model |
Honda VF1000FS Bol D’or |
Year |
1985 - 86 |
Engine |
Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder |
Capacity |
998 cc / 60.9 cu-in |
Bore x Stroke | 77 x 53.6 mm |
Cooling System | Liquid cooled |
Compression Ratio | 10.5:1 |
Induction |
4x 34mm CV type |
Ignition |
CDI |
Starting | Electric |
Max Power |
122 hp / 91 kW @ 10,000rpm |
Max Torque |
89.4 Nm / 66 lb-ft @ 8000rpm |
Transmission |
5 Speed |
Final Drive | Chain |
Front Suspension |
41mm air adjustable forks with dual Syntallic bushings, 3-way adjustable rebound damping and TRAC |
Front Wheel Travel | 155 mm / 6.1 in |
Rear Suspension |
Pro-link with 3-way adjustable rebound damping |
Rear Wheel Travel | 123 mm / 4.8 in |
Front Brakes |
2x 276mm discs 4 piston calipers |
Rear Brakes |
Single 276mm disc 1 piston caliper |
Front Tyre |
120/80 V16 |
Rear Tyre |
140/80 V17 |
Wheelbase | 1505 mm / 59.2 in |
Seat Height | 810 mm / 31.8 in |
Ground Clearance | 135 mm / 5.3 in |
Dry Weight |
238 kg / 524 lbs |
Wet Weight | 261 kg / 575 lbs |
Fuel Capacity |
23 Litres / 6 US gal |
Consumption Average |
36 mpg |
Top Speed |
241.4 / 150 mph |
Road Test |
Following the release of the VF1000FF in 1985, a
fully faired version was introduced, and the VF1000F2(F) was launched in April
1985.
The powerful 1000cc V-4 had been packaged into two super sports bikes and it was
now time to show that the VF could be a real sports tourer too.

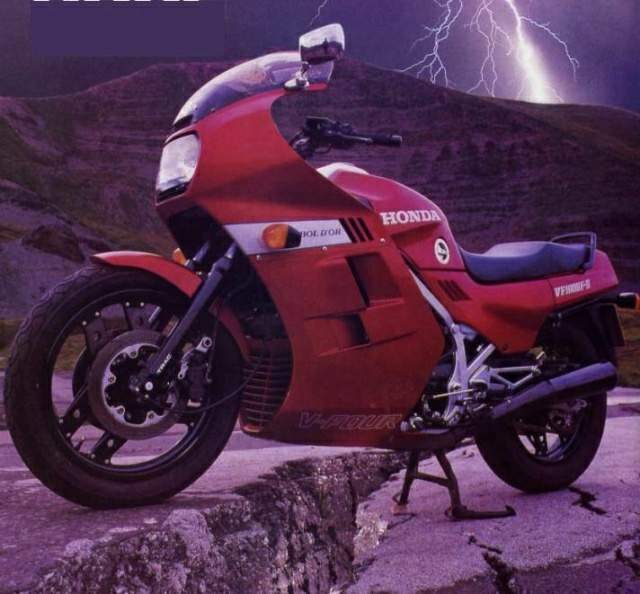

The 116bhp F2 included the same styling changes we had seen in the VF1000FF but Honda added a more aerodynamic full fairing which covered most of the engine, and changed the seat design to improve comfort for rider and passenger over long distances.
The colour scheme available was Silver or Red with "VF1000" in black and "FII" in red appearing below the pillion seat to the rear of the side panels on the silver model, with the graphics on the red model all in white.
The F2 has the name of the French endurance racing circuit "Bol d'or" across the top of the fairing behind the indicator, giving this VF it's Bol d'or nickname. An extra radiator is included to assist cooling and is integrated into the "wind tunnel" designed fairing. The fairing, designed to increase rider comfort and reduce drag, has a built in ventilation system and twin storage "pockets".
The cockpit was redesigned too with a centrally mounted fuel and coolant temperature gauge, new style speedometer and tachometer with yellow backgrounds. The twin headlights first seen on the VF1000R are also included on some models
Whilst suspension and braking specifications remain
the same as the VF1000F/FE, the F2 is the heaviest of all the VF's weighing
145 kg. Engine and frame modifications were carried over from the development of
the R and FF models, but the F2 still had chain driven cams.
Any corrections or more information on these motorcycles will be kindly appreciated. |
