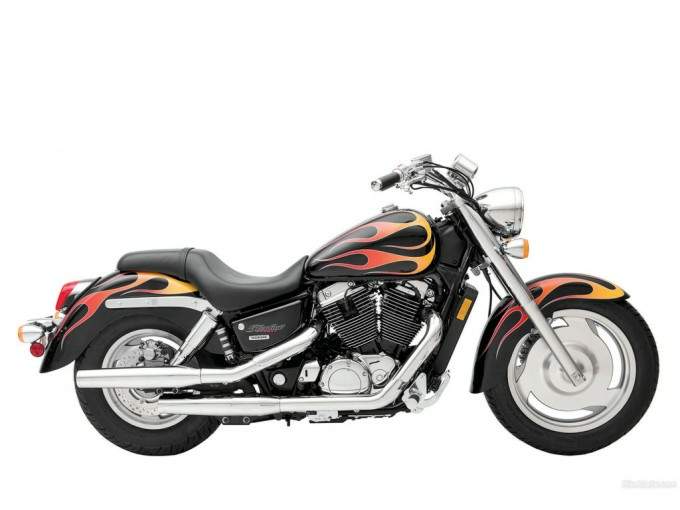

Honda VT 1100C2 Shadow Sabre

.

Make Model

Honda Shadow Sabre

Year

2007-09

Engine

Four stroke, 45°V-Twin, OHC, 3 valves per cylinder.

Capacity

1099 cc / 67.1 cub in.

Bore x Stroke

87.5 x 91.4 mm

Compression Ratio

8.5:1

Cooling System

Liquid cooled

Oil Capacity

3.8 L / 4 US quarts

Induction

2 x 36 mm Keihin  carbs.

Ignition

Solid-state digital - two spark plugs per cylinder

Starting

Electric

Max Power

67 hp / 49 kW @ 5500 rpm

Max Torque

91 Nm / 9.27 kgf-m / 67 lb-ft. @ 2700 rpm

Transmission

5 Speed

Final Drive

Shaft

Front Suspension

41mm stanchions, 160mm wheel travel.

Rear Suspension

Dual shocks, preload adjustable, 100mm wheel travel.

Front Brakes

Single 315mm disc 2 piston caliper

Rear Brakes

Single 276mm disc 1 piston caliper

Front Tyre

120/90-18

Rear Tyre

170/80-15
Wheelbase 1640 mm / 64.6 in
Seat Height 730 mm / 28.7 in
Ground Clearance 140 mm / 5.5 in

Dry Weight

261.0 kg / 575.4 lbs

Fuel Capacity

15 Litres / 3.9 US gal

Engine/Drivetrain

- The Shadow® Sabre™'s engine pumps out class-leading low-end and mid-range power for superb acceleration and gratifying roll-on performance.

- The engine's broad power delivery provides spirited performance and exceptional rideability around town or on the open road.

- Rubber-mounted engine with offset-dual-pin crankshaft provides perfect primary balance, enhances engine smoothness and delivers superior rider comfort.

- Three-valve cylinder-head design utilizes two spark plugs per cylinder for efficient combustion and high power at all rpm.

- Maintenance-free hydraulic valve-lash adjusters eliminate routine valve adjustments.

- Other maintenance-free features include digital ignition and automatic cam-chain tensioners.

- Dual 36mm constant-velocity carburetors offer crisp throttle response at all rpm.

- Reliable electric-starter system.

- Extensive chrome finishing of engine parts includes crankcase covers, clutch cover and left-rear engine cover.

- Black-finished crankcases and cylinders with buffed fin edges complete the custom street-rod look.

- Chromed dual-exhaust system enhances appearance and produces throaty exhaust note.

-Reliable five-speed transmission with carefully selected gear ratios to maximize acceleration

SUSPENSION

- Low 27.2-inch seat height, comfortable dragster-style seat and semi-swept handlebar combine to create a superbly comfortable riding position.

- Specially designed sturdy steel frame gives the Shadow Sabre a long, low, custom stance.

- Large 41mm extended front fork provides 4.7 inches of plush yet responsive travel.

- Dual chromed rear shocks have 3.9 inches of wheel travel and feature an advanced internal valve system for a comfortable ride.

- Front disc brake features a twin-piston caliper with a large-diameter 316mm rotor. Combined with the rear single-piston caliper and 276mm brake disc, brakes provide excellent stopping power.

- Strong cast-aluminum wheels.

- Wide, low 120/90-18 front tire enhances street-rod styling and contributes to a comfortable ride.

- Massive 170/80-15 rear tire offers a wide foot print and a radical custom look.

- Shaft final-drive system provides smooth, low-maintenance operation.



Additional Features

- Street-rod styling features chrome fork-leg covers, deeply valanced fenders and beautiful cast-aluminum wheels machined to a satin finish.

- Dragster-style seat boasts a low 27.2-inch seat height for flat-footed confidence during low-speed maneuvers.

- Rider comfort is enhanced with comfortable ergonomics and a firmly padded saddle.

- Large 4.2-gallon gas tank offers extended cruising range.

- Speedometer face features white background with large, easy-to-read numerals.

- Solid aluminum footpegs with wide rubber trim enhance the custom street-rod look.

- Polished aluminum handlebar switch housings and triple-clamp assembly.

- Comfortably padded large-diameter handgrips.

- Handlebar switches and controls use internationally approved ISO graphic symbols.

- Convenient push-to-cancel turn-signal switch.

- Powerful 55w/60w halogen headlight.

- Durable, maintenance-free 14-amp-hour battery.

- Transferable one-year unlimited-mileage warranty; extended coverage available with a Honda Protection Plan.

- Purchase of a new, previously unregistered Honda unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider's Club of America™ (HRCA®). Benefits include online access to the Honda Common Service Manual, six issues of the bimonthly Honda Red Rider™ magazine, travel discounts, trip routing, MSF reimbursement, plus access to the HRCA Web site (www.hrca.honda.com). Look for the HRCA support team at select off-road events across the country. For details on the HRCA, dealers should call (310) 783-3958, 8:30 a.m. to 5 p.m. Pacific Time.

 Available accessories

- Touring accessories:
Saddlebags, Touring Bag, Tank Belt, Backrest with Pad (two types) and Rear Carrier (two types).

- Chrome accessories:
Backrest Trim, Rider Floorboards, Radiator Guard, Radiator Trim, Sidecovers, Front Fender Guard Rail, Front Fender Extension, Rear Fender Extension, Lightbar, Spotlight Visors, Saddlebag Supports, Headlight Visor, Oil Filler Cap, Master Cylinder Cap, Handlebar Risers, Handlebar Clamps, Driveshaft Cover, Triple-Clamp Cover, Front Fender Ornament, Handlebar Levers, Clutch Lever Bracket, Lever Bracket Holders and Horn.

- Billet accessories:
Backrest Trim, Rider Footpegs, Passenger Footpegs, Passenger Floorboards, Driveshaft Bolt Cover, Front Tank Mount Cover, Dipstick, Oil Filler Cap, Master Cylinder Cap, License Plate Frame, Ignition and Clutch Covers, Handlebar Clamp, Caliper Caps, Rear Fender Rails and Handlebar Risers.

- Additional accessories:
Cycle Cover.

(Accessory availability and specifications subject to change without notice.)
