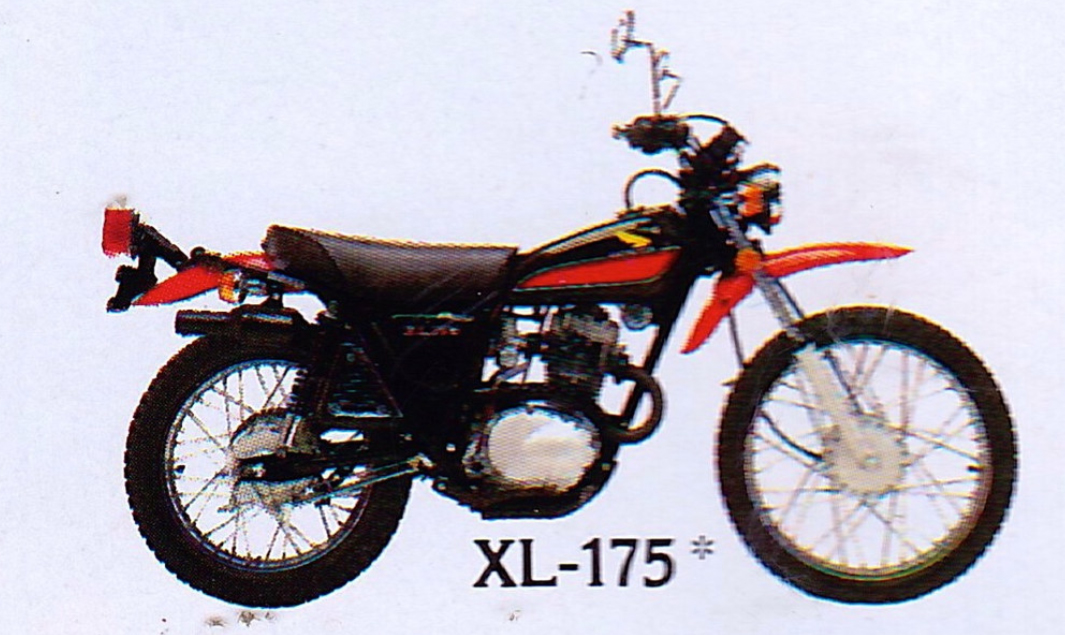

Honda XL 175

.

Make Model

 Honda XL 175

Year

 1977 - 78

Engine

 Four stroke, single cylinder, OHC, 2 valve

Capacity

 173 cc / 10.6 cu-in
Bore x Stroke 64 x 54 mm
Cooling System Air cooled
Compression Ratio 9.3:1
Lubrication Wet wimp

Induction

 Single 26mm Keihin

Ignition

 Inductive, breaker-points, battery-powered
Starting Kick

Max Power

14hp / 10.2 kW @ 9500 rpm

Max Torque

 11.6 Nm / 8.62 @ 8000 rpm
Clutch Wet multiplate

Transmission

 5 Speed
Final Drive Chain
Frame Single downtube, full cradle frame, centre-axle fork, swingarm suspension

Front Suspension

 38mm Showa air assisted forks
Front Wheel Travel 200 mm / 7.8 in

Rear Suspension

 Showa Pro-Link shocks
Rear Wheel Travel 165 mm / 6.5in

Front Brakes

 110mm drum

Rear Brakes

 110mm drum

Front Tyre

 2.75 x 21

Rear Tyre

 3.50 x 18
Rake 29.5°
Trail 132 mm / 5.2 in
Wheelbase 1360 mm / 53.5 in
Seat Height 800 mm /  31.5 in
Ground Clearance 180 mm / 7.5 in

Wet Weight

120 kg / 264 lbs

Fuel Capacity

 7 Litres / 1.8 US gal
.












Any corrections or more information on these motorcycles will be kindly appreciated.
