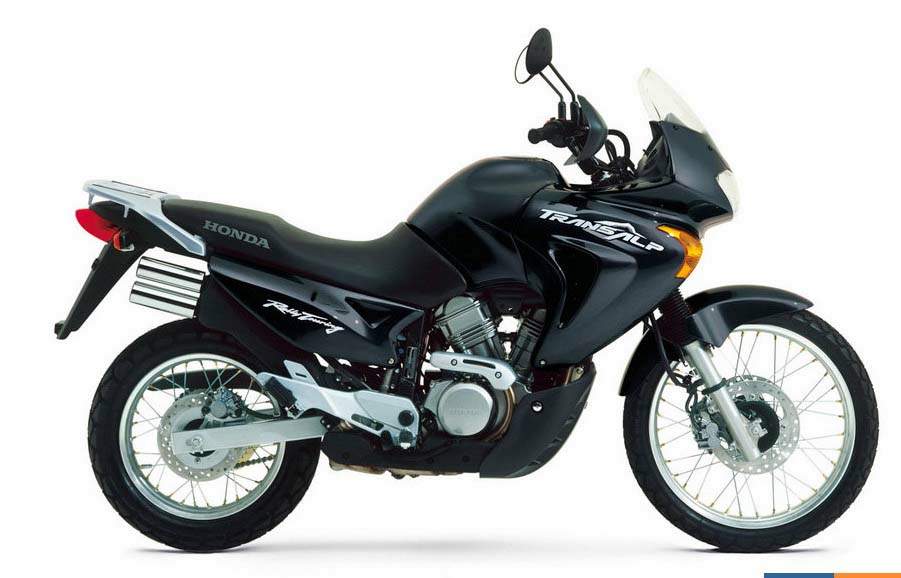

Honda XL 650V Transalp

Make Model	Honda XL 650V Transalp
Year	2006 - 07
Engine	Four stroke, 52^°V-Twin, SOHC, 3 valves per cylinder
Capacity	647 cc / 39.4 cu-in
Bore x Stroke	79 x 66 mm
Cooling System	Liquid cooled
Compression Ratio	9.2:1
Induction	2x 34 mm slanted flat-slide CV-type
Ignition	Digital transistorized with electronic advance
Starting	Electric
Max Power	52 hp / 39 kW @ 7500 rpm
Max Torque	54 Nm / 40 lb-ft @ 5500 rpm
Transmission	5 Speed
Final Drive	Chain
Frame	Semi-double-cradle; box-section steel tube
Front Suspension	41 mm leading-axle telescopic fork
Front Wheel Travel	220 mm / 8.6 in
Rear Suspension	Pro-Link with adjustable compression damping
Rear Wheel Travel	172 mm / 6.8 in
Front Brakes	2x 256 mm discs 2 piston calipers
Rear Brakes	Single 240 mm disc 1 piston caliper
Front Tyre	90/90-21
Rear Tyre	120/90-17
Dimensions	Length 2260 mm / 89 in Width 920 mm / 36.2 in Height 1315 mm / 51.8 in
Wheelbase	1505 mm / 59.3 in
Seat Height	843 mm / 33.1 in
Ground Clearance	192 mm / 7.6 in
Dry Weight	191 kg / 421.1 lbs
Wet-Weight	210 kg / 463 lbs
Fuel Capacity	19 Litres / 5.0 US gal
Consumption Average	19.4 km/lit
Standing ¼ Mile	13.4 sec
Top Speed	170 km/h / 105.6 mph

Designed to offer a uniquely European riding experience, the famous Transalp provides a balance of fun and adventure in a compact, easy handling package of performance. Its fully integrated bodywork and intelligently conceived accommodations provide a remarkably high level of day-to-day riding and touring comfort. And with a long-travel suspension to smooth out the rough spots, its hard-working 647cc liquid-cooled V-twin engine provides ample power to explore the upper reaches of mountain passes with the same ease and confidence it shows covering long distances on the highways. If your search for riding fun sometimes takes you off the beaten path, then the long-legged Transalp might be just the bike you need to get you where you want to go.

Giving stronger emphasis to the Transalp's sporty and adventurous nature, the new 2005/07 model features new detailing touches that really catch the eye. One of the first changes to be noticed is the new black alumite finish gracing its lightweight aluminium wheel rims. Sharing the same colour shade and semi-gloss finish as the dual-sport tyres they mount, these new rims project a tougher image that perfectly complements the Transalp's new colours.

Providing another detailed accent on this aggressive new black image, the inner rotor of the Transalp's rear disc brake has also been painted with a new matte black finish to match the front wheel hub and the black of the new rims, for a contribution to the bike's overall sense of functional good looks.Another attractive new design touch can be seen in the Transalp's new stainless steel dual exhaust ends. Tapering at the ends like air jets, these decorative new pieces also extend a more exhilarating tone to the Transalp's exhaust note.
