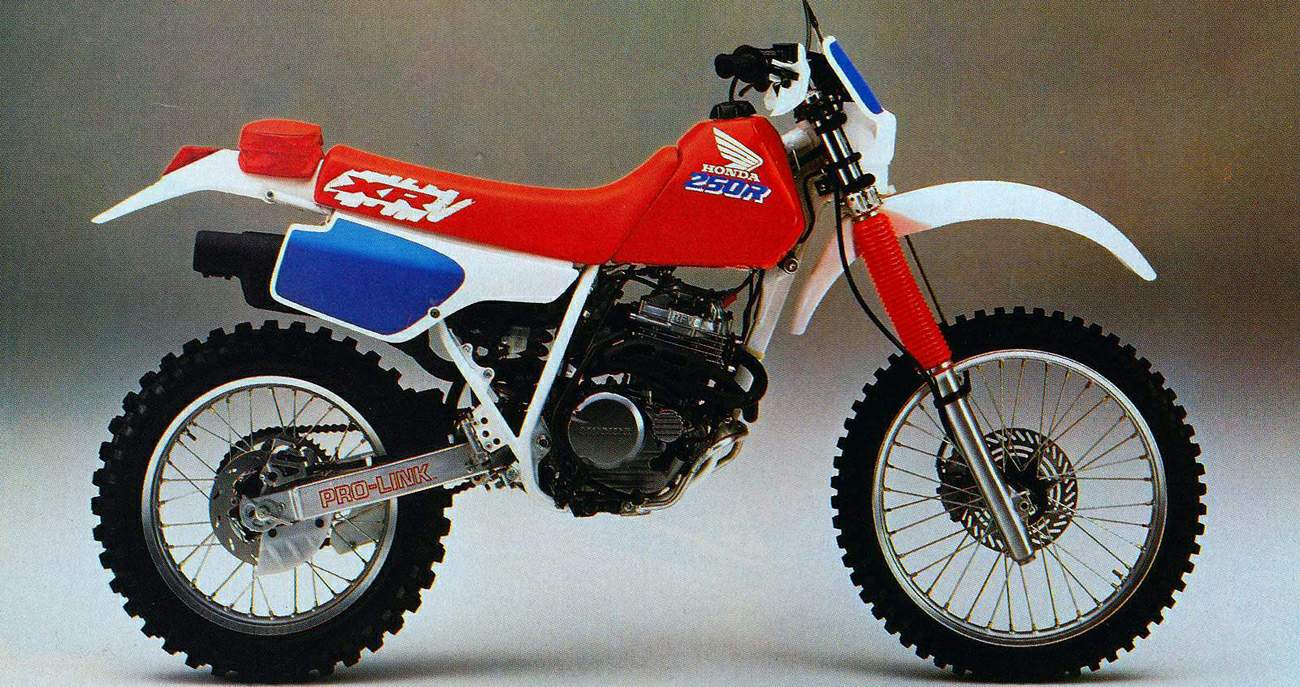

1990 Honda XR 250R

Make Model	Honda XR 250R
Year	1990
Engine	Four-stroke, single cylinder SOHC, 4 valve
Capacity	249 cc / 15.1 cu-in
Bore x Stroke	73 x 59.5 mm
Cooling System	Air cooled
Compression Ratio	10.0:1
Induction	Single 30mm carburator
Ignition	CDI
Spark Plug	NGK DPR 9Z
Starting	Kick
Max Power	30 hp / 21.9 kW @ 9000 rpm
Max Torque	24.5 Nm @ 7500 rpm
Transmission	6 Speed
Final Drive	Chain
Front Suspension	41 mm Air assisted telescopic forks
Front Wheel Travel	280 mm / 11.0 in
Rear Suspension	Pro-Link, adjustable compression and rebound
Rear Wheel Travel	280 mm / 11.0 in
Front Brakes	Single 240mm disc 2 piston caliper
Rear Brakes	Single 220mm disc 1 piston caliper
Front Tyre	80/100-21
Rear Tyre	110/100-18
Rake	26.5°
Trail	105 mm / 4.1 in
Dimensions	Length 2035 mm / 80.1 in Width 965 mm / 37.9 in Height 1100 mm / 43.3 in
Wheelbase	1420 mm / 55.9 in
Seat Height	905 mm / 35.6 in
Ground Clearance	315 mm / 12.4 in
Dry Weight	108 kg / 238 lbs
Wet Weight	112 kg / 247 lbs
Fuel Capacity	9 Litres / 2.4 gal
