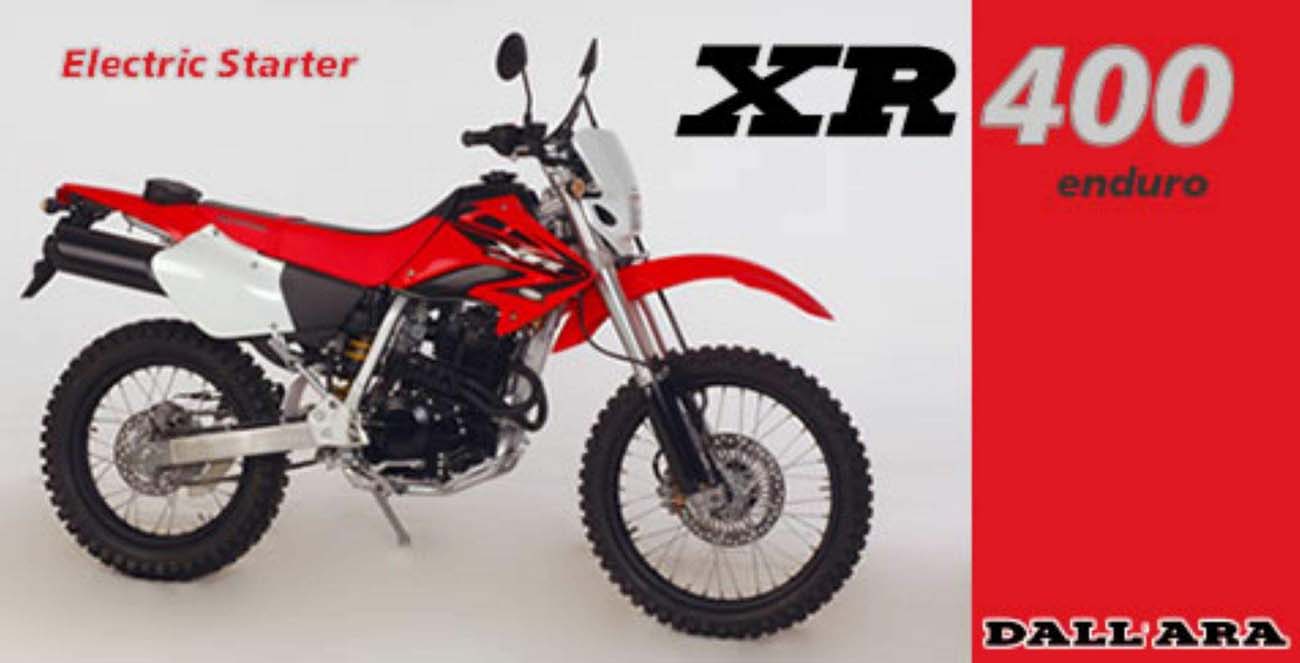

Honda XR 400R Dall'Ara

Make Model	Honda XR 400R Dall'Ara
Year	2005 - 06
Engine	Four stroke, single cylinder, Silent multi-link chain driven SOHC with rocker arms, 4 valve
Capacity	397 cc / 24.2 cu-in
Bore x Stroke	85 x 70 mm
Cooling System	Air cooled
Compression Ratio	9.3:1
Induction	Carburettor (Carburetor) type: Piston valve Throttle Bore: 38 mm (1.5 in)
Lubrication	Forced pressure (dry sump)
Oil Pump Type	Trochoid
Ignition	Solid state CDI with electronic advance
Starting	Electric
Max Power	34.3 hp / 24.8 kW @ 7000 rpm
Max Torque	33 Nm / 24.3 lb-ft @ 5500 rpm
Clutch	Multi-plate, wet
Transmission	5 Speed
Final Drive	Chain
Primary Reduction	2.826 (65/23)
Final Reduction	3.000 (45/15) *Note - Gearing varies from country to country. Some have 40/15 as standard.
Gear Ratio	1st: 2.615 (34/13) 2nd: 1.842 (35/19) 3rd: 1.400 (28/20) 4th: 1.120 (28/25) 5th: 0.926 (25/27))
Gearshift Pattern	Left operated return system 1 - N - 2 - 3 - 4 - 5
Frame	Semi-double cradle
Front Suspension	43 mm leading-axle Showa cartridge fork with 18-position compression and 12-position rebound damping adjustability
Front Wheel Travel	280 mm / 11.0 in
Rear Suspension	Pro-Link Showa single shock with spring preload, 16-position compression and 16-position rebound damping adjustability
Rear Wheel Travel	300 mm / 11.8 in
Front Brakes	Single 256 mm disc 2 piston caliper
Rear Brakes	Single 220 mm disc 1 piston caliper
Front Tyre	80/100-21
Rear Tyre	110/100-18
Caster Angle	25°
Trail	94 mm / 3.7 in
Dimensions	Length 2130 mm / 83.9 in Width 840 mm / 33.1 in Height 1240 mm / 48.8 in
Wheelbase	1425 mm / 56.1 in
Seat Height	930 mm / 36.6 in
Wet Weight	131 kg / 288.8 lbs
Fuel Capacity	9.5 Litres / 2.5 US gal
