Indian Chief Vintage

Make Model	Indian Chief Classic
Year	2009 - 10
Engine	Four stroke, V-twin, 2 valve per cylinder.
Capacity	1720 cc / 105 cu-in
Bore x Stroke	3.966 x 4.25 in.
Cooling System	Air cooled
Compression Ratio	9.0:1
Induction	Closed loop sequential port fuel injection
Ignition	Digital CDI
Starting	-Electric
Max Toque	100 lb-ft / 135.5 Nm
Transmission	5 Speed
Final Drive	Belt
Gear Ratio	1st 10.441:1 2nd 7.090:1 3rd 5.172:1 4th 3.984:1 5th 3.193:1 6th 2.771:1
Frame	High tensile steel, monoshock
Front Suspension	41 mm diameter
Front Wheel Travel	108 mm / 4.2 in
Rear Suspension	Single shock
Rear Wheel Travel	73 mm / 2.8 in
Front Brakes	Single 292mm disc 2 piston calipers
Rear Brakes	Single 292mm disc 1 piston calipers
Front Tyre	130/90-16
Rear Tyre	150/90-16
Trail	150 mm / 5.9 in
Dimensions	Length 2552 mm / 100.5 in Width 1028 mm / 40.5 in Height 1282 mm / 50.5 in
Wheelbase	1737 mm / 68.3 in
Seat Height	680.8 mm / 27.2 in
Dry Weight	330 kg / 728 lbs
Fuel Capacity	20.8 Litres / 5.5 Gal

The new Classic is the entry level Chief and is the only Chief model available with short fenders. It features the Indian script tank logo and is available in standard Indian Red or Thunder Black. Optional colors are also available in Dark Water Blue or Starlight Silver. The price starts at $25,999.

All Chiefs feature a 105 cubic inch PowerPlus V-Twin powertrain with electronic closed loop sequential port fuel injection. Engine cylinders are Nikasil plated and the stainless stell exhaust system is an integrated 3-way catalytic converter with heated oxygen sensors.

A six-speed Baker transmission delivers power through the belt drive. Stopping is achieved via Brembo 4-piston calipers, with 11.5" dual rotors up front. Standard 5.5-gallon tank helps extend cruising range. Seats are all-leather and built to exacting specifications.

Model Features

Styling
Chromed tear drop Halogen Headlamp
Short fenders
Die cast console - color matched
Black and polished engine with chrome covers
Chromed spoke wheels
Available billet wheels
Traditional black wall tires
Two into one stainless steel exhaust system with three way catalytic converter installed and chromed shields
Leather & fringe options available
Powertrain
Air cooled, pushrod, Power Plus 105ci engine
Closed loop, sequential, port injection with heated oxygen sensors
Six speed transmission

Chassis
Seat: solo seat available in black and tan leather
5.5 gallon fuel tank
Brembo brake system with dual floating rotors and 4 piston calipers in the front and single floating rotor and two piston caliper in the rear.
Two accessory 12 V outlets
Indian Script tank design

Electrical
Tank mounted analog speedometer and multi function digital display
Charging system 42 Amps
Lamps: Tear drop head lamp, glass front fender light
There are no electrical relays in the system

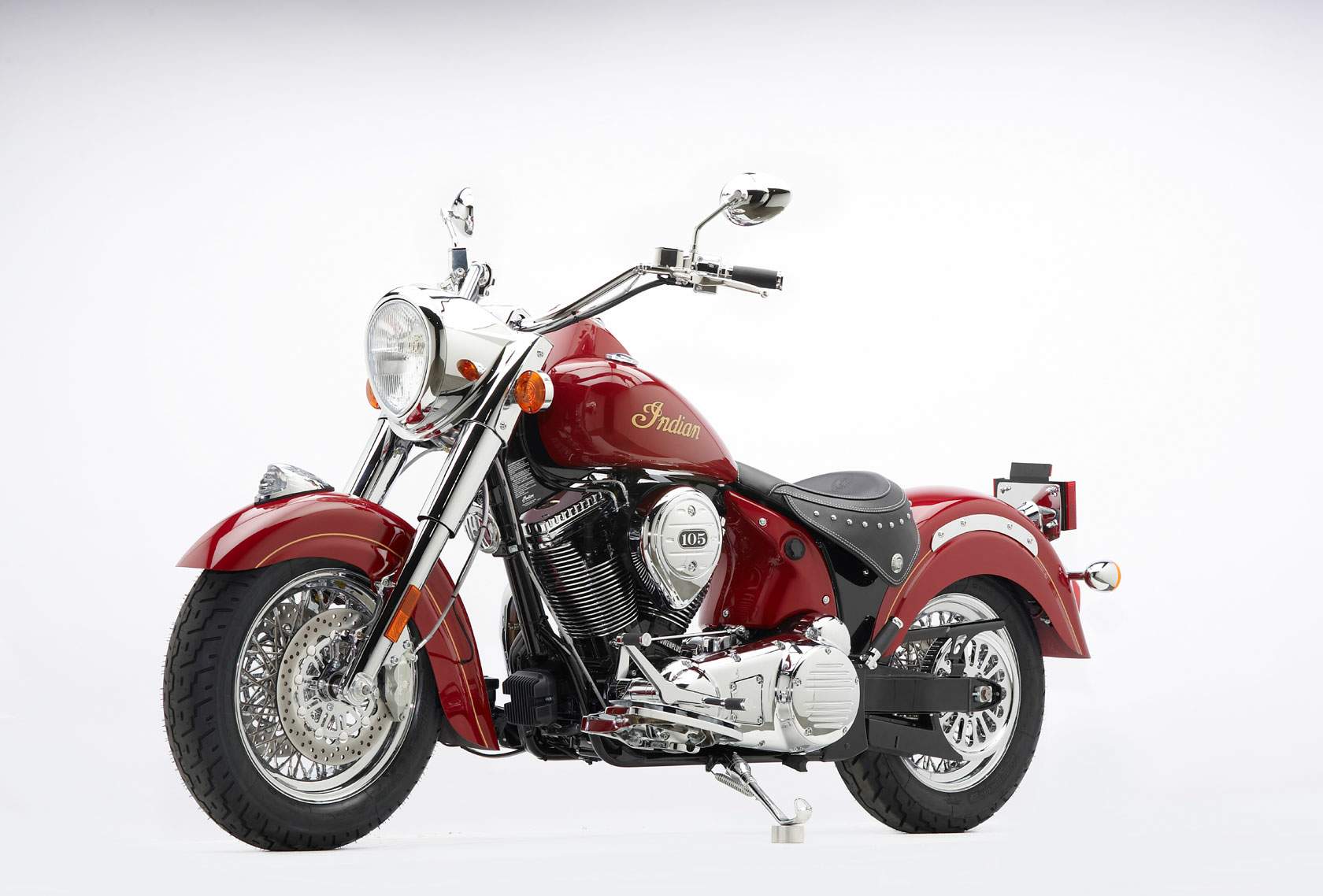

Indian Chief Classic
