Indian Chieftain Limited

Make Model	Indian Chieftain Limited 116
Year	2020
Engine	Thunder Stroke 116, 49˚ V-Twin
Capacity	1890 cc / 115 cub in
Bore x Stroke	103.2 x 113mm
Compression Ratio	11.0:1
Cooling System	Air / Oil cooled
Exhaust	Split dual exhaust with cross-over
Induction	Electronic fuel injection, closed loop, 54 mm bore
Starting	Electric
Max Toque	168 Nm / 126 lb-ft @ 2900 rpm
Clutch	Wet, multi-plate
Transmission	6 Speed
Final Drive	Belt, 152 tooth
Gear Ratio	1st 9.403 : 1 2nd 6.411 : 1 3rd 4.763 : 1 4th 3.796 : 1 5th 3.243 : 1 6th 2.789 : 1
Final Drive Ratio	2.2:1
Frame	High tensile steel, monoshock
Front Suspension	46mm Telescopic forks
Front Wheel Travel	119 mm / 4.7 in
Rear Suspension	Single shock, air adjustable
Rear Wheel Travel	114 mm / 4.5 in
Front Brakes	2 x 300mm Floating rotor 4 piston calipers
Rear Brakes	Single 300mm floating rotor 2 piston calipers
ABS	Individual front and rear control with ABS
Front Wheel	Cast 19″ x 3.5″
Rear Wheel	Cast 16″ x 5.0″
Front Tyre	130/60B19 61H Dunlop American Elite
Rear Tyre	180/60R16 80H Dunlop Elite 3
Rake	25°
Trail	150 mm / 5.9 in
Dimensions	Length 2506 mm / 98.7 in
Wheelbase	1668 mm / 65.7 in
Seat Height	650 mm / 25.6 in
Ground Clearance	130 mm / 5.1 in
Dry Weight	362 kg / 798 lbs
Wet Weight	376 kg / 830 lbs
GVWR	628 kg / 1385 lbs
Fuel Capacity	20.8 Litres / 5.5 US gal

TAKE THE LEAD
With an extensive package of premium amenities, the impressive power of the Thunder Stroke 116 V-Twin engine and unmatched handling, being out in front comes naturally to the Chieftain Limited.

CHROMED OUT STYLE
A bike that looks as good as it performs, the Chieftain Limited features a restyled fairing, slammed saddlebags, a 19” front wheel and new badging.

INDIAN MOTORCYCLE RIDE COMMAND
The largest, fastest, most customizable system on two wheels, it features turn-by-turn navigation with intuitive destination search capabilities, Bluetooth connectivity, vehicle information, plus connected traffic and weather overlays to keep you on the road longer.

MODERN. AGGRESSIVE.
LED lighting from nose to tail and a lowered stance complete the custom-inspired look.

ADVANCEMENTS THAT KEEP DRIVING FORWARD
When it comes to power and comfort, the Chieftain Limited is in a class of its own.

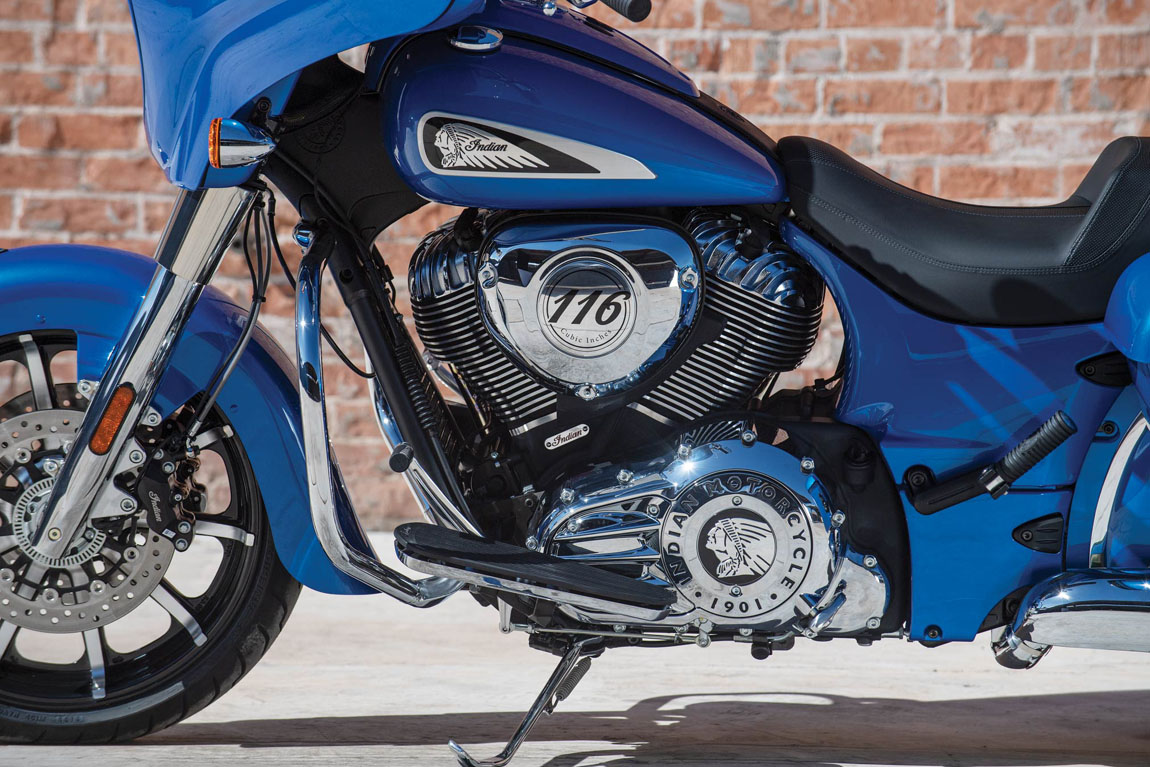

THUNDER STROKE 116 V-TWIN ENGINE
The powerful Thunder Stroke 116 engine produces 126 ft-lb of torque at low RPM and a responsive ride at any speed.

RIDE WITH CONFIDENCE
Outstanding steering geometry and a lightweight cast aluminum frame combine to provide responsive handling and agile cornering.

ROGUE SEAT
The Chieftain Limited’s streamlined profile is enhanced by a gunfighter style seat.

EVERYTHING YOU NEED AND MORE
The Chieftain Limited is packed with all of the premium features and easy-to-use technology that take your ride to the next level.

PREMIUM AUDIO
Hear every note with high-output speakers in the fairing that deliver 100-watts of crystal-clear audio. And the dynamic equalizer automatically adjusts for road, wind, and engine noise. Image shows model equipped with PowerBand Audio upgrades.

FEATURES FOR THE WIN
The Chieftain Limited comes standard with keyless ignition, cruise control, ABS and tire pressure monitoring.

PUSH-BUTTON POWER WINDSHIELD
With the push of a handlebar-mounted button, this flare windshield will raise or lower to your preferred position.
