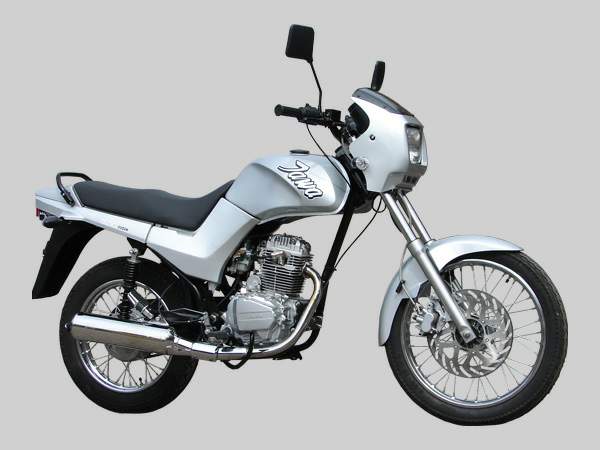

Jawa 125 Travel

.



Make Model.

Jawa 125 Travel

Year

1997

Engine

Four stroke, single cylinder, 2 valves

Capacity

124 cc / 7.6 cu in
Bore x Stroke 56.5 x 49.5 mm
Compression Ratio 9.0:1
Cooling System Air cooled

Induction

Carburetor

Ignition

Electronic

Starting

Electric & kick

Max Power

9.2 kW / 12 hp @ 8200 rpm

Max Torque

9.2 Nm / 0.94 kgf-m / 6.8 ft. lbs @ 7000 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Cartridge forks

Rear Suspension

Dual shock absorbers

Front Brakes

Single Ø265 mm disc, 2 piston caliper

Rear Brakes

Drum Ø160 mm disc

Front Tyre

1.85-18"

Rear Tyre

3.50-16"

Dimensions

Length: 2130 mm / 83.9"

Width:     788 mm / 31.0"

Wheelbase

1370 mm / 53.9"

Seat Height

800 mm / 31.5"

Dry Weight

124 kg / 273 lbs

Fuel Capacity

14 L / 3.6 US gal
