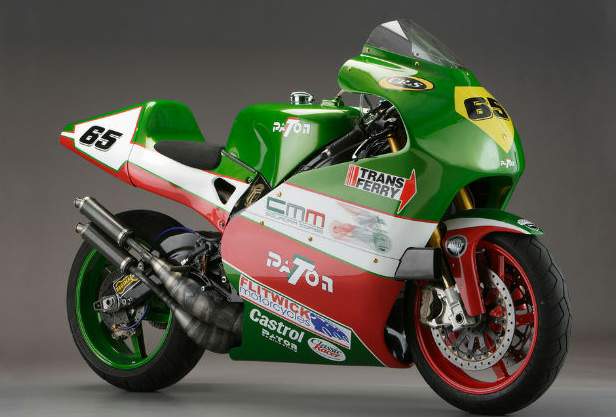

Paton PG500RC

.

Make Model

Paton PG500RC

Year

2001

Engine

Two stroke V-70° twin cylinder

Capacity

498.4 cc / 30.4 cub in
Bore and Stroke 54 x 54.4 mm

Compression

15.0:1

Carburetor

4 x Keihin 36 mm
Cooling Liquid cooled
Ignition Digital CDI with Bike Walbro 400 battery
Starting Push
Clutch Dry, multiplate

Max Power

140 kW / 190 hp @ 12100 rpm

Max Torque

110 Nm / 11.2 kgf-m / 81.1 ft.lb @ 11800 rpm

Transmission 6 Speed, constant mesch
Final Drive Chain
Frame Paton Cagiva V594 material, double angled beam aluminium

Wheelbase

1400 mm / 55.1 in

Front Suspension

Öhlins upside-down, 42 mm fully adjustable

Rear Suspension

Öhlins fully adjustable

Front Wheel

3.5 x 17" alloy rim

Rear Wheel

6.0 x 17" alloy rim

Front Brakes

320 mm Double disc, carbon, 4-piston Brembo caliper

Rear Brakes

220 mm Single disc with 2-piston Brembo caliper, stainless steel

Dry Weight

135 kg / 298 lbs

This bike in the first year named PG 500 R (2000) uses the double beam aluminum frame and a swingarm "Paton LM Gianetti", while in the second year named PG 500 RC passes to "Paton Cagiva V 594 in Anticorodal material", changing also slightly livery, where the tank and the tail inspired by the Paton C10 / 5 are no longer used, but a more rounded tank and a higher tail are used.

It also differs from the previous model also due to the absence of the radiator slits and the lower fairing, which is wider and laps both wheels, while the fairing is higher and more protective.
In two years of participation he managed to collect only 1 point thanks to the 15th place of Paolo Tessari at the 2000 German Grand Prix .

Giuseppe Pattoni's team made its first steps in motorcycle competition with a young Mike Hailwood in the saddle of modified 125 and 175cc machines, gaining a place at the Tourist Trophy, before Paton stepped up its competition activity in the 1960's with the development of their 350 and 500cc machines.

A fourth place in 1966 Nations Championship and a second and third place the year after in the same competition, helped bring the Paton name into the international arena, and the team narrowly missed out on their first GP win in Spain, with Angelo Bergamonti at the helm, when the bike suffered mechanical failure.

The teams 350 and 500cc machines brought in Paton's golden period, and helped establish Pattoni as one of the best engineers in the business, as the team battled against the untouchable Giacome Agostini on the MV Augusta.

The 70's saw Pattoni's son Robert join the team, as they made the switch to a two-stroke configuration, in order to challenge the emerging Japanese manufacturers with their seemingly endless budgets.

In 1997 IRTA dropped a bombshell when they judged the team not fast enough to participate in the World Championship1997 – ending the teams record of competing in every 500cc Grand Prix from 1967.

Despite the death of his father in 1999, Roberto continued to develop the teams racing motorbikes, but the team would score only one point in the 2000 World Championship, as a wildcard entry, when Paolo Tessari finished fifteenth at the Sachsenring on the teams PG500R machine.
