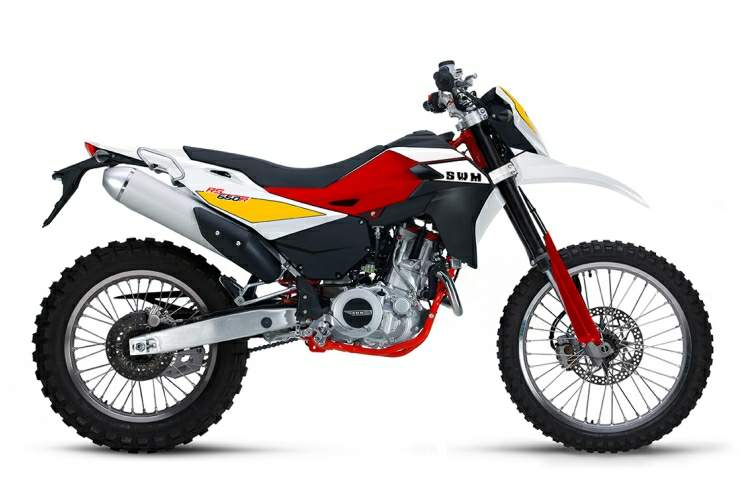

SWM RS 650 R

Make Model.	SWM RS 650 R
Year	2015-16
Engine	Single cylinder, four stroke, DOHC, 4 valve
Capacity	600 cc / 36.6 cu in
Bore x Stroke	100 x 76.5 mm
Cooling System	Liquid cooled
Compression Ratio	12.4:1
Lubrication	Dry sump with oil pump and cartridge filter
Induction	EFI, Mikuni D45
Ignition	Electronic, inductive discharge, with adjustable advance (digital control)
Spark Plug	NGK CR8EB
Battery	12V 12Ah
Starting	Electric with automatic decompressor
Max Power	40 kW / 53.6 hp @ 7500 rpm
Max Torque	53.5Nm / 38.7 ft lb @ 6500 rpm
Clutch	Wet, multiplate, hydraulic control
Transmission	6-Speed, constant mesh
Final Drive	Chain
Gear Ratio	1^st 2.615 (34/13) / 2^nd 1.812 (29/16) / 3^rd 1.350 (27/20) / 4^th 1.091 (24/22) / 5^th 0.957 (22/23) / 6^th 0.880 (22/25):1
Frame	High strength steel single beam double cradle main frame; rear frame in light alloy
Front Suspension	Upside-down telescopic hydraulic fork with forward axle; compression and rebound damping adjustment, Kayaba
Front Wheel Travel	210 mm / 8.3 in
Rear Suspension	Progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment, compression and rebound damping adjustment (compression high & low speed), Kayaba
Rear Wheel Travel	269 mm / 10.6 in
Front Brakes	Ø260 mm Fixed disc with hydraulic control and floating caliper
Rear Brakes	Ø220 mm Floating disc, with hydraulic control and floating caliper
Wheels	Light alloy
Front Rim	1.60 x 21"
Rear Rim	2.15 x 18"
Front Tyre	90/90-21" Goldentyre GT201
Rear Tyre	140/80-18" Goldentyre GT201
Rake	27°
Trail	115.1 mm / 4.53 in
Dimensions	Length: 2281 mm / 89.8 in Width: 820 mm / 32.3 in (with mirrors) Height: 1171 mm / 46.1 in
Wheelbase	1506 mm / 59.3 in
Ground Clearance	249 mm / 9.8 in
Seat Height	899 mm / 35.4 in
Dry Weight	144 kg / 318 lbs
Fuel Capacity	12 L / 3.2 US gal
