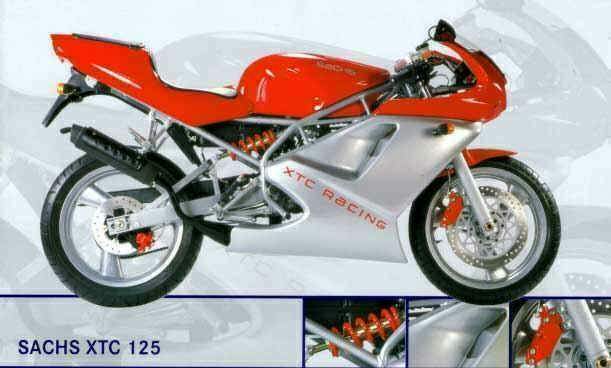

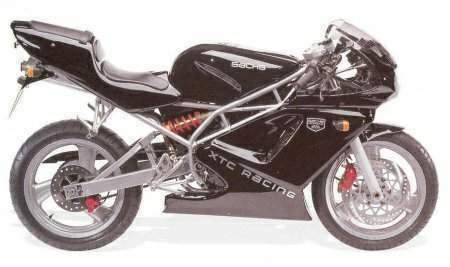

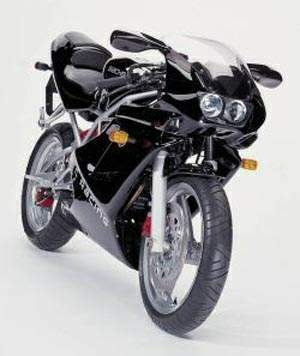

Sachs XTC-Racing 125

.

Make Model

Sachs XTC-Racing 125

Year

1998-01

Engine

Two stroke, single cylinder

Capacity

124.5 cc / 7.6 cu-in
Bore x Stroke 41 x 47 mm
Cooling System Liquid cooled
Compression Ratio 10.7:1

Induction

26mm Mikuni

Starting

Kick

Max Power

13.4 hp / 9.9 kW @ 8650 rpm

Max Torque

13 Nm / 9.5 lb-ft @ 7750 rpm

Transmission

6 Speed
Final Drive Chain

Front Suspension

Hydraulic forks, 120mm wheel travel

Rear Suspension

Monoshock, 100mm wheel travel.

Front Brakes

Single 316mm disc 2 piston caliper

Rear Brakes

Single 220mm disc 2 piston calipers

Front Tyre

110/70-17

Rear Tyre

150/70-17

Dry Weight

123 Kg / 271 lbs

Fuel Capacity

20 Litres / 5.2 US gal
.
