Victory Vision Street Arlen Ness Signature



Make Model

Victory Vision Arlen Ness

Year

2010 - 11

Engine

Four stroke, 50° V twin SOHC, 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters

Capacity

1731 cc / 105.6 cu-in
Bore x Stroke 101 x 108 mm
Cooling System Air/oil cooled
Compression Ratio 9.8:1

Induction

Electronic Fuel Injection with 45mm throttle bodies

Ignition

Digital
Starting Electric
Exhaust

Split dual exhaust with crossover

Clutch Wet, multi-plate

Transmission

6 Speed
Final Drive Carbon Fiber Reinforced Belt

Front Suspension

43mm Inverted cartridge telescopic fork, 130mm wheel travel

Rear Suspension

Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage 120mm wheel travel, preload adjustable spring

Front Brakes

2x 300mm floating rotor 3 piston caliper

Rear Brakes

Single 300mm floating rotor 2 piston caliper

Front Tyre

130/70 R18

Rear Tyre

180/60R16
Seat Height 673 mm / 24.5 in

Dry Weight

364 kg / 800 lbs

Fuel Capacity

22.7 Litres /  6.0 US gal

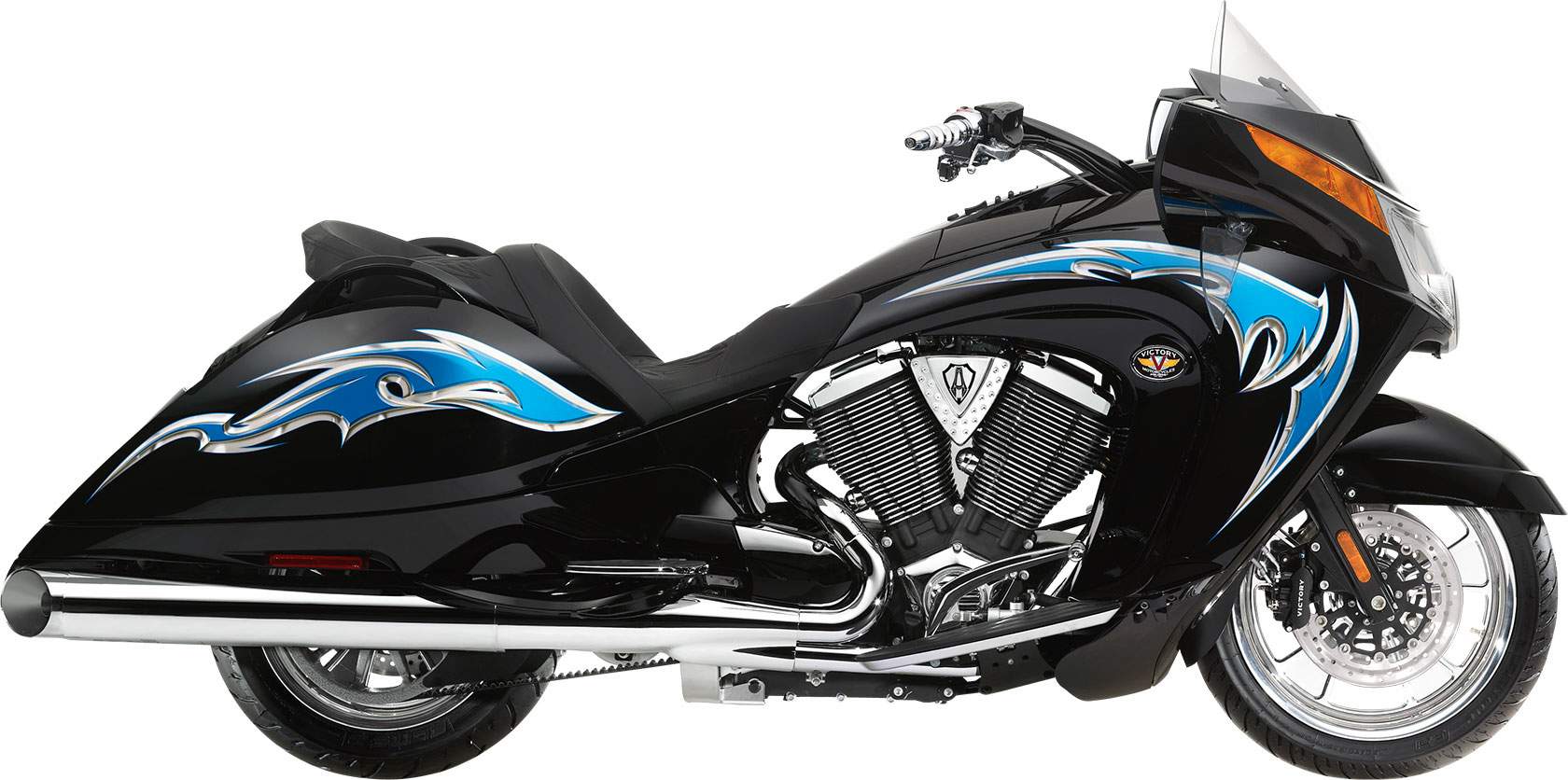

The Victory Vision, already one of the coolest touring motorcycles around, has now got a style update from Arlen Ness, and his son Cory. Launched at a time when Victory Motorcycles are celebrating their 10th Anniversary, the Ness Signature Series Victory Vision looks even cooler than the ‘normal’ Vision, though it does cost all of US$25,000.

The Ness Signature Series Victory Vision is still powered by Polaris’ fuel-injected, air-and-oil cooled, SOHC eight-valve 1731cc ‘Freedom’ V-twin, which produces 92 horsepower and 147Nm of torque. The gearbox is also the same six-speed unit and the fully adjustable suspension remains unchanged. However, the Ness Vision gets bits like custom-made billet wheels and leather seats, an adjustable electric windshield, a fancy radio/stereo and a special paintjob.

- Ness Graphics
-Ness Hot Rod billet wheels
-Numbered engine plate
-ARLEN NESS SIGNATURE SERIES display on radio screen
-Ness Key badge
-Leather stitched seat
-Ness logo low windscreen
-Diamond cut engine
-Ness engine covers
-Ness billet grips
-Ness shift and brake peg
-Electric windshield
-Lit badges
-Black body panels
-Black accent panels
-Black forks
-Black hand controls
-Black tip over protection
-Black passenger handles
-Black instrument cluster
-Black anodized belt guard
-Black license plate mount
-Chrome handlebars
-Chrome driver boards
-Chrome passenger boards
-Chrome shift lever
-Chrome brake lever
-Chrome handlebar ends
-Chrome side stand

Features & Benefits

• Freedom 106 Cubic Inch V-Twin Engine
• Gorgeous diamond-cut cylinders and cylinder heads
• Ness custom billet wheels
• Custom leather stitched seats
 Limited edition
• Ness billet engine cover
• Arlen Ness designed paint
• Chrome
• Ness graphics
• Ness display on radio
• Ness logo low windshield
• Ness billet grips
• Ness shifter and brake pedal
• Electric windshield
• Lit badges
• Blacked out



Victory Vision Arlen Ness

.

Make Model

Victory Vision Arlen Ness

Year

2010-11

Engine

Four stroke, 50° V twin SOHC, 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters

Capacity

1731 cc / 105.6 cu-in
Bore x Stroke 101 x 108 mm
Cooling System Air/oil cooled
Compression Ratio 9.8:1

Induction

Electronic Fuel Injection with 45mm throttle bodies

Ignition

Digital
Starting Electric
Exhaust

Split dual exhaust with crossover

Clutch Wet, multi-plate

Transmission

6 Speed
Final Drive Carbon Fiber Reinforced Belt

Front Suspension

43mm Inverted cartridge telescopic fork, 130mm wheel travel

Rear Suspension

Single, mono-tube gas forged and cast aluminum w/ rising-rate linkage 120mm wheel travel, preload adjustable spring

Front Brakes

2x 300mm floating rotor 3 piston caliper

Rear Brakes

Single 300mm floating rotor 2 piston caliper

Front Tyre

130/70 R18

Rear Tyre

180/60R16
Seat Height 673 mm / 24.5 in

Dry Weight

364 kg / 800 lbs

Fuel Capacity

22.7 Litres / 6.0 US gal

Modern, luxury touring from the godfather of custom.

The Victory Vision is already a standard setting touring motorcycle that leaves a lasting impression on riders. Now, the Arlen Ness Signature Vision Tour Motorcycle is here to up the stakes a bit more. This Ness Vision V-Twin motorcycle features a distinctive paint scheme heavy on the black, plenty of chrome for contrast, and accessories straight from the Ness collection.

Take home the touring comfort and control of the Victory Vision with the signature style of the legendary Arlen Ness. A chopper builder for decades, Ness and his family has been producing custom designs for the Victory lineup for several years. These bikes combine the performance prowess of Victory V-Twin motorcycles with their own unique takes on style and design. If you really want to stand out in a crowd, drive a Ness Signature motorcycle.

Featuring the Victory 106 cubic-inch Freedom V-Twin engine that is standard across the line, you get the benefit of an engine producing 97 horsepower and the customized styling of Arlen Ness at your disposal.

NESS SIGNATURE SERIES MODELS

The Victory lineup is the first in motorcycle history to include limited-edition custom bikes from three generations of custom bike builders. The legendary Arlen Ness, his son Cory, and Cory's son Zach have each styled a Ness Signature Series model that will be produced in limited numbers and will include a numbered plate with a facsimile of the customizer's signature.

oThe Cory Ness Signature Series Victory Cross Country features numerous Ness chrome or billet accessories, diamond-cut cylinders, billet wheels, a custom suede seat, Sunset Red paint with custom graphics designed by Cory, and more.

oThe Zach Ness Signature Series Vegas 8-Ball is the first Victory production model styled by the Ness family's up-and-coming young customizer. Among his custom creations to date, Zach previously customized a Victory Kingpin that gained widespread media attention and was featured at bike shows across North America. The 2011 Zach Ness model features several Ness accessories, suede black paint with custom graphics designed by Zach, a stitched custom leather seat, and more.

The Victory Arlen Ness Vision makes 1,000-mile Iron Butt trips easy. This is a spectacular, full-featured luxury-touring bike that spoils riders with comfort and convenience, and thrills riding enthusiasts with its power, ride and handling.

PROVEN OUTSTANDING RELIABILITY

Victory has a track record of consistently outstanding reliability and dependability, which has led to the industry's highest customer satisfaction ratings. This proven reliability, along with the new transmission design, allows Victory to recommend extended oil service intervals for 2011 drivetrains.

oThe recommended oil change interval for 2011 models is every 5,000 miles (8,000 km).

oLess-frequent oil changes results in a lower cost of ownership.

NEW TRANSMISSION

The Victory drivetrain team scrutinized every component of the engine and transmission and fine-tuned the designs and performance of numerous parts. Approximately 40% of the drivetrain is new for 2011, with the transmission receiving so many improvements it is virtually a new transmission.

The changes: improved manufacturing efficiency and quality assurance; enhanced drivetrain's already-impressive reliability; improved engine performance; and, for riders, improved ridability and delivered a more appealing-sounding transmission.

oIn terms of operating sound, selected modulation frequencies have been eliminated. This produces a more-appealing sound - consistently in each gear. In 4th and 6th gears in particular, gear whine has been reduced.

oDriveline lash has been reduced by 66%.

o"Neutral Assist" has been added to make it easier for a rider to shift into neutral when stopped. This will reduce the rider's effort, will reduce clutch wear and will lessen the performance demands on the oil.

ENHANCED INSTRUMENTATION

All cruisers now have instrumentation similar to that of the Victory Cross Roads, which provides a rider with a wealth of information in one, easy-to-read location. The new instrumentation includes:

o An analog speedometer, which may be set to show MPH or KPH.

oBlue backlighting.

oA large LCD that displays: Clock (time of day is viewable at all times), gear position, tachometer and diagnostic readouts for Victory dealership service technicians.

o The gauge face includes lights such as high-beam and neutral indicators and the oil warning light. Cruisers no longer have these indicator lights atop the triple clamps.

oThe Cross Roads instrumentation also has an always-viewable fuel gauge.

CHASSIS CHANGES ACROSS THE LINEUP

All brake calipers, rotors, lower belt guards, and floorboards are black.

oAll left- and right-hand switch cubes are black, as are the audio control switch block and cruise control switch block.

o The triple clamp is black on all models except the Vegas Jackpot (which retains its chrome triple), and the Victory Cross Roads (which retains its brushed finish).

o A new side stand on each model features an integrated hooked-end design for easy locating and easy control of the side stand.

o All cruiser exhausts have a larger outlet for improved sound quality and a lower exhaust note.

Victory Arlen Ness Vision Model Highlights

•Nuclear Sunset with custom Ness flamed graphics

•Signature chrome from nose to tail

•Hot Rod Ness billet wheels

•106 cubic-inch Freedom V-Twin Engine

•29 gallons of trunk and saddlebag capacity

•Dual-zone heated seats and handgrips

Victory Arlen Ness Vision Features and Benefits

NUCLEAR SUNSET PAINT AND CUSTOM NESS FLAMED GRAPHICS
Maybe you can't be Arlen Ness, but you can now own one of his brilliant custom painted creations. Basking in the glow of Arlen's flame graphics, it's almost like riding with the master himself.

HOT ROD NESS BILLET WHEELS
High performance wheels front and rear send out a bold custom styling message with every revolution.

FLAMED NESS ENGINE COVERS
Nestled between the diamond-cut cylinders sits the crown jewel of Arlen's Custom Vision Tour - fully flamed out engine covers that direct the eye toward the heart of the machine and set the theme for the rest of the bike.

NESS FLAMED CHROME BILLET GRIPS AND CHROME GRIP ENDS
A true artist with motorcycles as his medium, Arlen pays strict attention to every chrome-inspired detail. Even the billet grips become an opportunity for signature flame. Chrome grip ends cap off the bike's overall chrome treatment.

DIAMOND CUT ENGINE
The Ness family wanted to ensure that the Freedom V-Twin at the heart of the custom Vision Tour looked as precision stylish as it was precision powerful. The answer was found in detailed, diamond-cut cylinders that elevate and anchor the bike's incredible style.

NESS CHROME FLAMED BILLET SHIFTER, BRAKE PEGS AND HAND LEVERS
The welder was put away long before, but the Arlen Ness Vision Tour continues throwing sparks. The Ness chrome hand and foot controls integrate with the bike's total custom flame treatment and deliver dependable, reliable performance.

KICKER PREMIUM AUDIO SPEAKERS
Acoustically precise and top of the line, these are the speakers the open road deserves. We suspect the audio waves that emanate from them look like flame exhaust.

NESS WINDSHIELD GRAPHIC
Forward of everything, the Ness custom windshield graphic provides a wind-breaking as well as ground-breaking extension of the bike's singular look.

LEATHER STITCHED SEAT
Comfortable enough to make the long haul seem short, and every bit Arlen. Except for the imprint, which will be all yours.

ABS BRAKES
The Arlen Ness Vision Tour's Anti-Lock Brake System doesn't discriminate between dry, wet or rock-strewn pavement. No matter what the conditions, ABS monitors what the wheel is doing and gives you consistent, smooth braking from the handlebar lever down to the rubber on the road.

CRUISE CONTROL
After making every other aspect of going the distance as effortless as possible, the throttle hand still had a beef about being overworked. By adding precise, automotive-style cruise control, the right mitt can now simply hang on and enjoy the ride.

106 CUBIC-INCH FREEDOM V-TWIN
The foundation of the Arlen Ness Vision Tour, the Freedom V-Twin power plant is an engine worthy of this ultimate touring bike's esteemed designer. Expertly balanced for perfectly controlled explosions, the Freedom V-Twin delivers 97 enduring horsepower to keep the mile markers coming, along with 113 ft lbs of on-ramp torque for when you just can't start your journey fast enough.

6-SPEED OVERDRIVE TRANSMISSION
To Arlen, nothing less than the highest performing transmission available was worthy of his masterpiece. The Victory 6-speed overdrive tranny takes the power generated by the massive V-twin and gently converts the bike into rolling art. Neutral Selection Assist and helical-cut gears ensure every shift is smooth and clean as the master's design.

CHROME DRIVER AND PASSENGER FLOORBOARDS
Even the roomy, firm-footed floorboards provide an opportunity to toss more fuel onto the flame-etched chrome theme. Enhancing an otherwise overlooked area of the bike, the chrome driver floorboards add a bright, custom look.

TRUNK
Adding to the Ness Vision Tour's long-haul luxury, the matching spacious trunk provides ample room for two riders' gear. Passengers can lean back and see the world in easy-chair comfort while enjoying the added audio speakers, relaxing even more knowing their personals are dry-lock safe.

NESS OIL LINE COVER
To the Ness Family, a road is never just a road, and an oil line is never just an oil line.

ENGINE NUMBER PLATE
No proof of purchase has ever been more rewarding. Each of Arlen's Custom Vision Tour motorcycles bears a number and an etched facsimile of Arlen's John Hancock.

NESS RADIO DISPLAY
Yet another place to channel his creative energy, Arlen's take on the radio display makes everything that comes out of it sound a little bit crisper.

NESS IGNITION KEY GRAPHIC
In Arlen's words, even the key graphic is designed to move you.
