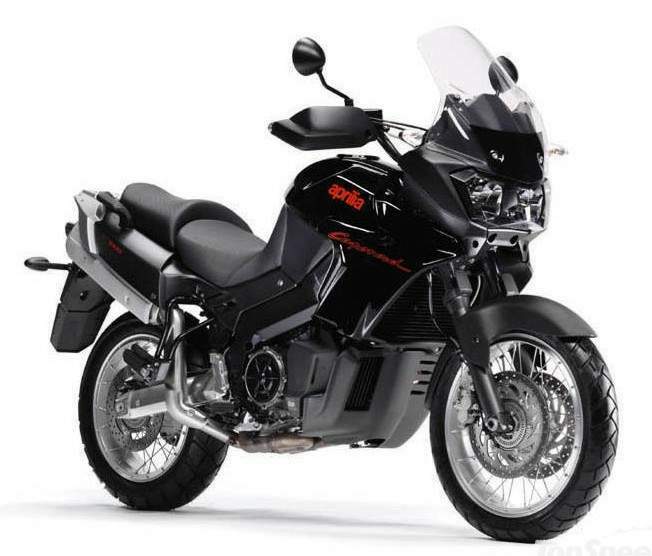

Aprilia ETV 1000 Caponord

.

Make Model

Aprilia ETV 1000 Caponord

Year

2005

Engine

Four stroke, longitudinal 60° V-twin, DOHC, 4 valves per cylinder

Capacity

997.6 cc / 60.9 cu in

Bore x Stroke 97 x 67.5 mm
Cooling System Liquid cooled
Compression Ratio 10.4:1

Induction

Fuel injection

Ignition

Digital electronic, two spark plugs per cylinder

Starting Electric

Max Power

72 kW / 98 hp @ 8250 rpm

Max Torque

97 Nm / 9.88 kgf-m / 71.5 bl-ft @ 6250 rpm.

Clutch Wet, multiple discs, cable operated

Transmission

6 Speed

Final Drive Chain
Frame Wave twin beam in box-type aluminium-magnesium alloy, highly-resistant removable steel rear subframe

Front Suspension

Marzocchi hydraulic fork, Ø50 mm

Front Wheel Travel 175 mm / 6.9 in

Rear Suspension

Aluminium alloy swing arm, progressive linkage. Sachs hydraulic shock absorber, rebound and preload adjustable.

Rear Wheel Travel 185 mm / 7.3 in

Front Brakes

2 x Ø300 mm discs, 2 piston calipers with ABS

Rear Brakes

Single Ø270 mm disc, 2 piston caliper with ABS

Front Tyre

110/80 VR19

Rear Tyre

150/70 VR17

Trail 129 mm / 5.1 in
Dimensions Length: 2310 mm / 90.9 in
Width:     876 mm / 34.5 in
Height:  1436 mm / 56.5 in
Wheel base 1544 mm / 60.8 in
Seat Height 820 mm / 32.3 in

Dry Weight

215 kg / 474 lbs

Wet Weight 253 kg / 558 lbs

Fuel Capacity

25 Litres /  6.6 US gal

Reserve 5 Litres / 1.3 US gal

Braking 60 km/h / 37 mph - 0

14 m / 45.9 ft

Braking 100 km/h / 62 mph - 0

38 m / 124.7 ft

Standing ¼ Mile

12.3 sec / 178 km/h / 111 mph

Standing 0 - 1000m 23.2 sec / 206 km/h / 128 mph

Top Speed

214.4 km/h / 133 mph

Because the ETV 1000 Caponord means no limits power, comfort and reliability on any terrain and over any distance. The versatility and carrying capacity of a maxi enduro to accompany you on every trip with absolute freedom and independence.

But also sporty performance, a fun but safe ride and an elegant comfortable design. The ETV 1000 Caponord at last you can experience all the emotions, fascination and potential of total touring.

Enjoy a unique design and extraordinary comfort

Slim and streamlined, refined and functional, created to express the best possible interaction between machine, rider and passenger, wind tunnel tested to eliminate even the most minimal turbulence - the design of the ETV 1000 Caponord captivates and convinces right from the first glance, as happens only with something born to last and destined to go a very, very long way.

Its enveloping lines guarantee an ultra-high coefficient of aerodynamic penetration, even when riding in an upright position, while the large front fairing, built-in hand guards and tank design protect the body from the wind for absolute comfort at all speeds.

And the height of the saddle from the ground has been calculated to enable the feet to be rested steadily on the ground, because the ETV 1000 Caponord represents not just total touring, but also total comfort

Achieve the maximum power and riding pleasure

Smooth, flexible, ever ready to deliver its full power (98 hp to the shaft) even at low revs and to give you the all the delight of a sporty but at the same time easy and safe ride. The ETV 1000 Caponord 60° V twin engine has been specifically designed for this original, multi-purpose and unique bike.

It is light and compact to fit in perfectly with the mechanics, guaranteeing optimum handling and stability. The specific design of the pistons, camshafts and throttle bodies, special intake and exhaust system and sophisticated electronic injection guarantee the highest possible torque at low revs.

The ETV 1000 Caponord engine also features two famous and exclusive Aprilia patents: the AVDC Anti Vibration Double Countershaft system for even more total riding comfort, even on long fast trips and the PPC Pneumatic Power Clutch to make the clutch lever lighter to operate and avoid rear wheel bounce during sudden deceleration for even better stability and handling.

Discover the most innovative and exclusive technology


The ETV 1000 Caponord is the first trail bike with variable geometry aluminium alloy double beam perimeter frame (Double Wave Aluminium Beam). Two characteristics which guarantee the highest torsional rigidity in its class.
But that’s not all. The swingarm is also in aluminium and magnesium alloy. The central section is cold-cast and the arms and terminals forged to guarantee the best possible relationship between lightness and rigidity.
The front suspension with 50 mm diameter sleeves is the same as used in racing enduros, but the calibration has been optimised to guarantee maximum comfort both on roads and motorways and on tracks and trails.
The rear suspension is multi-adjustable with a convenient external knob to adapt the trim of the bike not just to all types of terrain, but also to all carrying conditions, whether alone or with a passenger, with or without bags.

The ETV 1000 Caponord is fitted as standard with innovative and exclusive Tubeless Spoke Rims, enabling tubeless tyres to be used, yet one more advantage in terms of safety. In addition, the particular spoke arrangement together with the exclusive hollow hubs and large diameter wheel spindles provide a high level of torsional rigidity and thus stability during cornering, even at high speeds.

Exclusive, complete and specially designed for the demands of touring, the dashboard has a multifunction digital panel indicating time, ambient temperature, the temperature of water in the cooling circuit and level of fuel. The word "service" also appears when the bike needs servicing

Rim and wheel section

Free your desire to go wherever you want with whoever you want.

The ETV 1000 Caponord is the first choice for all those who want to travel and experience the most diverse of situations, for all those who never let themselves be swayed by fashion, following nothing but their own curiosity and vitality, their own desire for new landscapes, encounters and emotions. In all situations, the ETV 1000 Caponord gives of its best, not just in terms of performance, but also of functionality and versatility.

Its carrying capacity knows no limits, partly thanks to the possibility of removing the rear saddle to create a further, roomy compartment for luggage and to regulate both headlights independently depending on the weight and load distribution.
The tank capacity is also optimum for touring use - 25 Litres, including a five litre reserve. So you can get wherever you want in complete freedom and autonomy, together with the person you love and the bike you love, the ETV 1000 Caponord.

Panniers, top box, tank bag - with Aprilia original accessories, your ETV 1000 Caponord is ready to take on any journey, while retaining perfect aerodynamics and weight distribution, together with an unmistakable look.
And with Aprilia helmets, technical garments and sportswear, you can experience practicality, freedom of movement, comfort and, of course, style, in body and soul.
