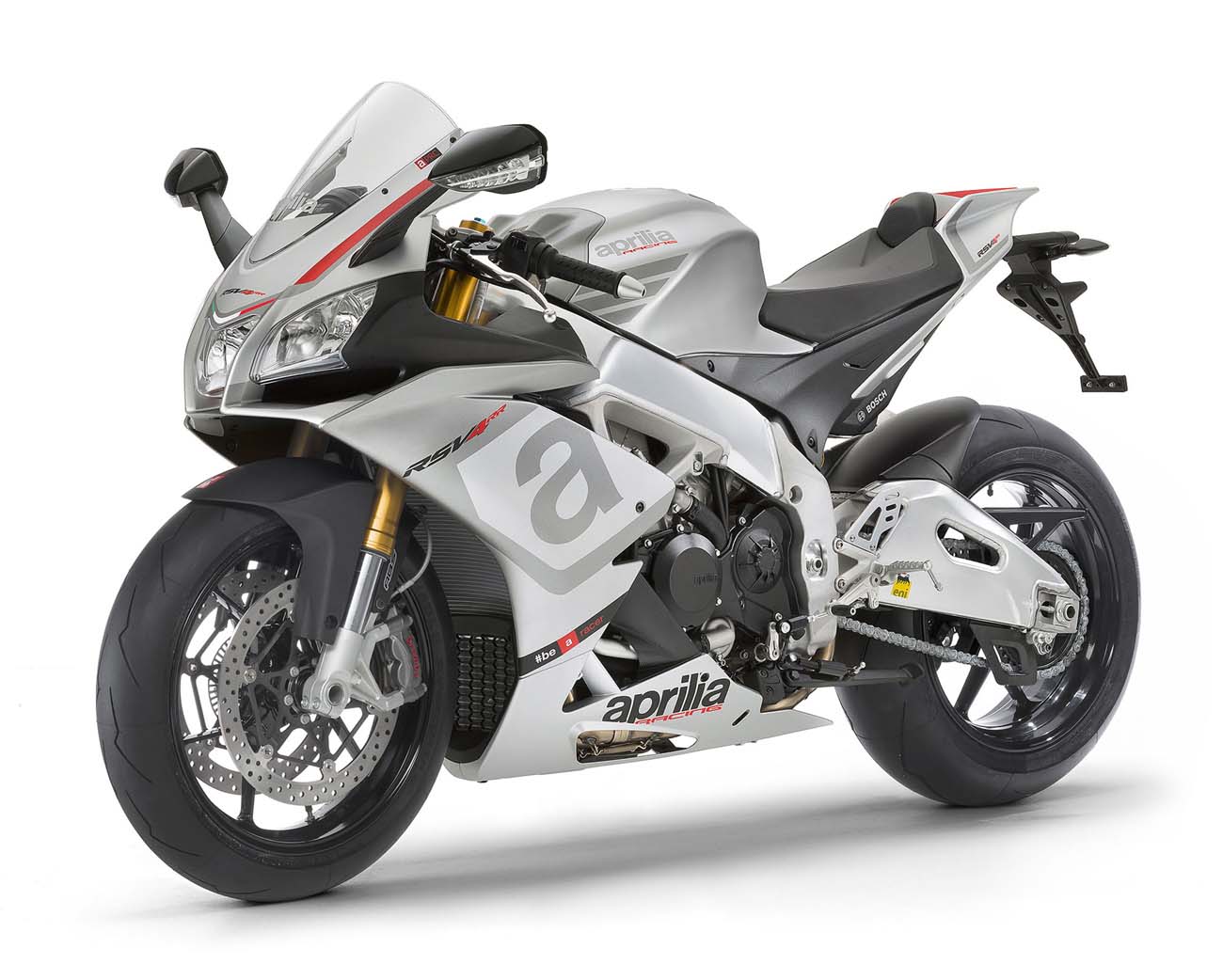

Aprilia RSV4 RR RR

.

Make Model

Aprilia RSV-4 RR

Year

2016

Engine

Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder

Capacity

999.6 cc / 61.0 cu-in
Bore x Stroke 78 x 52.3 mm
Cooling System Liquid cooled
Compression Ratio 13.6:1

Induction

Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU.
4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Road) Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and "stick-coil"-type coils

Ignition

Electronic digital ignition integrated in the fuel management system.
Starting Electric
Exhaust 4 into 2 into 1 layout, two oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) Flywheel mounted 420W alternator with rare earth magnets
Alternator Flywheel mounted 420W alternator with rare earth magnets
Lubrication Wet sump. Two pumps (lubrication and cooling). Oil cooler.

Max Power

148 kW / 201 hp @ 13000 rpm

Max Torque

117 Nm / 11.9 kgf-m / 86.2 lb-ft @ 10500 rpm
Clutch Multi-disc oil bath with mechanical slipper system

Transmission

6 Speed  gearbox cassette type
Final Drive Chain
Gear Ratio 1st: 39:15 (2.6) / 2nd: 33:16 (2,063) / 3rd: 34:20 (1.7) / 4th: 31:21 (1,476) / 5th: 31:23 (1,348) / 6th: 34:27 (1,259)
Primary drive Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Secondary drive Secondary drive Chain: Drive ratio: 42:16 (2.625)
Frame Dual aluminium beam chassis with pressed and cast sheet elements

Front Suspension

Sachs upside-down fork,  43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mounting bracket. Adjustable spring preload, hydraulic compression and rebound damping
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Twin sided aluminium swingarm; mixed low thickness and sheet casting technology.
Sachs monoshock  adjustable: spring preload, wheelbase and hydraulic compression and rebound damping. APS progressive linkages.
Rear Wheel Travel 130 mm / 5.1 in

Front Brakes

2 x Ø320 mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial calipers with 4 x Ø30 mm opposing. Sintered pads. Radial pump and metal braided brake hose

Rear Brakes

Single Ø220 mm diameter disc, Brembo floating caliper with two Ø32 mm isolated pistons. Pump with integrated tank and metal braided hose

Front Wheel

3.5 x 17

Rear Wheel

6.0 x 17

Front Tyre

120/70 ZR17

Rear Tyre

200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR17)
Steering Angle 24.5°
Trail 105 mm / 4.1 in
Dimensions

Length: 2040 mm / 80.3 in

Width:     735 mm / 28.9 in (at the handlebar)

Height : 1120 mm / 44.0 in

Ground Clearance 130 mm / 5.1 in
Seat Height 845 mm / 33.2 in

Dry Weight

182 kg / 401 lbs

Fuel Capacity

18.5 Liters / 4.9 US gal
Fuel Reserve 4 Liters / 1.1 US gal
Standing ¼ Mile 10.5 sec
Top Speed 291.2 km/h / 180.9 mph
.

Aprilia RSV4 RR represents the most important and profound advancement ever made on this extraordinary model. A development that even involved the design. The style of the new RSV4 is the result of the perfect combination of form and function. The careful design led to the creation of the most compact full size sport bike on the market, where technical elements such as the impeccable aluminium double rail frame contribute to emphasising its racing vocation.

The front end has been completely redesigned: now there is a new, more protective top fairing, created after a careful wind tunnel aerodynamics study, which provides better protection from the wind for riders of any height. This choice has a positive impact not only on the track when the rider is seeking protection to achieve maximum speed, but also on the road where greater comfort is provided thanks to the lower air pressure on the body and helmet. The characteristic triple headlight is also new, now with a more modern shape and an LED parking light. The mirrors are new, also the subject of a wind tunnel study, which combine excellent aerodynamic penetration with improved visibility and built in LED turn indicators.

DESIGNED FOR RACERS BUILT FOR RIDERS

Evolution of a unique and victorious project

More than 200 hp, greater performance, lighter weight, more effective on the track and new riding pleasure on the road, with the best possible technology provided by the advanced aprc and race abs electronic controls. titles.

APRILIA RSV4 RR AND RF

OUT OF THE SUCCESSFUL EXPERIENCE GAINED IN RACING, WHERE APRILIA IS SEVEN-TIME WORLD SBK CHAMPION AND NEWLY CROWNED WINNER OF THE SUPERSTOCK FIM CUP TITLE, THE RSV4 IS BORN, THE NATURAL EVOLUTION OF AN EXTRAORDINARY AND VICTORIOUS PROJECT CAPABLE OF REDEFINING SUPERSPORT BIKE FRONTIERS

THE EXCEPTIONAL QUALITIES OF A RACING CHASSIS, FURTHER FINE-TUNED, COMBINE WITH AN ENGINE THAT HAS MORE THAN 200 HP OF MAXIMUM POWER: GREATER PERFORMANCE, LIGHTER WEIGHT, MORE EFFECTIVE ON THE TRACK AND IMPROVED RIDING PLEASURE ON THE ROAD, WITH THE BEST POSSIBLE TECHNOLOGY PROVIDED BY THE ADVANCED APRC AND RACE ABS ELECTRONIC CONTROLS

APRILIA RSV4 EVOLVES RADICALLY TO CONTINUE BEING THE BEST SUPERBIKE EVER THE RR VERSION ALREADY CONSTITUTES A DEFINITIVE SPORTS PLATFORM, WHEREAS THE EXCLUSIVE NUMBERED RF LIMITED EDITION ADDS EVEN MORE SOPHISTICATED SUSPENSION AND WHEELS WHICH ARE IN ANY CASE AVAILABLE AS OPTIONAL EQUIPMENT ON THE RR. AND WITH THE V4-MP, TELEMETRY ARRIVES AS WELL

Aprilia RSV4 is the natural evolution of a revolutionary project which managed to successfully dominate World SBK in just a few years, winning seven championship titles in six years and to win in its rookie year in the Superstock FIM Cup, the championship dedicated to bikes that are closely derived from their factory versions. Unanimously acclaimed by critics and sought after by bikers from every corner of the globe, the RSV4 has always been the undisputed segment representative, the reference point for sportiness and performance, the best example of what can be achieved by exploiting the valuable experience of a victorious Racing Department like Aprilia’s which, in its brief history has taken 54 championship titles. Skills honed on the track and transferred to the factory product to provide everyone with the same excitement that the motorbikes prepared by Aprilia Racing do.

Unmistakeable in its design lucidity and applied technology, the RSV4 is conceived around a 65° V4 engine never before seen on a factory sport bike, a frame which is the heir to a dynasty that has won 18 titles and 143 Grand Prix races in the 250 GP class, enhanced by the most modern applied electronics systems to manage the engine and the bike’s dynamic performance. This is a true vocation of Aprilia, which was the first manufacturer to adopt the Ride-By-Wire system as standard equipment (the multimap power management system), but above all the first to patent the APRC dynamic control system, with the exclusive self-calibration and wheelie control features.

The goal of the efforts made at Noale to create the RSV4 was the same one that has set the RSV4 apart from its birth in 2009: to be the absolute best uncompromising superbike, the one that comes the closest to being a real racing bike in terms of performance and effectiveness. The Aprilia RSV4 RR version comes already equipped with all the electronic and technical refinements that a rider could want; Aprilia also offers a more exclusive version – the RSV4 RF – characterise by lightweight forged aluminium wheel rims and more sophisticated Öhlins suspension (shock absorbers, fork and steering damper). For the 2016 year Aprilia RSV4 RF become even richer, adding as standard the new “Superpole” graphic, the V4-MP multimedia platform and a new Öhlins shock absorber.

A new era

The Aprilia RSV4 represents the most important and profound advancement ever made on this extraordinary model. A development that even involved the design. The style is the result of the perfect combination of form and function. The careful design led to the creation of the most compact full size sport bike on the market, where technical elements such as the impeccable aluminium double rail frame contribute to emphasising its racing vocation.

The front end has been completely redesigned: now there is a more protective top fairing, created after a careful wind tunnel aerodynamics study, which provides better protection from the wind for riders of any height. This choice has a positive impact not only on the track when the rider is seeking protection to achieve maximum speed, but also on the road where greater comfort is provided thanks to the lower air pressure on the body and helmet. The characteristic triple headlight is new, now with a more modern shape and an LED parking light. The mirrors were also the subject of a wind tunnel study, combining excellent aerodynamic penetration with improved visibility and built in LED turn indicators.

Evolution of a unique and victorious project

More than 200 hp, greater performance, lighter weight, more effective on the track and new riding pleasure on the road, with the best possible technology provided by the advanced aprc and race abs electronic controls. titles.

V4 65°
INCOMPARABLE ENGINE

The first high performance narrow V-4 cylinder engine in the world; the most revolutionary engine ever made by Aprilia is incomparable thanks to its unique “total electronics” package, its incredible lightness and super compact size, reaches a new stage in evolution. The engine has been updated and improved with particular attention paid to reducing internal friction and increasing casing ventilation. The exhaust system too has been remodelled to provide maximum performance working in combination with a finely tuned electronic management system. This brings the maximum power of the 65° V4 to 201hp with torque at 115 Nm. The 3 distinct mappings (Track, Sport and Road), were matched to the new power and torque specifications of the V4 to provide even fuller and in-depth power output at any engine speed.

Superbike frame
STABILITY AND CONTROL

Aprilia is known as one of the best chassis manufacturers in the world and the RSV4 RR represents the synthesis of the technical prowess Aprilia has acquired in top level world championships. A particularity which is still exclusive to the RSV4 RR (and which has always been a characteristic of the previous generation RSV4 models) is the exceptional – and exclusive – possibility of adjustments that the standard equipment chassis is able to offer. In fact, the new Aprilia is the only superbike that allows the rider to adjust the engine position in the frame, the headstock angle, the swingarm pivot and the rear end height, naturally in addition to the fully adjustable suspension. Just like a real racing bike.

The highly sought after and winning structure of the Aprilia RSV4 frame has remained substantially unchanged and uses elements in pressed and cast aluminium capable of guaranteeing exceptional performance, thanks in part to the perfectly balanced torsional rigidity and flexibility values. Optimally centralised masses are just one of the RSV4 chassis strengths. To achieve this result nothing was neglected. The swingarm the same construction technology as the frame but it has been lengthened 14 mm to guarantee better traction and to decrease the tendency for wheelies during the violent acceleration that the new extraordinary characteristics of the powerplant allow. Precisely because of the V4’s significant power increase the chassis and weight distribution configuration have been revamped: the engine is mounted in the lowest possible position allowed by its adjustment range within the frame, whereas the fully adjustable suspension has been fine tuned to guarantee maximum control in extreme riding.

aPRC
THE NEW FRONTIER IN TECHNOLOGY

aPRC (Aprilia Performance Ride Control), which comes as standard, is the well-known system control package that comes directly from race winning experience gained in the Superbike series. The third generation of aPRC, standard equipment, fully integrates with the full Ride-by-Wire multi-map electronic management of the revamped V4 engine. It is the most complete, sophisticated package there is out of those currently on the market.
aPRC, which comes as standard equipment on the Aprilia RSV4 RF, includes:


• aTC: Aprilia Traction Control, adjustable on the fly (without having to release the throttle) to 8 settings thanks to a practical joystick on the left side of the handlebar, with extremely fine-tuned operating logic;
• aWC: Aprilia Wheelie Control, adjustable to three settings, has been recalibrated for maximum performance at level 1 (the least restrictive setting);
• aLC: Aprilia Launch Control, the assisted starting system for use on the track only with 3 settings;
• aQS: Aprilia Quick Shift electronic gearbox for ultra-fast shifting without closing the throttle or using the clutch.
In addition to the second generation aPRC system, the RSV4 FR is fitted with the highly advanced “Race ABS” antilock braking system, designed and developed by Aprilia in collaboration with Bosch to guarantee not only improved safety on the road, but also the best possible performance on the track. The 9MP ABS unit is top of the line in currently available refinements and technology: the system, which weighs only 2 kg, can be disengaged and is adjustable to 3 settings by easily accessing the control menu on the sophisticated instrument cluster:
• Level 1: this is dedicated to track use (but it is also approved for street use) and acts on both wheels to guarantee the best possible performance, even in the most intense braking conditions at any speed. It takes nothing away from the pleasure and performance of “extreme” riding.
• Level 2: this is dedicated to sport riding on the road, acts on both wheels and is combined with an advanced tip over system (RLM – Rear Lift-up Mitigation) which engages progressively based on the vehicle speed.
• Level 3: this is dedicated to riding on surfaces with poor grip, acts on both wheels and is combined with the tip over system.
Each of the 3 setting levels for Race ABS can be combined with any one of the 3 new engine maps to allow riders with varying experience and skill levels to find the best possible combination.

The new and powerful engine ECU now allows the three maps to be more easily managed, each one of which corresponds to a different engine power output and now also to a dedicated engine brake management map. The two classic engine management logics Track and Sport are now joined by the new Race map, the most extreme and suited for professional use of the bike on the track with engine braking control reduced to a minimum in order to support more abrupt braking. All three maps are more manageable and less aggressive than the previous version, therefore allowing perfect correlation between throttle control and the torque sent to the wheels. This reduces rear tire wear and makes it possible to better manage the power that the Aprilia V4 is able to develop.

Versions & Colors

Aprilia RSV4 RR represents a top shelf technical platform, ready to provide the rider with a “race replica” performance and feeling. As standard equipment it also has all of those features which only the Factory version RSV4 had previously, such as magnesium external housings, oil sump and head covers, a wide range of chassis adjustments and the variable setting intake ducts. Aprilia RSV4 RR is available in satin gray color scheme (Grigio Bucine).
