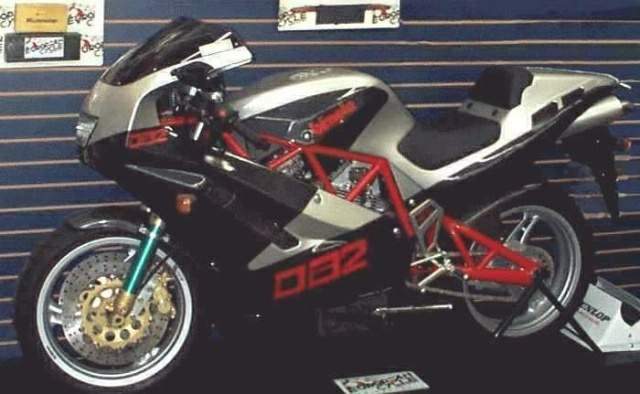

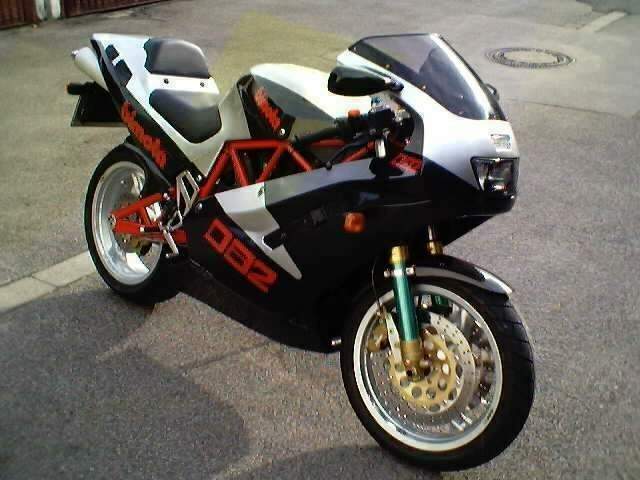

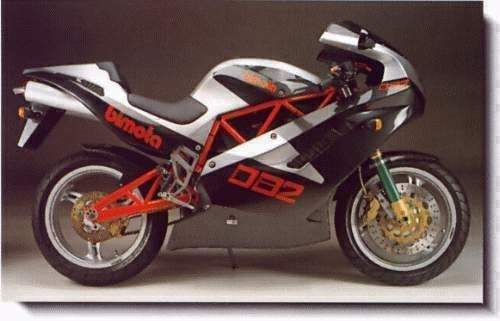

Bimota DB2EF

Bimota DB2EF

Make Model	Bimota DB2EF
Year	1997
Production	100 units, 75 with full fairings and 25 with half fairings.
Engine	Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valve per cylinder
Capacity	904 cc / 55.2 cub in
Bore x Stroke	92 x 68 mm
Compression Ratio	9.2:1
Cooling System	Air cooled
Induction	2x 38mm Mikuni carburetors
Ignition	-
Starting	Electric
Max Power	64.1 kW / 86 hp @ 7000 rpm
Max Torque	90.2 NM / 9.2 kg-m / 66.5 lb-ft @ 5700 rpm
Transmission	6 Speed
Final Drive	Chain
Frame	Upper lattice work in round section of chrome-molybdenum steel.
Front Suspension	41mm Paioli telescopic forks
Rear Suspension	Tubular steal swinging arm Öhlins monoshock
Front Brakes	2X 320mm discs 4 piston calipers
Rear Brakes	Single 230mm disc 2 piston caliper
Front Tyre	120/70-17
Rear Tyre	180/55-17
Fuel Capacity	16 Litres / 4.2 US gal.
