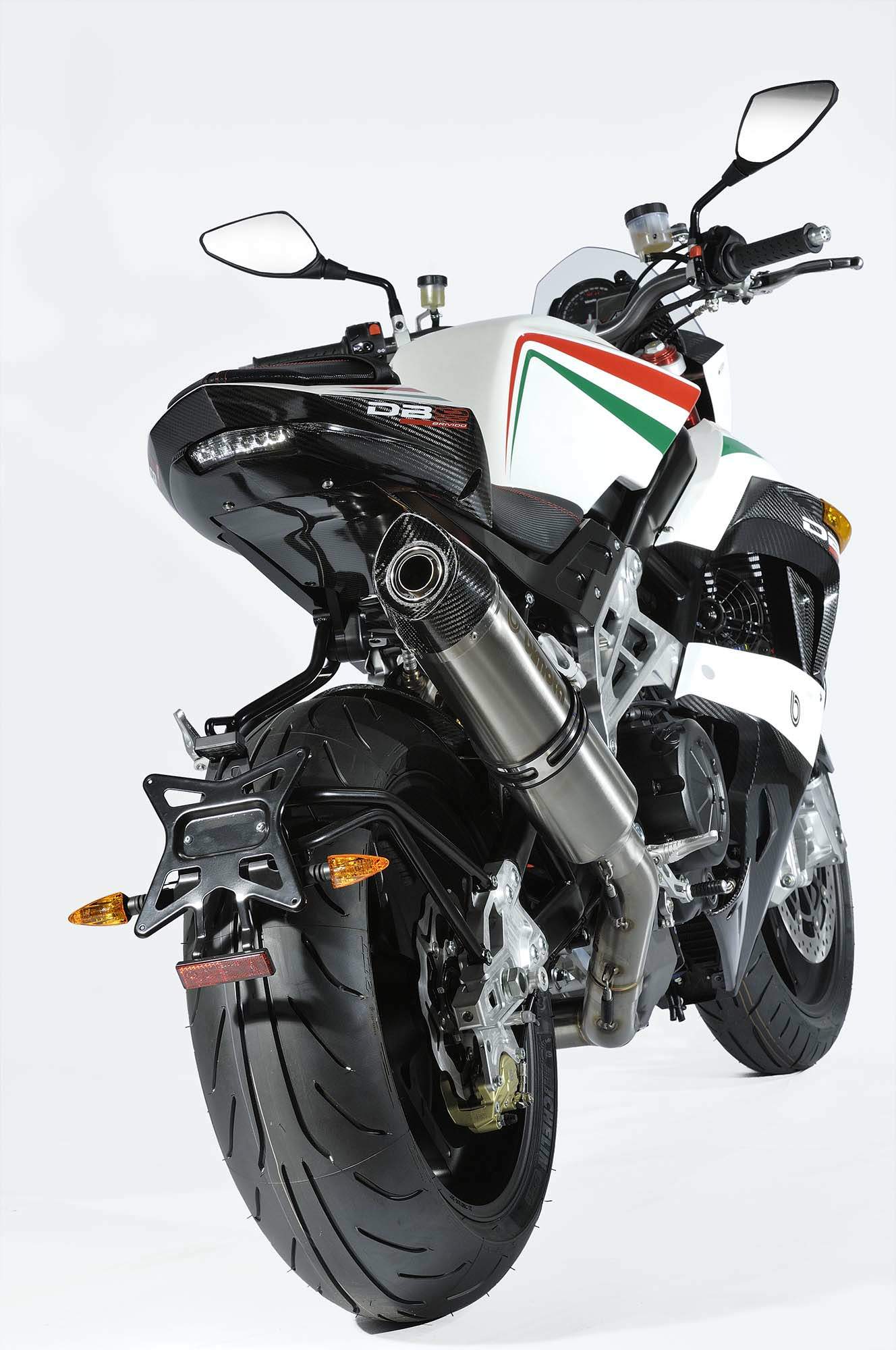

Bimota DB9 Brivido Italia

Make Model	Bimota DB9 Brivido Italia
Year	2013
Engine	Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 4 valve per cylinder,
Capacity	1198 cc / 73.1 cub. in
Bore x Stroke	106 x 67.9 mm
Cooling System	Liquid cooled
Compression Ratio	11.5:1
Induction	Electronic fuel injection
Lubrication	Wet sump
Oil Capacity	3 Litres / 0.20 quarts
Exhaust	2 in 1 in 1 Titanium silencer.
Ignition	Magneti Marelli
Starting	Electric
Max Power	118.2 kW / 162 hp @ 9500rpm
Max Torque	131 Nm / 13.4 kgf-m / 96.6 lb-ft @ 8000 rpm
Clutch	Wet multiple plates, hydraulic system
Transmission	6 Speed
Final Drive	Chain
Frame	NiCrMo4 steel with aluminum plates
Front Suspension	43mm upside down forks with adjustable preload DLC, compression and rebound
Rear Suspension	Monoshock adjustable for preload high and low speed 'extension and compression
Front Brakes	2x 320 mm / 12.6 in. discs, Brembo radial calipers with 4 pads separated
Rear Brakes	Single 220mm / 8.7 in. disc, 2 piston Brembo caliper
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Rake	25.0°
Dimensions	Length 2040 mm / 79.1 in Width 830 mm / 32.6 in Height 1105 mm / 43.5 in
Wheelbase	1435mm / 56.4 in
Seat Height	800 mm / 31.4 in
Dry weight	177 kg / 390.2 lbs
Fuel Capacity	18 Litres / 4.8 US gal
Top speed	260 km/h / 161.6 mph

Pure sports, designed for the ultimate road experience.

We are talking about the DB9 roadster that comes in line after the DB8, generations of hand built sports machines which continue with the tradition of top level components with subtle revisions to the seat, footrest and tank to provide improved comfort.

A new beast of a motor, an evolution of the L twin cylinder engine with improved performance and usable power, perfect lower and mid range speed where the massive torque figures build in a linear fashion for an outstanding ride.

Features and Benefits

Look

Talking about an actual roadster, its stretched lines and its small prominent screen give the DB9 the right fighting stance.

Colouring follows the path of the BIMOTA tradition, where the white and red contrast with the black carbon superstructures.

A bike where elegance and determination get along well with each other, a unique look where the finest details are purposely in full view.

Technology

The DB9 Brivido carries a 90°L twin cylinder engine 1198cc, with a max power of 162hp/9500 rpm and a max torque of 13,1 kgm/8000 rpm. An engine equipped with an oil actuated multi-plate clutch perfect for street use.

It comes with 43mm preload-fully adjustable upside-down forks in the front, and a monoshock in the rear. Both the systems are fully adjustable in compression, rebound and preload.

Brembo braking system comes with 2x320mm radial discs 4 piston calipers and 1x220mm disc 2 piston calipers.

For what concern the "S" version, front brake is equipped with a mono-disc outlying system developed and tested with great feel and performance by Bimota R&D.
