BMW R nineT

.

Make Model

BMW R nineT

Year

2018 - 19

Engine

Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.

Capacity

1170 cc / 71.4 cub in.

Bore x Stroke

101 x 73 mm
Cooling System Air/Oil cooled
Compression Ratio 12.0:1
Lubrication Wet sump
Induction Electronic intake pipe injection / digital engine management with overrun cutoff, twin-spark ignition
Emission Control Controlled 3-way catalytic converter, exhaust emission standards EU-4
Alternator Three-phase alternator 600 W
Battery 12 V / 14 Ah, maintenance-free

Starting

Electric

Max Power

81 kW / 110 hp @ 7550 rpm

Max Torque

116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm

Clutch Single dry plate clutch, hydraulically operated

Transmission

Constant mesh 6-speed

Final Drive Shaft
Gear Ratios Ist 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th 0.848:1
Frame Four-part frame concept with front frame and three-part rear frame, load-bearing engine-gearbox unit, rear-seat frame removeable for one-up riding

Front Suspension

Upside-down telescopic forks, 46 mm fixed-fork-tube diameter

Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut,spring preload fully adjustable by hook wrench, adjustable rebound-stage damping

Rear Wheel Travel 120 mm / 4.7 in

Front Brakes

2 x 320 mm Foating brake discs, 4 piston radial calipers

Rear Brakes

Single 265 mm disc, 2 piston floating caliper
ABS BMW Motorrad ABS
Rim Front 3.50 x 17, Cast alloy
Rim Rear 5.50 x 17, Cast alloy

Front Tyre

120/70 - ZR17

Rear Tyre

180/55 - ZR17

Castor 107.9 mm / 4.2 in
Steering Head Angle 63.2 °
Dimensions Length 2110 mm / 83.1 in
Width     900 mm / 35.4 in
(incl. mirrors)
Height  1240 mm / 48.8 in  (excl. mirrors)
Wheelbase 1522 mm / 59.9 in
Seat Height 820 mm / 32.3 in
Inner Leg Curve 1795 mm / 70.7 in unladen
GVWR 430 kg / 948 lbs

Dry Weight

220 kg / 485 lbs

Fuel Capacity

18 Litres / 4.7 US gal / 3.7 Imp gal

.

The tweaks and colour options for 2017 BMW R nineT Roadster.

Highlights

  • New colour options
  • New wheels and clocks
  • Fully adjustable fork

The facts

  • 110bhp
  • 222kg
  • Seat height 803mm

The most visual of the changes, though, is the addition of two pain options – Blackstorm metallic / Vintage, and Blueplanet metallic / Aluminium.

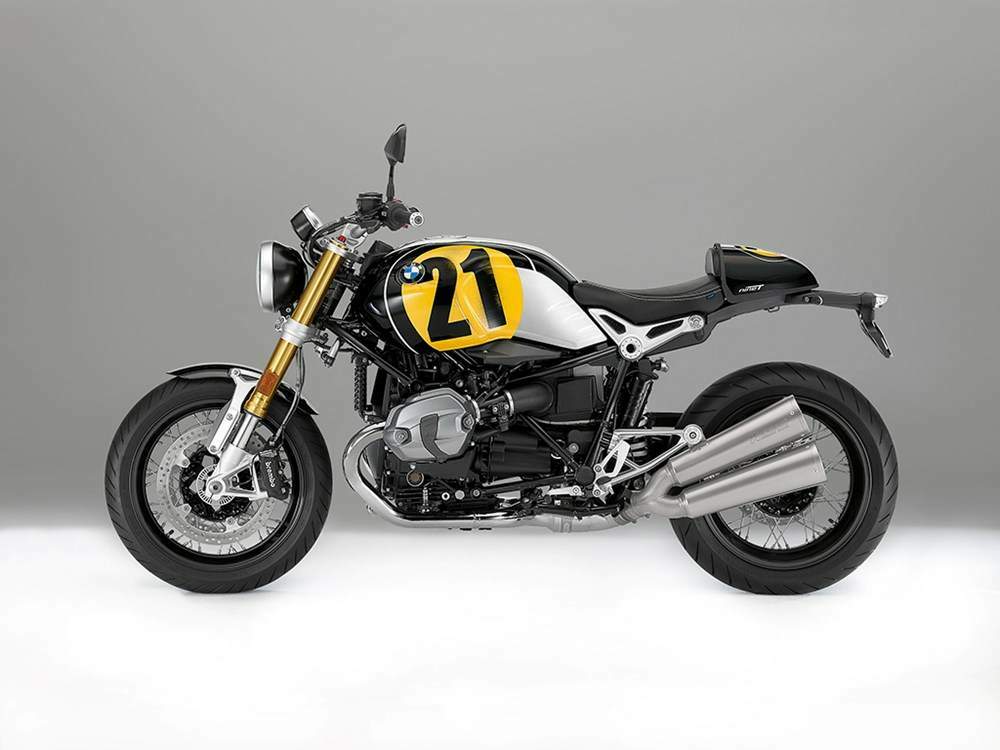

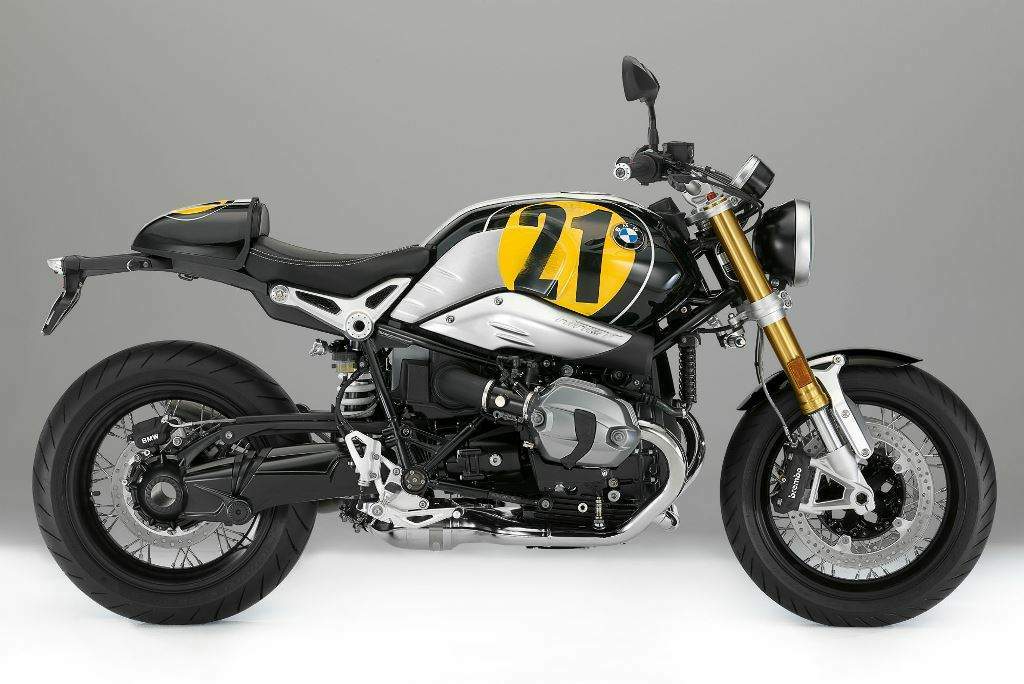

The Blackstorm gets a massive 21 on the lovely aluminium tank, which is applied by hand, and this version is also supplied with an aluminium hump seat and pillion pad.

The BMW R nineT.
Unmistakable. Original. Air-cooled.

Motorcycling as a sign of pure freedom: landscape, corners, straights. Every metre counts. This is precisely your path.

The R nineT is the perfect companion and knows hardly any limits when it comes to your personal fulfilment – also thanks to its countless customising possibilities. In so doing, the character of its air-cooled boxer engine irresistibly propels you forward in a way that can be clearly felt with its full torque curve – together with state-of-the-art technology.
Right from the start, the R nineT has enthralled motorcycling enthusiasts around the world. It stimulates, inspires and infects.

Unmistakeably the R nineT.
The R nineT has a reduced style but nevertheless a completely unmistakeable presence. It embodies the passion and innovation of over 90 years of motorcycle construction – naturally together with the classic BMW Motorrad proportions: striking boxer engine, compact tank, slim rear. All materials are of consistently high quality; the surfaces are carefully refined. Added to this is an immense attention to detail and real craftsmanship. The fender for instance is screwed to the fork feet using two forged brackets. And the headlamp holder is made out of aluminium.

A boxer classic.
Its powerful air-cooled, two-cylinder boxer engine features a capacity of 1170 ccm and 81 kW (110 hp) of output for a highly dynamic power delivery, even at low speeds. The result: every journey is a special experience. Both in the city or on the country road. At the same time, the R nineT also complies with the applicable EU-4 standard.
The standard BMW Motorrad ABS and optional ASC automatic stability control allow you to always safely bring the unmistakable dynamics onto the road. The upside-down fork can be adjusted manually for individual coordination: spring preload, pressure stage and compression stage suit you and your riding style. The newly designed double instrument with speedometer and rev counter informs you reliably about everything you need to know besides the riding enjoyment.

Relaxed seating, stress-free riding.
Even the ergonomics of the R nineT are aligned entirely in keeping with its casual overall look and its dynamic riding characteristics. It almost sounds like a paradox, but despite its engine performance, the target here is relaxed deceleration – with the fullest pleasure. The balanced ergonomic triangle and the still somewhat flatter Steering Head Angle allow you to discover new routes while sitting up and yet staying relaxed. Meaning ergonomics and outstanding riding characteristics literally go hand in hand with the R nineT.



Born to be customized.
Right from the outset, the focus when developing the R nineT was its modular concept: for the highest degree of customizing possibilities. Countless professional and private modifications prove how much potential the R nineT has.

Open interfaces in the electronics facilitate and alleviate the installation of electric components. Added to this is the well thought out separable frame. The end piece of the rear frame can be easily disassembled: for a puristic and stylish solo performance, or for alternative seating options.

To give your R nineT a new look with other painted parts, there are also other tank variants available: the aluminium tank with visible or smoothed weld, for instance, can be combined with the two-part standard rider's seat. You can also replace the rear with an aluminium seat hump.

The two special finishes Black storm metallic / Vintage and Blueplanet metallic / Aluminium are now also available. Here, in addition to the tank, your R nineT receives the right aluminium seat hump and front wheel cover in your chosen colour. The special finish Black storm metallic / Vintage gives your bike the individual used look by the brushing made by hand.

The HP sports silencer available in the optional accessories on the other hand can be positioned either high or low: for a remarkable appearance through and through.

Optional accessories ex works are impressive as well – for instance heated handle grips and LED turn indicators. The R nineT is even ready for expressive optional accessories like our new Machined parts – be it cylinder head cover, headlamp ring or engine cover. With the R nineT, you not only get the most out of your ride, but out of your machine as well.
