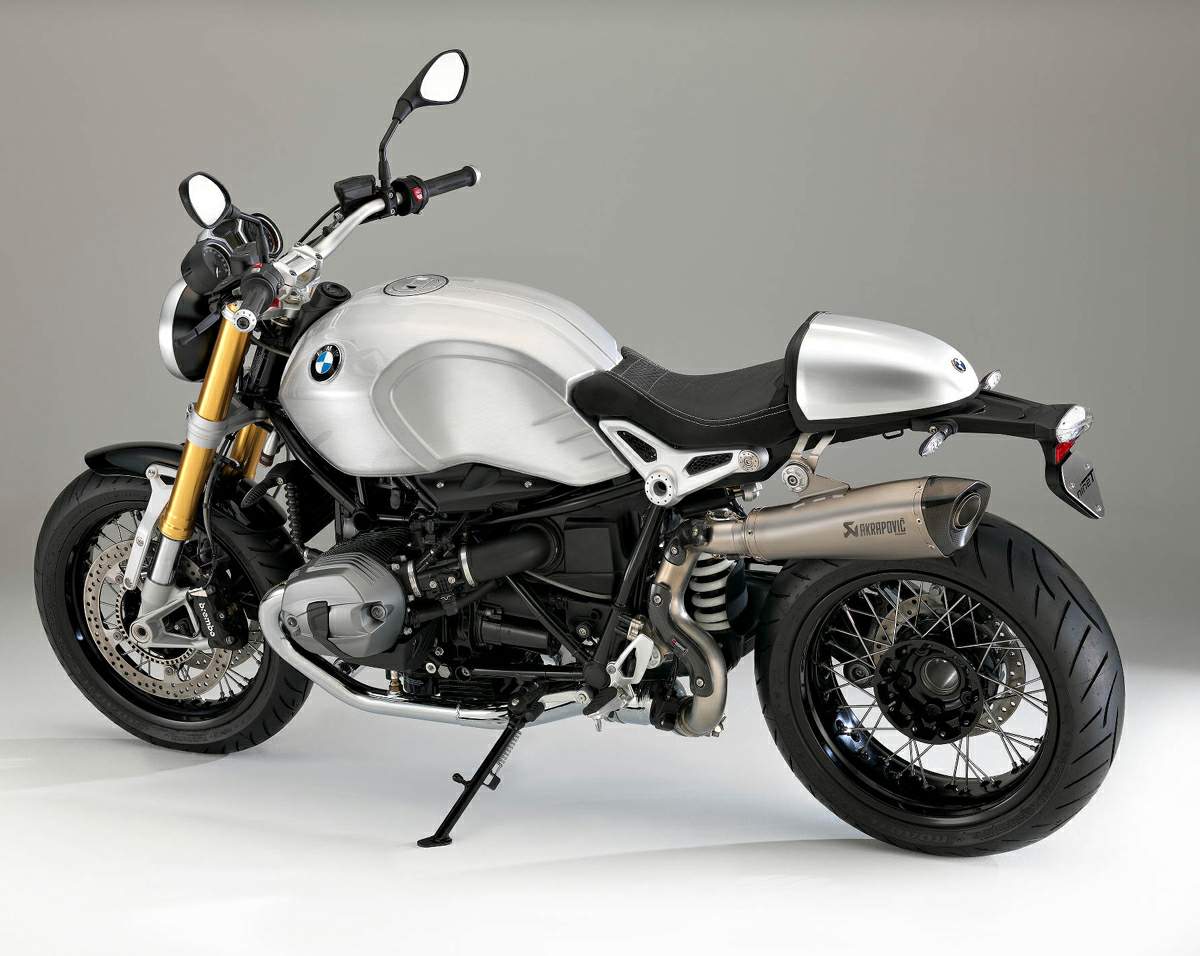

BMW R nineT Special Edition

.

Make Model	BMW R nineT Special Edition
Year	2016
Engine	Four stroke, two cylinder horizontally opposed Boxer, two camshafts and four radially aligned valves per cylinder, central counterbalancer shaft.
Capacity	1170 cc / 71.4 cub in.
Bore x Stroke	101 x 73 mm
Cooling System	Air/Oil cooled
Compression Ratio	12.0:1
Lubrication	Wet sump
Induction	Electronic intake pipe injection / digital engine management with overrun cutoff, twin-spark ignition
Emission Control	Controlled 3-way catalytic converter, exhaust emission standards EU-4
Alternator	Three-phase alternator 600 W
Battery	12 V / 14 Ah, maintenance-free
Starting	Electric
Max Power	81 kW / 110 hp @ 7550 rpm
Max Torque	116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm
Clutch	Single dry plate clutch, hydraulically operated
Transmission	Constant mesh 6-speed
Final Drive	Shaft
Gear Ratios	Ist 2.375 / 2nd 1.696 / 3rd 1.296 / 4th 1.065 / 5th 0.939 / 6th 0.848:1
Frame	Four-part frame concept with front frame and three-part rear frame, load-bearing engine-gearbox unit, rear-seat frame removeable for one-up riding
Front Suspension	Upside-down telescopic forks, 46 mm fixed-fork-tube diameter
Front Wheel Travel	120 mm / 4.7 in
Rear Suspension	Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut,spring preload fully adjustable by hook wrench, adjustable rebound-stage damping
Rear Wheel Travel	120 mm / 4.7 in
Front Brakes	2 x 320 mm Foating brake discs, 4 piston radial calipers
Rear Brakes	Single 265 mm disc, 2 piston floating caliper
ABS	BMW Motorrad ABS
Rim Front	3.50 x 17, Cast alloy
Rim Rear	5.50 x 17, Cast alloy
Front Tyre	120/70 - ZR17
Rear Tyre	180/55 - ZR17
Castor	107.9 mm / 4.2 in
Steering Head Angle	63.2 °
Wheelbase	1487 mm / 58.4 in
Dimensions	Length 2105 mm / 82.5 in Width 900 mm / 35.4 in (incl. mirrors) Height 1240 mm / 48.8 in (excl. mirrors)
Seat Height	805 mm / 31.7 in unladen
Inner Leg Curve	1795 mm / 70.7 in unladen
GVWR	430 kg / 948 lbs
Dry Weight	211 kg / 465 lbs
Wet Weight	219 kg / 482.8 lbs
Fuel Capacity	17 Litres / 4.5 US gal / 3.7 Imp gal
Reserve	3 Litres / 0.8 gal

.

As of model year 2016, the BMW R nineT will be available with the following new special equipment features:

- hand-brushed naked/exposed aluminium fuel tank with smoothed welding seams,

- hand-brushed naked/exposed aluminium fuel tank with visible welding seams, and heated grips.

Motorcycling has always been a passionate lifestyle. For the past 90 years BMW Motorrad has been ensuring that this remains the same in the future, too. For those who like it pure and original, BMW Motorrad has now developed the perfect machine: the BMW R nineT. A motorcycle featuring purist design and numerous ways of customizing it.

BMW R nineT: Pure Authenticity.

Riding a motorcycle and feeling free. The BMW R nineT combines this feeling with a casually cool look which, in spite of all the details, is unmistakably a member of the BMW family. Further criteria such as ride feel, design and sound lay the foundation for an independent, authentic lifestyle.

BMW R nineT: Pure Customizing

The BMW R nineT is powered by an air/oil-cooled 2-cylinder 4-stroke flat twin engine. The instruments consisting of speedometer and tachometer harken back to historical times and emphasize the essential and minimalist visual appeal of the motorcycle. The BMW R nineT is equipped with an upside down fork at the front and with the BMW Motorrad Paralever at the rear. However, the nineT does not only stand out due to its pure design. The nineT offers great options for individualization. No customizing wish is left unfilled. For example there is the removable rear frame, enough space for 6 inch rims and many other options. Even though the BMW R nineT offers so many modification opportunities it remains a real BMW motorcycle from a technical point of view. Standard-fitted ABS ensures highest-degree safety for the nineT, too.

BMW R nineT. Pure Lifestyle.

Pure passion, pure design, pure riding pleasure. This is what makes the BMW R nineT so essential for the classic enthusiast. Modify, ride, have fun. The nineT leaves nothing to be desired with regard to customization. Design your motorcycle, design your life. One name, one purist lifestyle:
BMW R nineT.

•Puristic design.
•Hand-built feel of the workmanship.
•Air/oil-cooled twin-cylinder boxer engine with a displacement of 1,170 cc. Output 81 kW (110 hp) at 7,750 rpm, maximum torque 119 Nm (88 lb-ft) at 6,000 rpm.
•Ideally suited to customisation.
•Modular frame concept with removable pillion frame and frame end-piece.
•Classic wheel suspension concept using high-quality upside-down telescopic fork at the front and paralever at the rear.
•Exhaust system with two silencers on the left-hand side, with variation options.
•Traditional wire-spoke wheels with black rims and hubs.
•Radial 4-piston monoblock brake callipers, steel-braided brake lines and floating 320 mm brake discs.
•Model plate riveted onto steering head in classic BMW Motorrad style.
•Bespoke range of special accessories made to BMW Motorrad’s customary high standards of quality.
