BMW R 1200GS LC Adventure

.

Make Model

BMW R 1200GS LC Adventure

Year

2018

Engine

Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, Intake 40mm, outlet 34 mm

Capacity

1170 cc / 71.4 cub in

Bore x Stroke

101 x 73 mm

Cooling System

Liquid / Air cooled

Compression Ratio

12.5:1

Induction

Electronic intake pipe injection

Fuel

Unleaded super, octane number 95 (RON)

Ignition

BMS-K

Alternator

Three-phase alternator 510 W (nominal power)

Battery

12 V / 11.8 Ah, maintenance-free

Starting

Electric

Electrical system

Alternator  620 W
Battery /Ah 12V/12 maintenance-free
Headlight  H7W / LED (SA)
Starter 0.9 kW

Exhaust

Fully-controlled three-way catalytic converter

Emissions

Euro 4

Max Power

92 kW / 125 hp @ 7750  rpm

Max Torque

125 Nm /12.7 kgf-m / 92 lb-ft @ 6500 rpm

Clutch

Oil lubricated, hydraulically operated

Transmission

6 Speed

Final Drive

Shaft

Gear Ratios

1st 2.438 / 2nd 1.714 / 3rd 1.296 / 4th 1.059 / 5th 0.943 / 6th 0.848:1

Transmission Ratio

2.91:1

Frame

Two-section frame, front- and bolted on rear frame, load-bearing engine

Front Suspension

BMW Motorrad Telelever; stanchion 37 mm, central spring strut

Front Wheel Travel

210 mm / 8.3 in

Rear Suspension

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring preload hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel

Rear Wheel Travel

220 mm / 8.7 in

Front Brakes

2x 305mm Hydraulically actuated twin disc brake, BMW Motorrad Integral ABS Pro, disengageable

Rear Brakes

Single 275mm disc, 2 piston caliper, BMW Motorrad Integral ABS Pro, disengageable

Front Wheel

3.00 x 19; wire cross-spoke

Rear Wheel

4.50 x 17; wire cross-spoke

Front Tyre

120/70 R19

Rear Tyre

170/60 R 17

Rake 25.5°

Castor

99.6 mm / 3.9 in

Steering Head Angle

64.5 °

Dimensions

Length 2207 mm / 86.9 in
Height 1412 mm / 55.6 in (excl. mirrors)
Width 953 mm / 37.5 in (incl. mirrors)

Wheelbase

1507 mm / 59.3 in

Seat Height

890 mm - 910 mm  /  35.0 in - 35.8 in

Wet Weight

263 kg / 580  lbs

Fuel Capacity

30 Litres / 7.9 US gal / 4.4 Imp gal

.

The 2018 BMW R1200GS Adventure is bringing all the updates enjoyed by the 2017 R1200GS to conform to Euro4 regulations and adding a whole host of optional extras to the 2018 BMW R1200GS Adventure.

The biggest news for the R1200GS Adventure is the new optional equipment available:

  • Connectivity

  • Emergency Call

  • LED auxiliary headlights in new designPro riding modes with additional “Dynamic” and “Enduro” riding modes. Using a coding plug, the “Dynamic” mode is changed to “Dynamic Pro” and the “Enduro” mode to “Enduro Pro” mode. The Pro riding mode continues to feature ABS Pro, dynamic brake light, Dynamic Traction Control (DTC) as well as Hill Start Control (HSC)

  • Dynamic ESA next generation with automatic damping adjustment and automatic self-levelling function

  • Keyless Ride as a new component of the Touring Package

  • Shift Assistant Pro as a new component of the Dynamic Package

  • Passenger package with standard windshield and standard seat

  • High Rallye seat

  • LED auxiliary headlights in new design

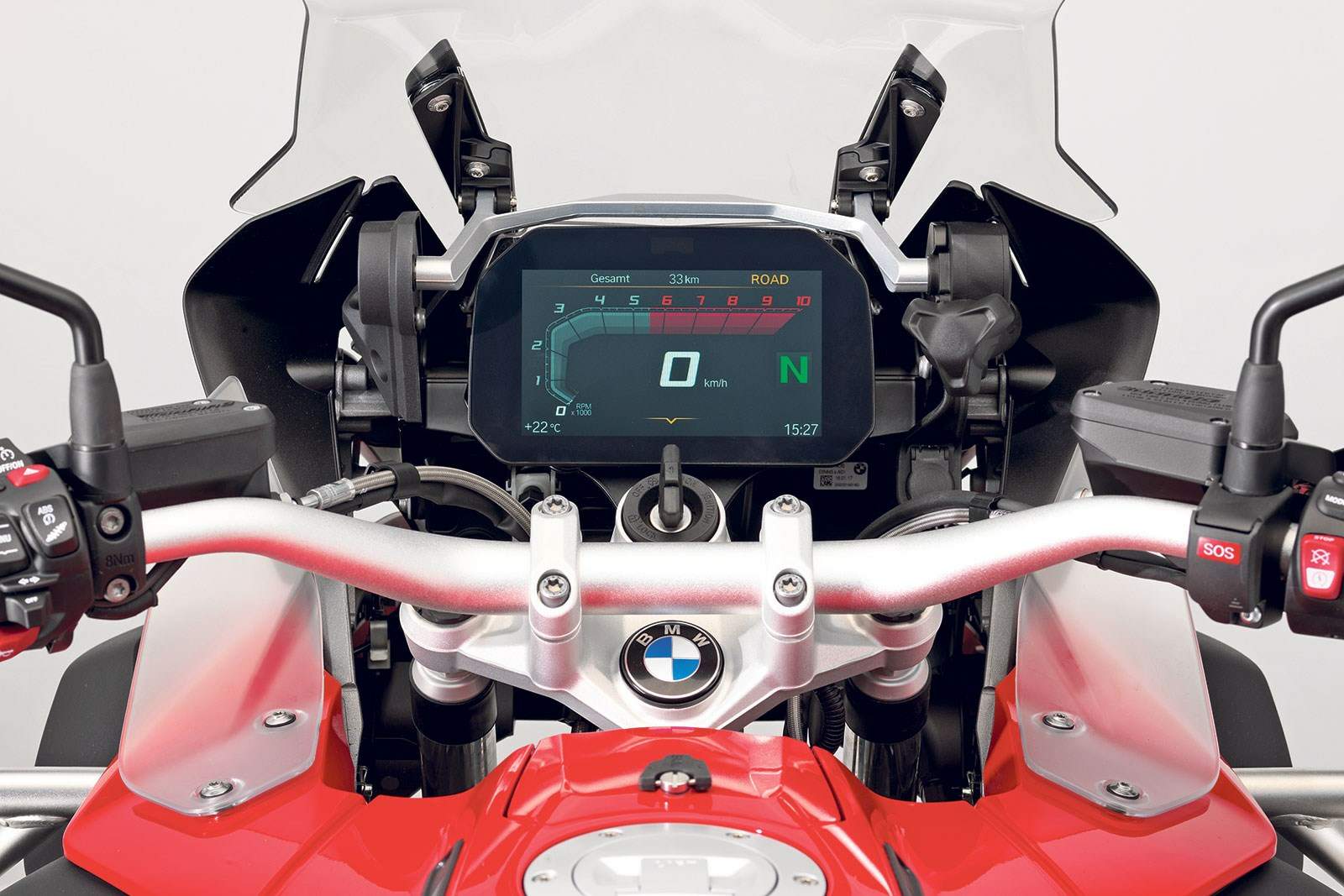

The Connectivity option with its full-color TFT 6.5 in/165 mm display is BMW Motorrad’s highlight of 2018 optional features. Connectivity was designed to provide fast and clear information for the rider with the least possible distraction from what is happening on the road, BMW reports.

The rider can access motorcycle and connectivity functions quickly with a great level of comfort thanks to the advanced BMW Motorrad multi-controller and the integrated approach. In addition, the new TFT display combines the familiar “classic” display of data such as rpm and speed with new technology that provides an enormous range of features, BMW says.

For the first time on the Adventure an Emergency Call system is also now available.
