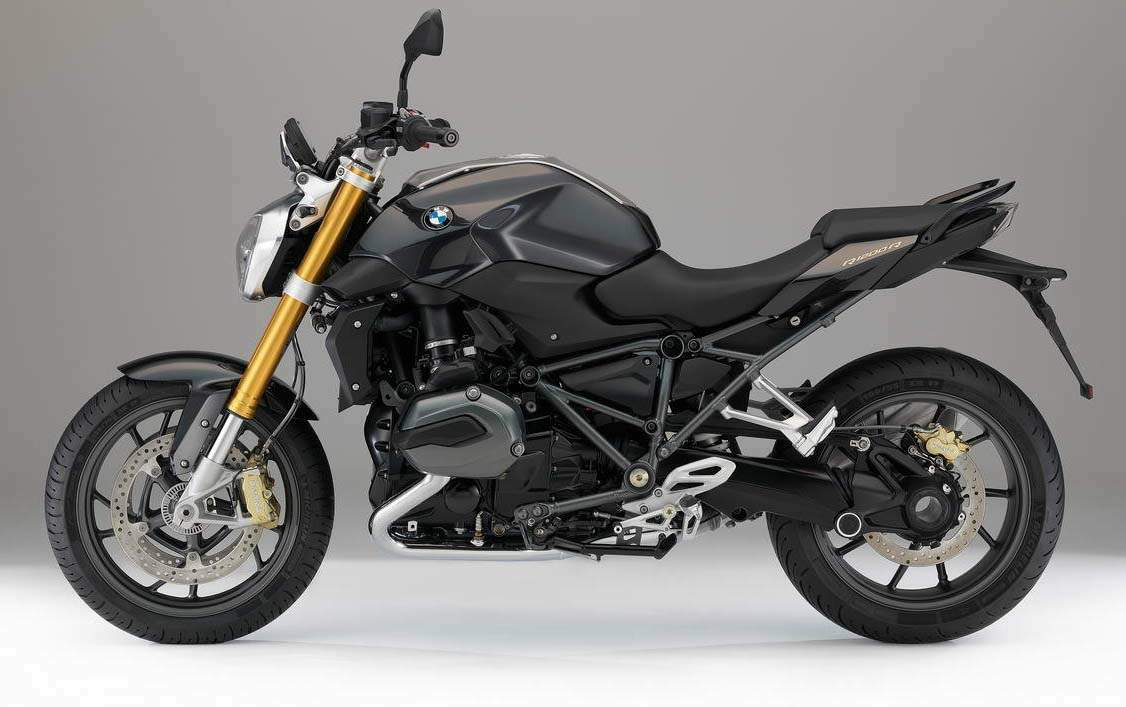

2016 BMW R 1200R LC

Make Model	BMW R 1200R LC
Year	2016
Engine	Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Capacity	1170 cc / 71.4 cub in.
Bore x Stroke	101 x 73 mm
Cooling System	Liquid / Air cooled
Compression Ratio	12.5:1
Induction	Throttle valve mm 52 Carburetion BMS-X Emission control Closed-loop 3-way catalytic converter
Fuel	Premium unleaded (95 RON)
Ignition	BMS-K
Alternator	Three-phase alternator 510 W (nominal power)
Battery	12 V / 11,8 Ah, maintenance-free
Starting	Electric
Electrical system	Alternator three-phase alternator 508 W (nominal power) Battery /Ah 12V/12 maintenance-free Headlight H7W / LED (SA) Starter 0.9 kW
Max Power	92 kW / 125 hp @ 7750 rpm
Max Torque	125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm
Clutch	Oil lubricated clutch, hydraulically operated
Transmission	Constant mesh 6-speed gearbox with helical gear teeth
Final Drive	Shaft
Frame	Two-section frame, front- and bolted on rear frame, load-bearing engine
Front Suspension	Telescopic Upside-Down fork; stanchion diameter 45 mm
Front Wheel Travel	140 mm / 5.5 in
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rear Wheel Travel	140 mm / 5.5 in
Front Brakes	2 x 320 floating discs, 4 piston calipers
Rear Brakes	Single 275mm disc, 2 piston caliper
ABS	BMW Motorrad Integral ABS (part-integral), disengageable
Front Rim	3.50 x 17
Rear Rim	5.50 x 17
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Wheel Castor	125,6 mm / 4.9 in
Steering Head Angle	62.3°
Dimensions	Length 2165 mm / 85.2 in Width 880 mm / 34.6 in (incl. mirrors) Height 1300 mm / 51.1 in (excl. mirrors)
Wheelbase	1515 mm / 59.6 in
Seat Height	760 mm - 820 mm / 29.9 in - 32.2 in
Wet Weight	231 kg / 509.2 lbs
Permitted Total Weight	450 kg / 992 lbs
Fuel Capacity	18 Liters / 5.3 US gal
Reserve	4 Litres / 1.0 US gal

The new R 1200 R marks the status quo in terms of aesthetic appeal, dynamic performance and design. When our developers put forward their visions in the BMW Concept Roadster, this new bike was their greatest source of inspiration. And that's no surprise - after all, the new R 1200 R is a powerful machine that combines comfort, athletic flair and design in an entirely unique way.

Ground-breaking design.
Compact, tight, muscular - the bike's new design sets it clearly apart from its predecessor. The upside down telescopic fork based on the S 1000 RR not only gives this powerhouse a striking appearance but also ensures stability and precise handling. With the sharply drawn lines along the fuel tank and the seamless transition across the seat to the rear, this roadster has a look that perfectly matches the way it rides.

Individual style.
For the first time, the new R 1200 R is available not just in the basic paint finish but also in two additional styles, so as to ensure the design does even more justice to riders' individual preferences: in classic, timeless Cordoba Blue or in athletic Light White with engine spoiler in body color and frame in striking Racing Red or stylish and exclusive Thunder Grey Metallic with a golden fork (only available with the option Dynamic ESA).

Cutting-edge technology.
The R 1200 R is ahead of its time in terms of technology, too. A total of 125 hp provides plenty of power in the new R 1200 R. Together with the riding modes that can be accessed at the press of a button, the optionally available traction control (DTC) puts this power effectively to the asphalt. The rider has everything in view and under control thanks to the redesigned and expanded instrument panel.

Outstanding individual flair.
The range of accessories available for the R 1200 R is especially impressive: tank bag, BMW Navigator V and four different windshields are the perfect preparation for a big tour, while the latest generation of the optional Dynamic ESA further increases riding dynamics in the R 1200 R. Innovative features such as the BMW multi-controller, Shift Assistant Pro and Keyless Ride turn a sports-style roadster into a genuine all-rounder. There are also a range of painstaking details such as the milled hand lever and rider footrests or the crash bar in electropolished stainless steel which strike a perfect balance between functional tuning and visual customization.
