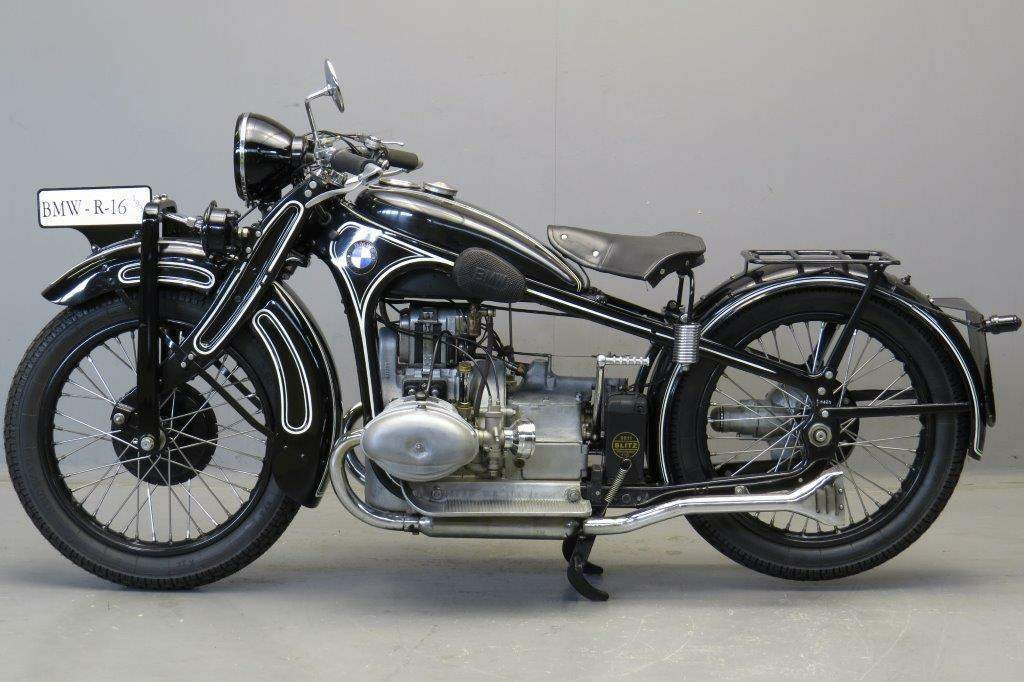

BMW R16

BMW R 16

Make Model	BMW R 16
Year	1929-34
Engine	Four stroke, two cylinder flat twin, OHV, 2 valves per cylinder.
Capacity	735 cc / 44.9 cu in.
Bore x Stroke	63 x 68 mm
Compression Ratio	6.75:1
Cooling System	Air cooled
Induction	1 carburetor Type BMW Spezial ∅26 mm (1932: 2 x carburettor Amal type 6/011 RH & LH)
Ignition	Magneto ignition
Starting	Kick
Generator	Bosch magneto generator D2L or magneto ignition FF2
Clutch	Double plates, dry
Max Power	18.6 kW / 25 hp @ 4000 rpm
Transmission	3 Speed
Final Drive	Shaft
Gear Ratio	1st 2.83 / 2nd 1.55 / 3rd 1.08:1
Frame	Twin loop pressed steel frame
Front Suspension	Plate spring, 9 laminae
Rear Suspension	Rigid, spring loaded saddle
Front Brake	∅200mm Drum
Rear Brakes	Cardan brake
Front Tyre	3.50 x 19"
Rear Tyre	3.50 x 19"
Wet-Weight	165 kg / 364 lbs
Fuel Capacity	14 L / 3.7 US gal
