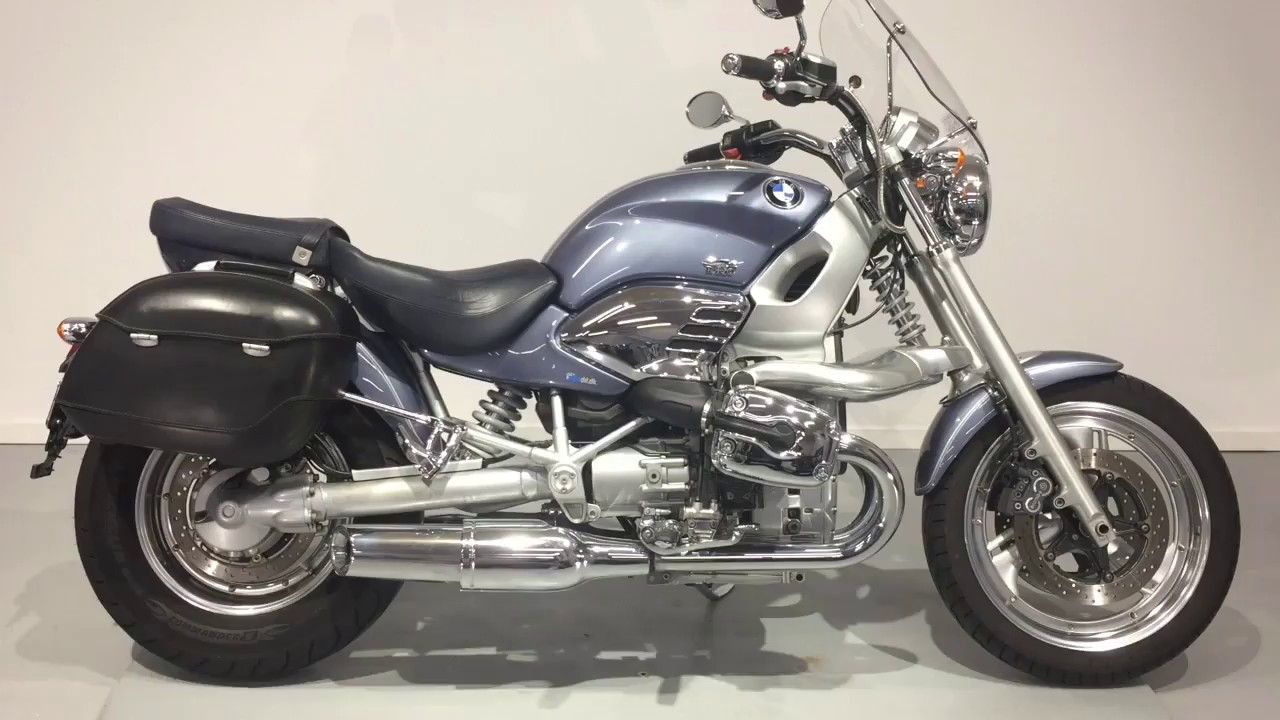

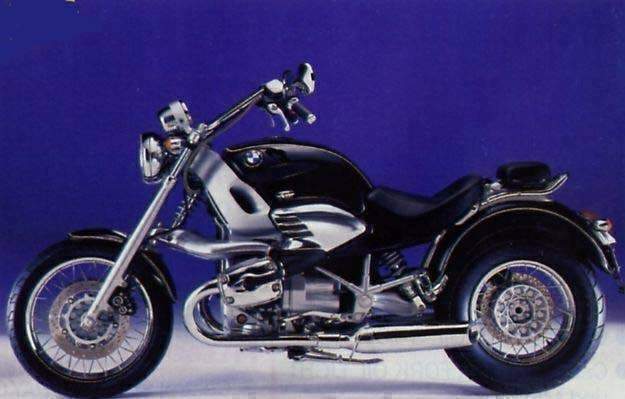

BMW R850C / R 850 C Avantgarde

Make Model	BMW R850C / R 850 C Avantgarde
Year	1997 -
Engine	Four stroke, two-cylinder, horizontally-opposed Boxer engine, 4 valves per cylinder
Capacity	848 cc / 51.7 cu in.
Bore x Stroke	87.5 x 70.5 mm
Cooling System	Air/Oil-cooled
Compression Ratio	10.3:1
Lubrication	Wet sump
Induction	Electronic injection, Bosch Motronic
Ignition	Electronic Bosch Motronic MA 2.4
Generator	700 W three phase alternator
Battery	12V / 19 Ah
Starting	Electric
Max Power	36.4 kW / 50 hp @ 5250 rpm
Max Torque	71 Nm / 7.2 kgf-m / 52 ft lb @ 4750 rpm
Clutch	Single disc dry clutch, hydraulically operated
Transmission	5 Speed
Final Drive	Shaft
Gear Ratio	1st 2.05 / 2nd 1.60 / 3rd 1.27 / 4th 1.04 / 5th 0.80:1
Frame	Three section composite frame consisting of front & rear section, load bearing engine
Front Suspension	Telelever fork with longitudinal control arm and central strut.
Front Wheel Travel	145 mm / 5.6 in
Rear Suspension	Monolever swinging arm
Rear Wheel Travel	100 mm / 3.9 in
Front Brakes	2 x ∅305mm discs, 4 piston calipers
Rear Brakes	Single ∅285mm disc, 2 piston caliper
Front Wheel	BMW cross spoke wheels 2.50 x 18 MT H2
Rear Wheel	BMW cross spoke wheels 4.00 x 15 MT H2
Front Tyre	100/90 - 18
Rear Tyre	170/80 - B15
Steering Head Angle	61.9°
Dimensions	Length 2340 mm / 92.1 in Width 1050 mm / 41.3 in Height 1130 mm / 44.48 in
Wheelbase	1650 mm / 64.9 in
Seat Height	740 mm / 29.1 in
Ground Clearance	173 mm / 6.77 in
Wet-Weight	195 kg / 425 lbs
Fuel Capacity	17 L / 4.4 US gal
