Buell Hammerhead 1190 40th-Annversarsary Edition

Make Model	Buell Hammerhead 1190
Year	2023
Engine	Four stroke, 72° V-Twin
Capacity	1190 cc / 72.6 cu-in
Bore x Stroke	106 x 67.5 mm
Cooling System	Liquid cooled
Compression Ratio	13.4 :1
Induction	Electronic Fuel injection with 2 port injectors and 2 showerhead injectors
Starting	Electric
Exhaust	Primary + Secondary
Max Power	138 kW / 185 hp @ 10600 rpm
Max Torque	137.8 Nm / 101.6 lb-ft @ 8200 rpm
Clutch	Hydraulic actuation, vacuum operated slipper
Transmission	6 Speed
Primary Drive Gear	36/65
Final Drive	520 Z-ring chain, 16/41
Gear Ratio	1^st 2.46 / 2^nd 1.75 / 3^rd 1.38 / 4^th 1.17 / 5^th 1.04 / 6^th 0.96
Frame	Aluminum frame with integral fuel reservoir
Swingarm	Optimized stiffness aluminum
Front Suspension	Showa, inverted big piston front forks
Rear Suspension	Showa, single shock without linkage
Front Brakes	386mm Single perimeter rotor, 8 piston inside-out caliper
Rear Brakes	Single 220mm disc, 2-piston Hayes performance brakes caliper
Front Wheel	17 x 3.5 Aluminum
Rear Wheel	17 x 6.0 Aluminum
Front Tyre	120/70 ZR-17 Pirelli Diablo Rosso Corsa
Rear Tyre	190/55 ZR-17 Pirelli Diablo Rosso Corsa
Rake	22.4°
Trail	96.5 mm / 3.8 in
Lean Angle	48°
Dimensions	Length: 2040 mm / 80.3 in Width: 810 mm / 31.9 in Height: 1087 mm / 42.8 in
Seat Height	826 mm / 32.5 in
Ground Clearance	120 mm / 4.7in
Wet Weight	188 kg / 414 lbs - no fuel
Fuel Capacity	17 Litres / 4.5 US gal

"We're thrilled to introduce the new Freedom paint scheme. Applied directly to the Hammerhead's standard full carbon fiber bodywork, its design commemorates 40 years of Buell's exciting journey and our enthusiasm for the next 40," said Bill Melvin, CEO of Buell. "To us, the Freedom Edition represents our unwavering commitment to our heritage, our fans, and the freedom that comes with riding a Buell."

The Buell Hammerhead 1190 boasts 185 horsepower, weighs 419 lbs., and delivers 102 foot-lbs. of torque.

The first 40 Freedom Edition bikes will also feature a special four-year warranty and the underside of the bodywork will be autographed by the Buell factory family - Team Buell.

"Our fans have been requesting a red, white, and blue color scheme for a long, long time. We listened. And we're proud to deliver a design that truly reflects the fiercely independent spirit shared by both Buell and this great country."

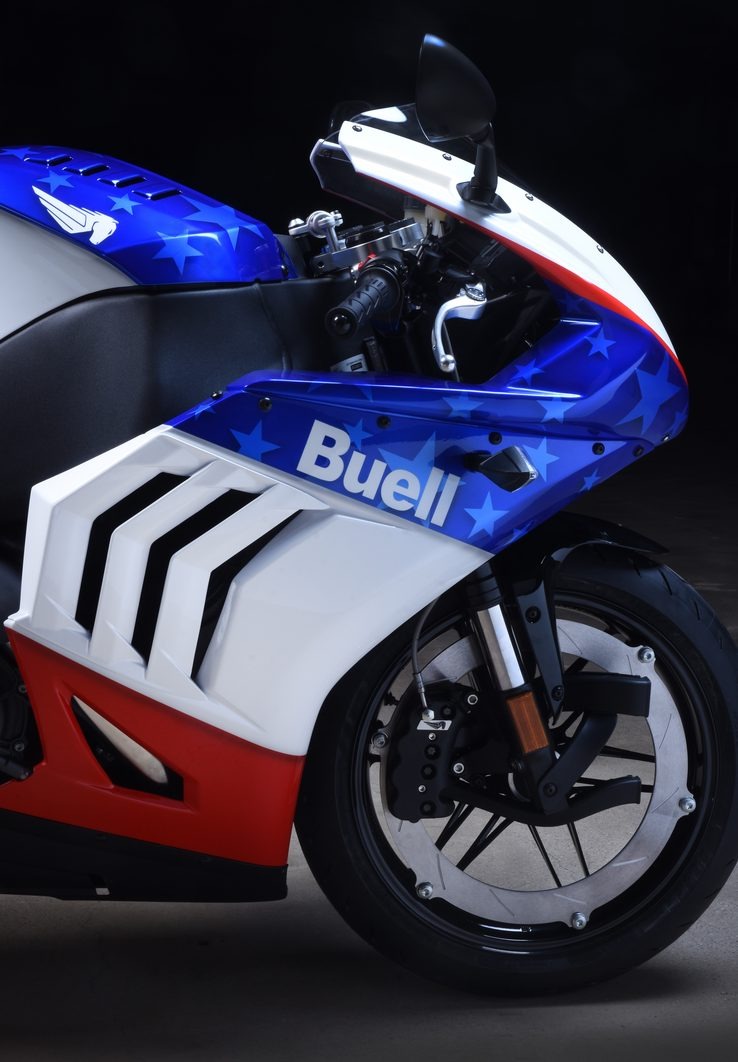

Its carbon fiber bodywork, wrapped in red, white, and blue all around, withy star graphics into the blue paint. Also part of the special edition is a set of new pillion and rider seat covers. These feature contrast red stitching and a red company logo to complement the paint job.

So you get a 1,190cc, liquid-cooled, V-twin engine that produces 185 horsepower (at 10,600 RPM) and 101.6 pound-feet (at 8,200 RPM). The power reaches the wheel via a six-speed transmission, equipped with a slipper clutch. Lot'sof power which complimented by the bike’s low 419-pound dry weight.

Buell has built the sports bike around an aluminum chassis and suspended it on Showa suspension (Big Piston upside-down forks and monoshock). The wheels are 17-inch aluminum units that house Buell’s iconic 386cc perimeter disc and eight-piston caliper up top. The rear disc is normal with a 220 mm diameter, plus a two-piston Hayes caliper.
