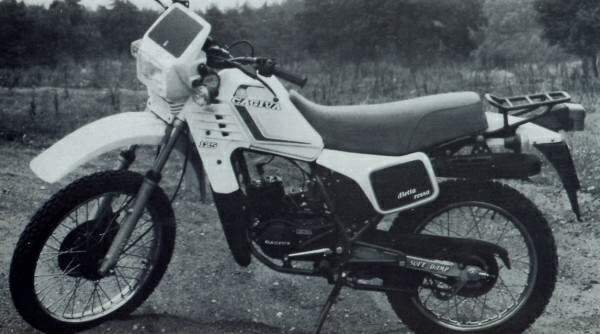

Cagiva SXT 125 Ala Rossa

.

Make Model

Cagiva SXT 125 Ala Rossa

Year

1982 - 83

Engine

Two stroke, single cylinder

Capacity

123 cc / 7.6 cu-in
Bore x Stroke 56.0 x 50 mm
Cooling System Air cooled
Compression Ratio 14.8;1
Lubrication Fuel and oil mixture

Induction

D24mm  ell'Orto VHB 27 AD

Ignition


Starting Primary kick

Max Power

17 hp / 12.4 kW @ 7000 rpm
Clutch Wet, multi plate

Transmission

5 Speed
Final Drive Chain

Front Suspension

Pivoted fork

Rear Suspension

Soft damp single shock

Front Brakes

Single 240mm disc

Rear Brakes

Drum

Front Tyre

2.75 -21

Rear Tyre

3.50 -18
Wheelbase 1359 mm 53.5 in
Seat Height 749 mm / 29.5 in

Dry Weight

112 kg / 247 lbs

Fuel Capacity

9 Litres / 2.3 US gal
.
