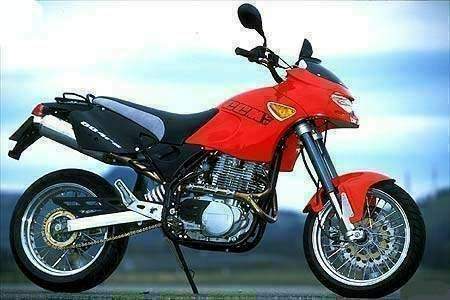

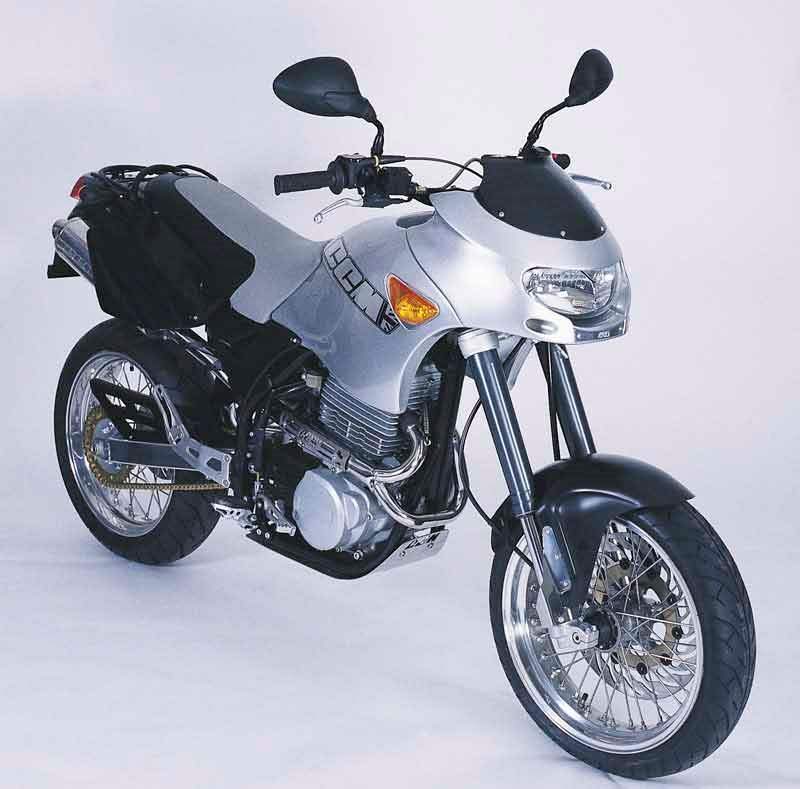

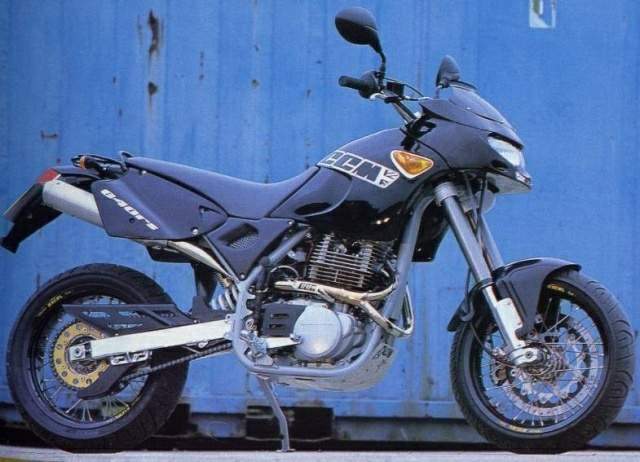

CCM 604 RS Roadster

.

Make Model.

CCM 604 RS Roadster

Year

2000

Engine

Single cylinder, four-stroke

Capacity

598 cc / 36.5 cu in
Bore x Stroke 97 x 81 mm
Compression Ratio 10.0:1
Cooling System Air cooled

Induction

VHSB 30 carburetor

Ignition

CDI

Starting

Electric

Max Power

39.5 kW / 53 hp @ 7500 rpm

Max Torque

52.5 Nm / 5.4 kgf-m / 38.7 ft.lb @ 6000 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Ø43 mm Conventional forks, preload and compression adjustable.

Rear Suspension

Piggy-back shock,  preload, rebound and compression adjustable.

Front Brakes

Single Ø320 mm disc, 4 piston caliper

Rear Brakes

Single Ø220 mm disc, 2 piston caliper

Wheelbase

1520 mm / 59.8 in

Seat Height

860 mm / 33.9 in

Dry Weight

132 kg / 291 lbs

Fuel Capacity

13.6 L / 3.6 US gal
