CCM Classic Tracker

.

Make Model

CCM Classic Tracker

Year

2022

Engine

Four-stroke, single cylinder

Capacity

600 cc / 36.6 cu-in

Bore x Stroke

100 x 76.5 mm

Compression Ratio

12.0:1

Cooling System

Liquid cooled

Exhaust

Twin single side high level exhausts

Induction

Fuel injection, Mikuni D45

Starting

Electric

Max Power

55 hp / 40kW

Max Torque

58 Nm / 42.7 lb-ft @ 5500 rpm

Clutch

Multiple-disc, wet, hydraulic control

Transmission

6 Speed

Final Drive

Chain

Frame

High strength steel, hand tig welded

Front Suspension

Telescopic forks, adjustable

Front Wheel Travel

120 mm / 4.7 in

Rear Suspension

Single shock, adjustable

Rear Wheel Travel

120 mm / 4.7 in

Front Brakes

Single 320mm disc

Rear Brakes

Single 240mm disc

Front Tyre

19 in road-legal Maxxis flattrack tyres

Rear Tyre

19 in road-legal Maxxis flattrack tyres

Rake

26°

Trail

118 mm / 4.6 in

Dimensions

Length  2145 mm / 84.4 in
Height   1130 mm / 44.8 in

Wheelbase

1455 mm / 57.2 in

Seat Height

830 mm / 32.6 in

Dry Weight

145 kg / 319.6 lbs

Fuel Capacity

14 Litres / 3.7 US gal
.

Street Wise: Track Smart

The Classic Tracker reimagines the aggressive profile of the Street Tracker with a purposefully minimalist new style. Equally at home on your favourite b-road or creating dust trails on your local short circuit, the Classic Tracker attracts equal attention either in motion or simply standing still.

Colourways

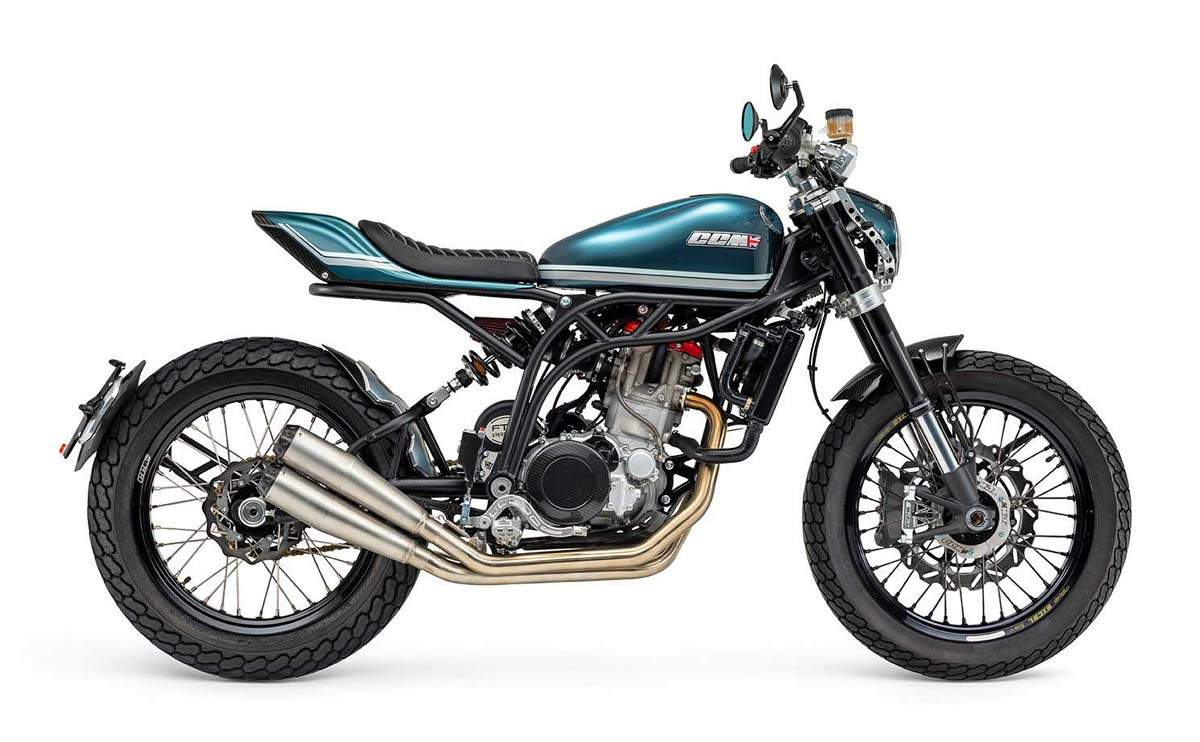

Available in the petrol blue colour finish or opt for the Infinity Package in a striking Liquid Mercury finish for that authentic look.

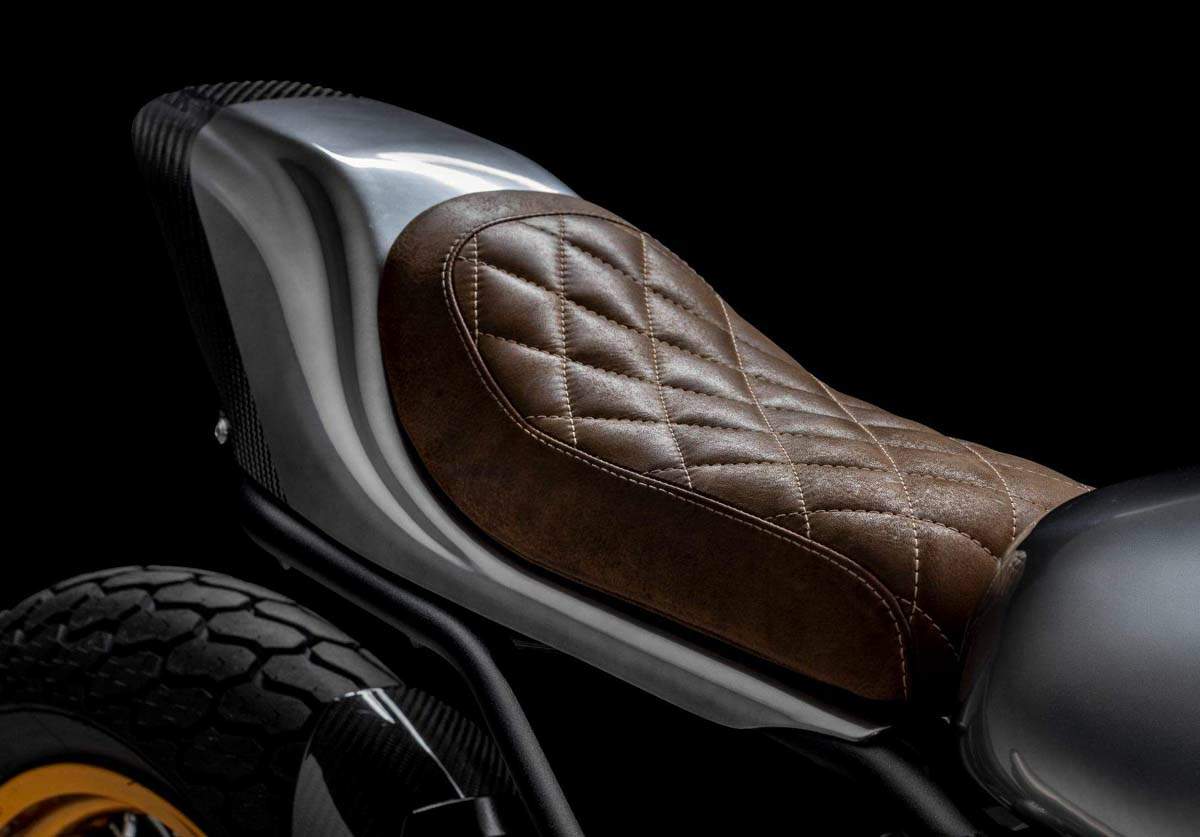

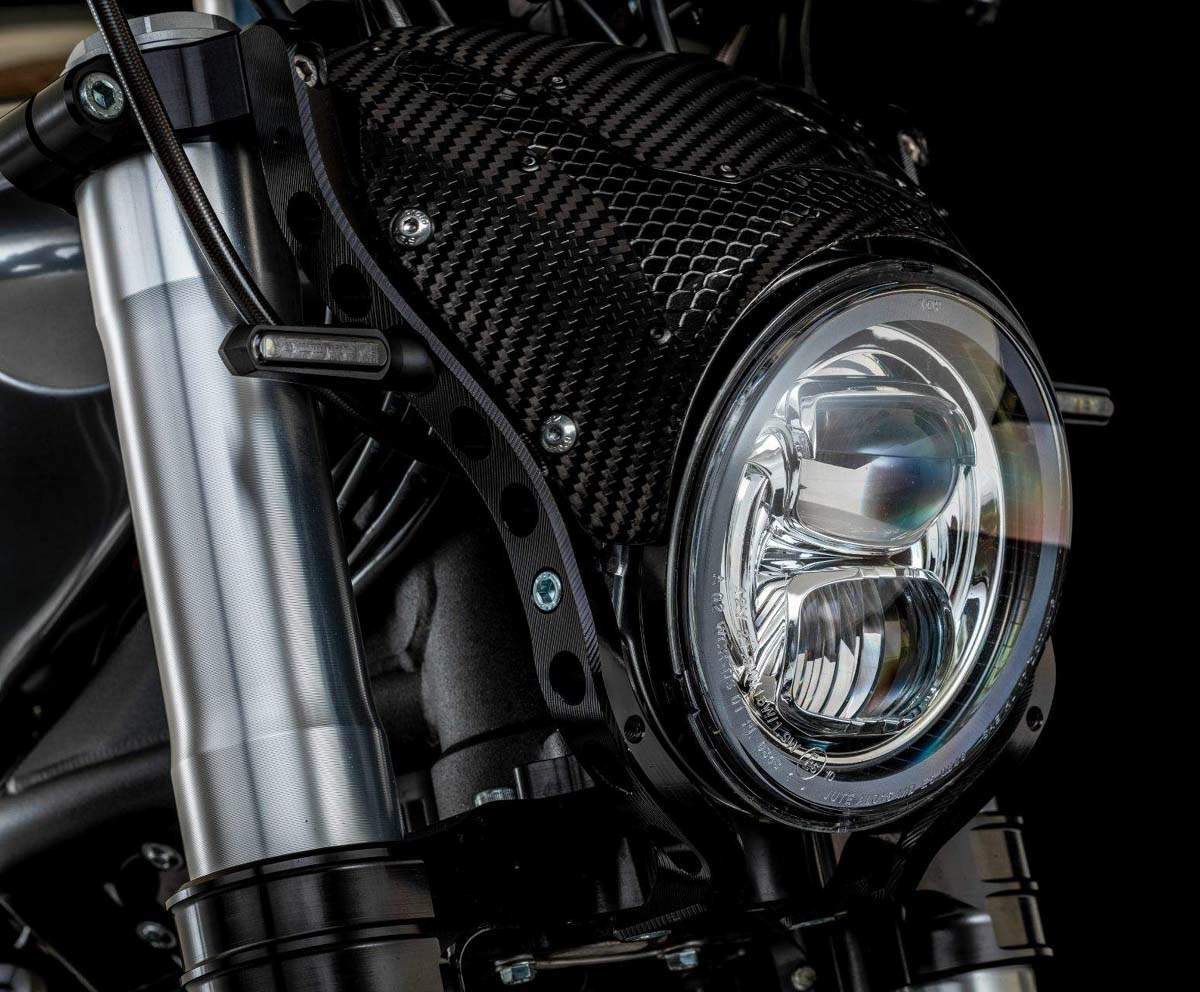

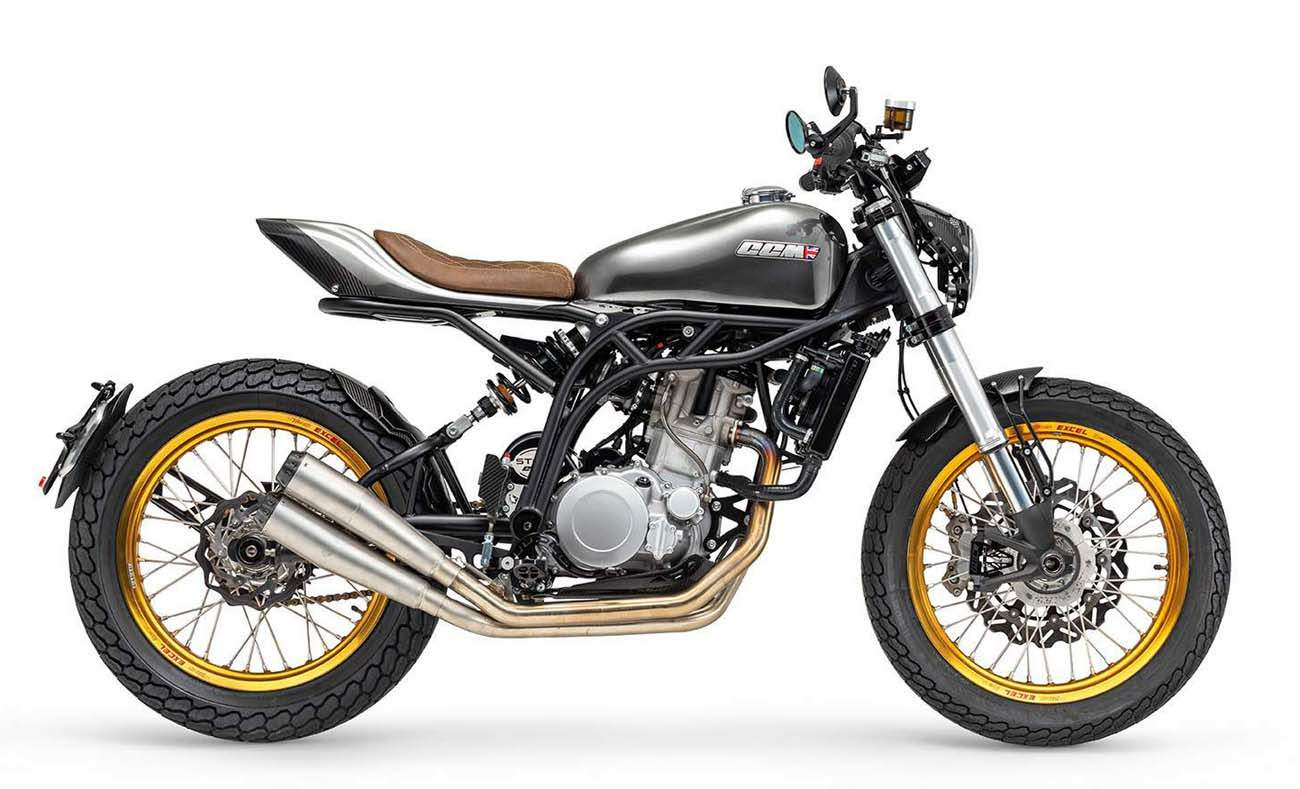

The Infinity Package variant of the Classic Tracker that’s also comes with gold spoke wheels, carbon fiber headlight cover, carbon fiber fenders, and a brown seat.

Powering the Classic Tracker is a 600cc, single-cylinder engine that produces 42.78 lb-ft (58Nm). This, coupled with the bike’s light 319-pound weight, gives it a pretty commendable power-to-weight ratio.

Besides, the engine sits in a Tig-welded chassis accompanied by Marzocchi USD forks and a YSS monoshock, both adjustable.  The Classic Tracker comes with 19-inch spoke wheels shod with flat track-type tires.

Key Features

- All new twin conical exhaust system with carbon end cap developed for optimum performance
- J Juan Black Edition brakes with 4-Piston radial Brake Caliper
- Scrambler-style mid-position handlebars

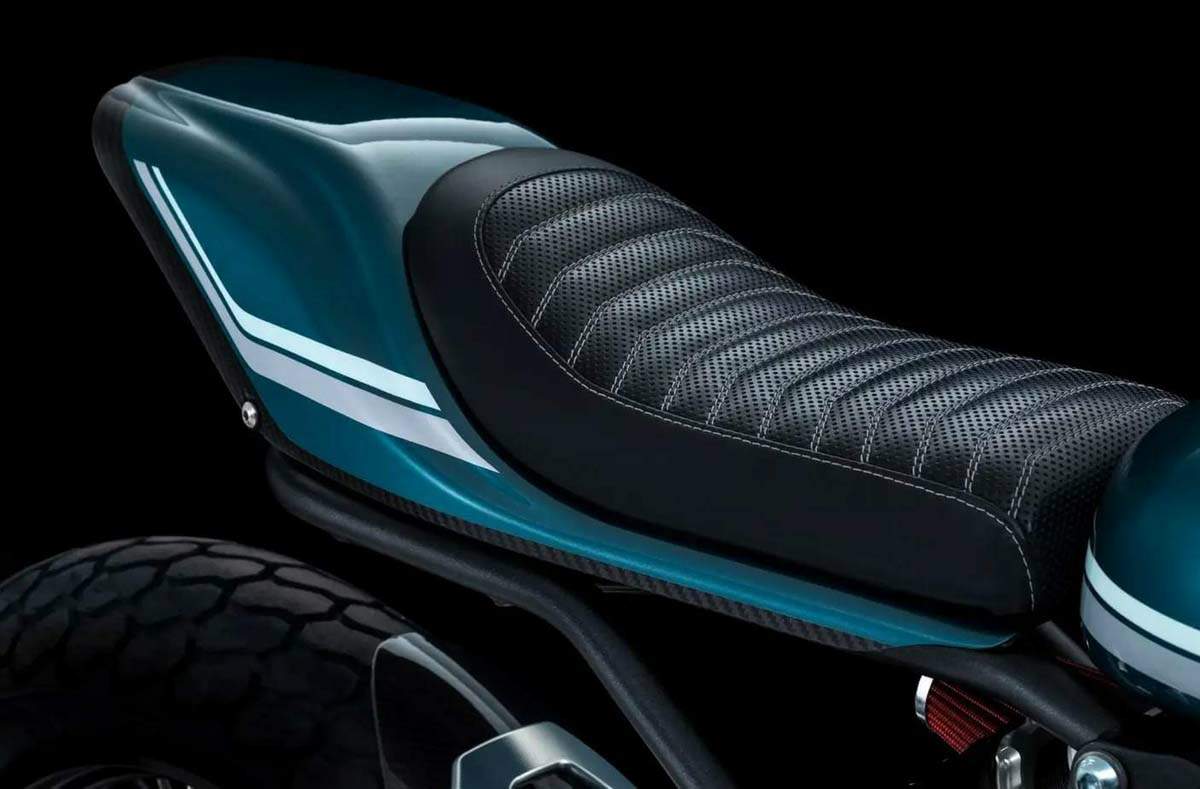

- New semi-perforated double-ribbed saddle
- Black anodised ancillary components & black Forks
- Radiator guard as standard in titanium grey
- New multi-function LED front & rear Lights
- Magura hydraulic clutch & Oberon slave cylinder
- Black coil spring with revised suspension tune
- 19" Black laced Haan wheels
- Mitas road legal flat-track tyres
- Available in Petrol Blue with black wheels or optional Chrome bodywork with gold wheels

Classic Pedigree

1971 saw the arrival of the landmark motorcycle movie “On Any Sunday” which brought one of the oldest forms of motorsport to the attention of the masses. CCM would go on to contest the British and European Flat Track championships and, with Marco Belli at the helm, would take honours in both competitions. The new Classic Tracker takes just a little more than just pure inspiration from that and Stephane Mezard’s 2021 French flat track championship-winning machine, both bikes sharing engine, chassis and key components.

Source: CCM Motorcycles
