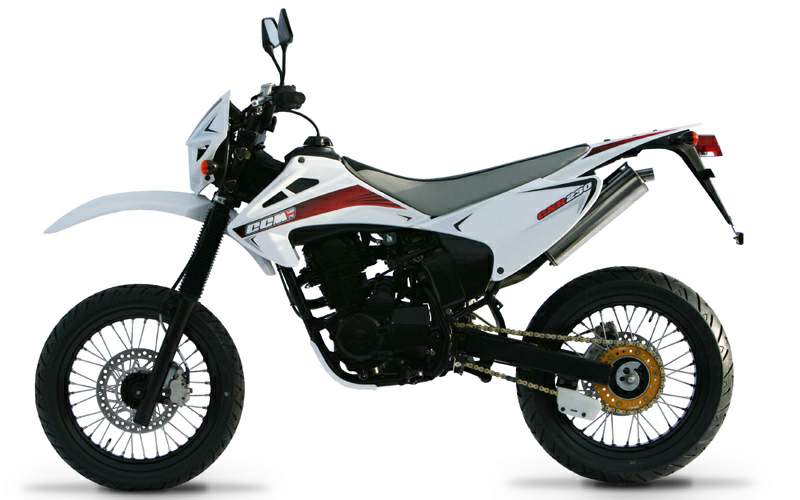

CCM C-XR 230S

.

Make Model.

CCM C-XR 230S

Year

2009 - 10

Engine

Four stroke, single cylinder, SOHC

Capacity

230 cc / 14.0 cu in
Bore x Stroke 67 x 65 mm
Compression Ratio 9.2:1
Cooling System Air and oil

Ignition

Electronic ignition CDI

Starting

Electric

Max Power

13.1 kW / 18 hp @ 8500 rpm

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Ø40 mm Telescopic forks

Rear Suspension

Single shock - adjustable preload

Front Brakes

Single disc

Rear Brakes

Single disc

Front Tyre

120/60-17

Rear Tyre

150/60-17

Dry Weight

118 kg / 260 lbs

Fuel Capacity

8.8 L / 2.3 US gal

The updated CXR230 is now Euro III emissions homologated and boasts a new engine with a single overhead cam, other enhancements include a striking white colour scheme which is sure to make this already popular model even more attractive.

As before the CXR230 comes in trail specification as standard with supermoto wheels being offered as an optional extra.
