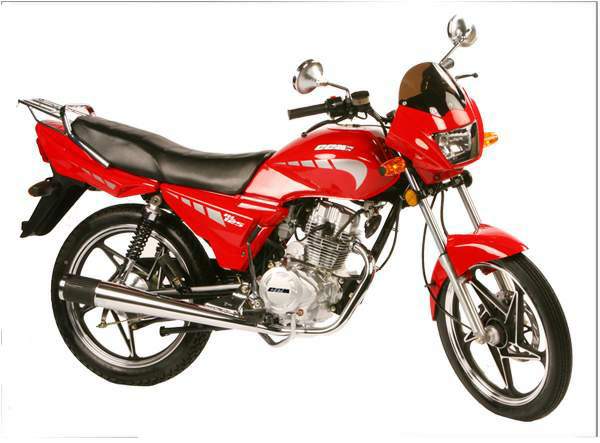

CCM RL 125

.

Make Model.

CCM RL 125

Year

2008

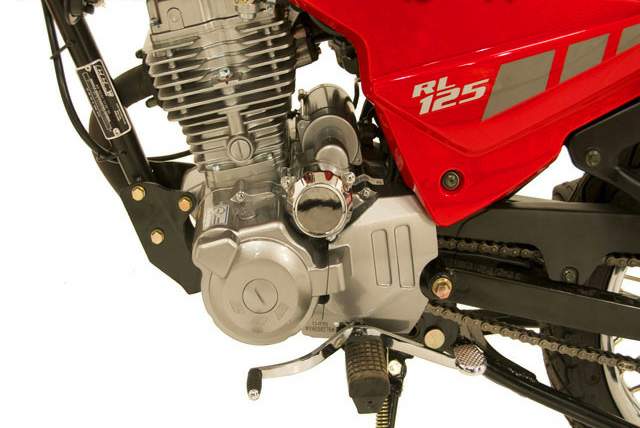

Engine

Single cylinder, four-stroke

Capacity

124 cc / 7.6 cu in
Bore x Stroke 56.5 x 49.5 mm
Compression Ratio 9.0:1
Cooling System Air cooled
Lubrication System Wet sump

Induction

Carburetor

Ignition

CDI

Starting

Electric

Max Power

5.6 kW / 7.5 hp

Transmission

5 Speed

Final Drive

Chain

Front Suspension

Telescopic forks

Rear Suspension

Single shock with adjustable preload

Front Brakes

Single disc

Rear Brakes

Single disc
Wheelbase 1390 mm / 54.7"
Ground Clearance 220 mm / 8.7"
Seat Height 800 mm / 31.5"

Dry Weight

126 kg / 278 lbs

Fuel Capacity

12 L / 3.2 US gal
