Ducati 125 Sport

Make Model	Ducati 125 Sport
Year	1961 - 64

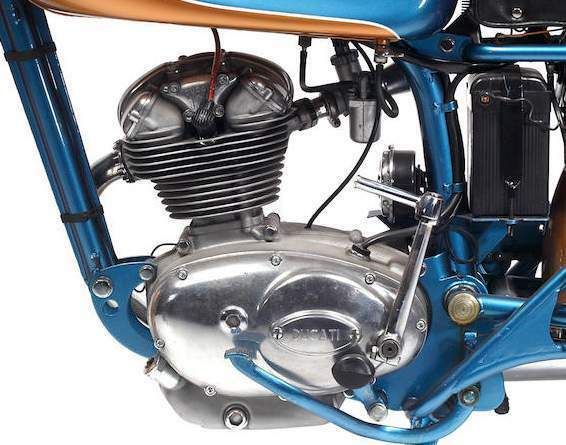

Engine	Four stroke, single-cylinder, OHC, bevel gear driven
Capacity	124.4 cc / 7.6 cu in
Bore x Stroke	55.2 x 52 mm
Compression Ratio	8.0:1
Cooling System	Air cooled
Lubrication System	Forced oil sump
Induction	Dell'Orto UB20BS carburetor
Ignition	Battery and coil, 6V 40W generator
Spark Plug	Marelli CW260N
Battery	SAFA 3L3, 13.5 Ah
Starting	Kick
Max Power	7.5 kW / 10 hp @ 8500 rpm
Primary Drive Ratio	3.00:1
Transmission	4 Speed
Gear Ratios	1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1
Clutch	Wet, multi-plate
Final Drive	Chain
Final Drive Ratio	2.750:1
Frame	Single tubular downpipe cradle
Front Suspension	Hydraulically damped telescopic forks, Marzocci
Rear Suspension	Swingarm, dual shocks, 3-way adjustable
Front Brakes	Drum
Rear Brakes	Drum
Front Tyre	2.50 - 17 CEAT
Rear Tyre	2.75 - 17 CEAT
Dimensions	Length:1910 mm / 72.2 in Width: 580 mm / 22.8 in Height: 920 mm / 36.2 in
Wheelbase	1320 mm / 52.0 in in
Dry Weight	100.5 kg / 221 lbs
Fuel Capacity	16 L / 4.2 US gal / 3.5 Imp gal
Top Speed	112 km/h / 69 mph

In 1961 Ducati expanded the production line and produces the quiet version of the 125 sport, the 125 TS, with less features (being less "touched "). Its camshaft was less "racing", making the bike run at a lower rpm and the valves also differed and it had a lower compression ratio. It also appears with the model 175 TS.

Ducatis, known for its high reliability and good performance that turned the world to take notice and with Ricardo Fargas and José M ª Arenas participated with this bike in the rally of 1000 km, it was the best selling model in Spain.
