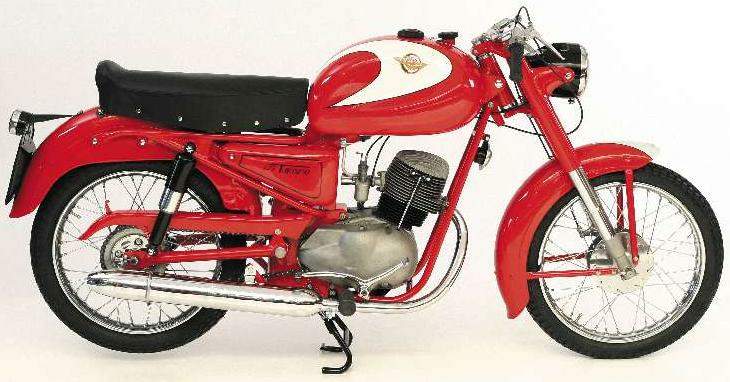

Ducati 125 Tourismo Speciale

.

Make Model

Ducati 125 Turismo Speciale

Year

1958 - 65

Engine

Four stroke, single-cylinder, OHC, bevel gear driven

Capacity

124.4 cc / 7.6 cu in
Bore x Stroke 55.2 x 52 mm
Compression Ratio 7.0:1
Cooling System Air cooled
Lubrication System Forced oil sump

Induction

Dell'Orto UB18BS or ME18BS carburetor

Ignition

Battery and coil, 6V 40W generator

Spark Plug

Marelli CW225A

Battery

SAFA 3L3, 13.5 Ah

Starting

Kick

Max Power

5.2 kW / 7 hp @ 7000 rpm

Primary Drive Ratio

3.000:1

Transmission

4 Speed

Gear Ratios

1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1

Clutch

Wet, multi-plate

Final Drive

Chain

Final Drive Ratio

2.870:1

Frame

Single tubular downpipe cradle

Front Suspension

Hydraulically damped telescopic forks, Marzocci

Rear Suspension

Swingarm, dual shocks, 3-way adjustable

Front Brakes

Drum, 158 mm

Rear Brakes

Drum, 136 mm

Front Tyre

2.50 - 17 CEAT

Rear Tyre

2.75 - 17 CEAT

Dimensions

Length:1890 mm / 74.4 in
Width:    680 mm / 26.8 in
Height:  940 mm / 37.0 in

Wheelbase

1310 mm / 52.0 in in

Seat Height

760 mm / 29.9 in

Dry Weight

98.5 kg / 217 lbs

Fuel Capacity

16 L / 4.2 US gal / 3.5 Imp gal

Top Speed

90 km/h / 56 mph
