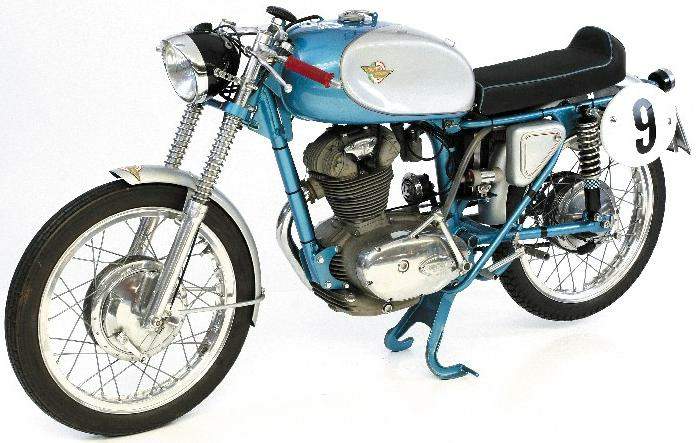

Ducati 175 Gran Sport

Make Model	Ducati 175 Gran Sport
Year	1957 - 62
Engine	Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
Capacity	175.4 cc / 10.7 cu in
Bore x Stroke	62 x 57.8 mm
Compression Ratio	8.5:1
Cooling System	Air cooled
Induction	Dell'Orto SS1 22.5C carburetor
Ignition	Battery / coil
Starting	Kick
Max Power	11.9 kW / 16 hp @ 9000 rpm
Clutch	Multi wet plate, wet
Transmission	4 Speed
Final Drive	Chain
Frame	Single cradle tubular frame
Front Suspension	Hydraulic telescopic fork
Rear Suspension	Swingarm, dual shocks
Front Brakes	Drum, full aluminium
Rear Brakes	Drum, full aluminium
Front Tyre	2.50 -18
Rear Tyre	2.75 -18
Dry Weight	103 kg / 227 lbs
Fuel Capacity	17 L / 4.5 US gal / 3.7 Imp gal
Top Speed	155 km/h / 96 mph

The 175 was the first Ducati production machine to be offered with the single overhead cam, bevel driven engine when it was launched at the 1956 Milan show.

The engine was a direct descendent of Taglioni’s 98cc Gran Sport Marianna. It was offered as a ‘S’ Sport, ‘T’ Turismo, Americano, Formula 3 and Motocross. But the biggest seller was the Sport which was capable of 84mph and could achieve almost 100mpg.

This little racer boasted a whip-free chassis, a dry weight of just 103kg and large full aluminium brake hubs. These features combined ensured that the 175 handled and stopped better than anything else in its class. British importers, Kings of Manchester, offered a tuned version of the Sport known as the Silverstone Super. This was capable of 95mph.
